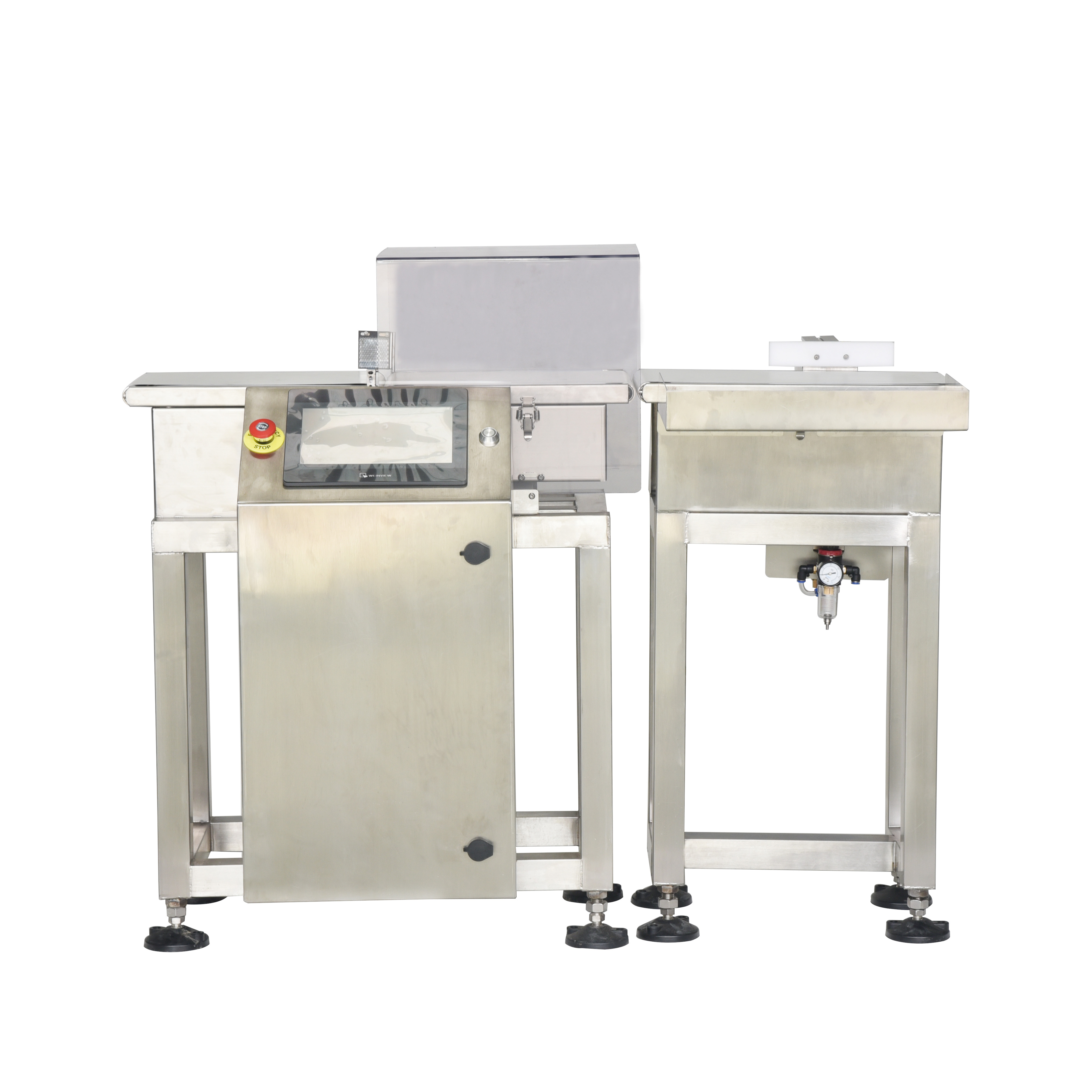

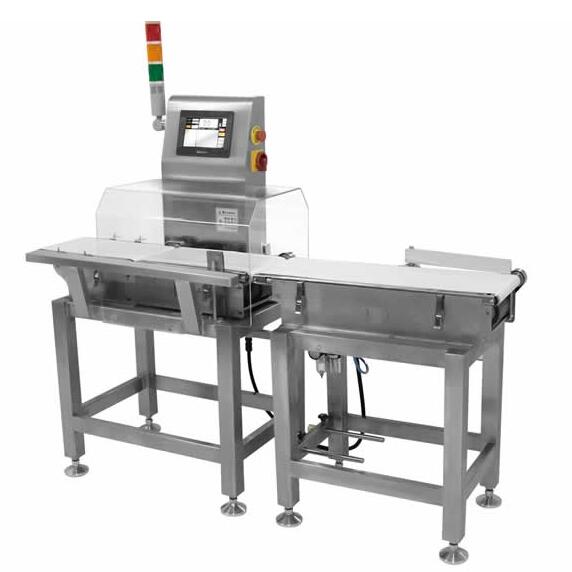

1. Strong versatility: the standardized structure of the whole machine and the standardized human-machine interface can complete the weighing of various materials.

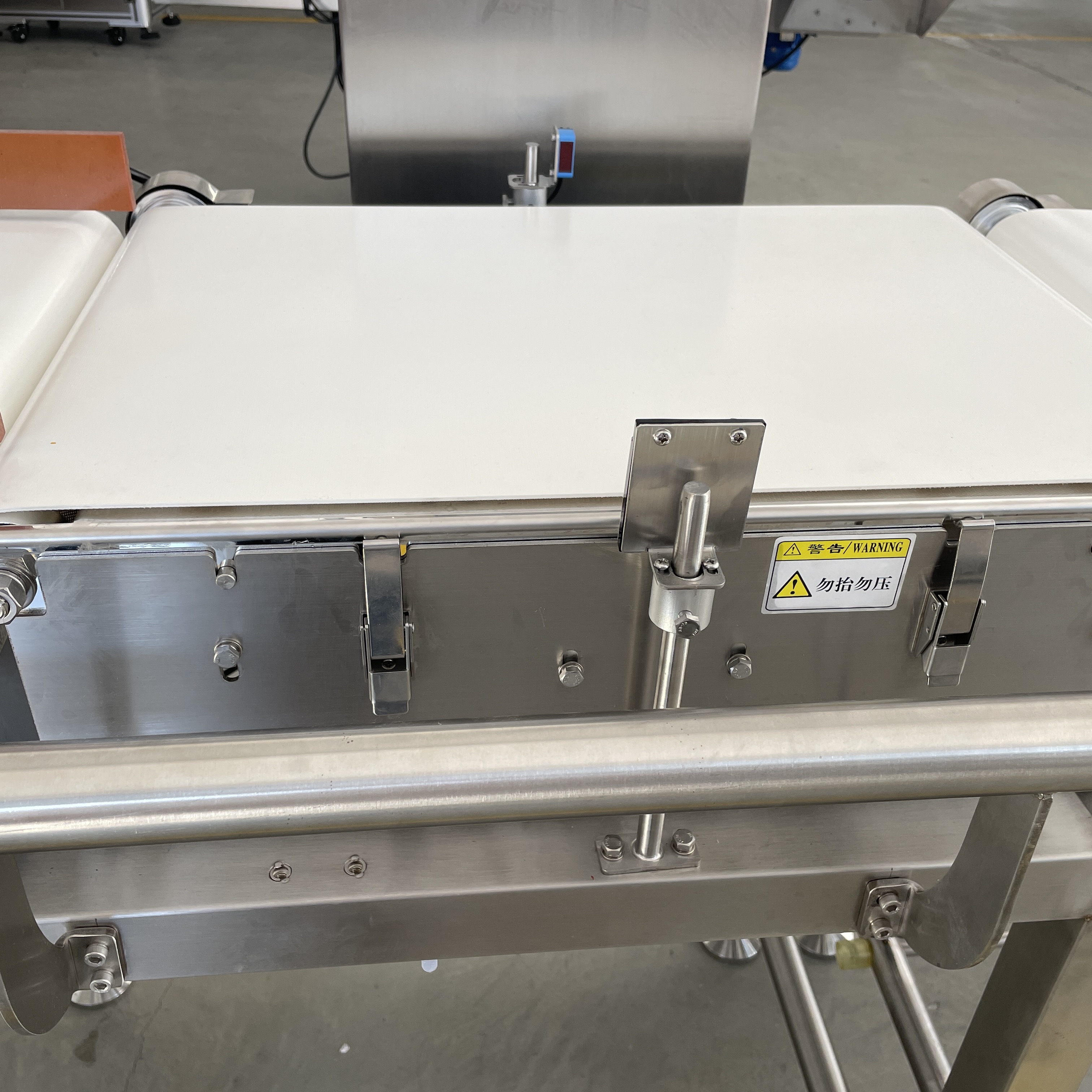

2. Simple operation: using color human-machine interface, fully intelligent and user-friendly design; the conveyor belt is easy to disassemble, install and maintain, and easy to clean.

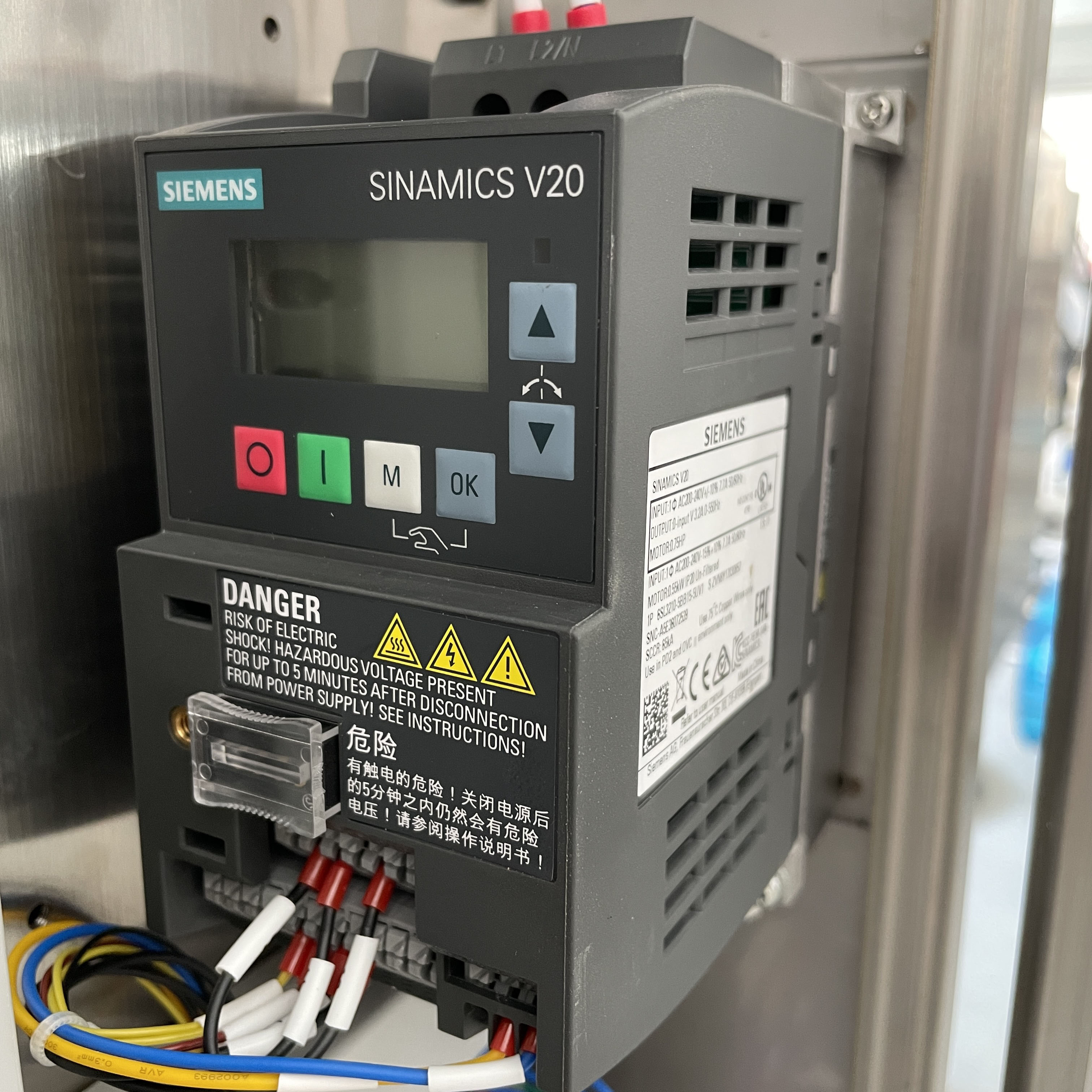

3. Adjustable speed: the motor is controlled by frequency conversion, and the speed can be adjusted as required.
4. High-speed and high-precision: using high-precision digital sensors, fast sampling speed and high precision.
5. Zero tracking: can be manually or automatically cleared, and dynamic zero tracking.
2. Simple operation: using color human-machine interface, fully intelligent and user-friendly design; the conveyor belt is easy to disassemble, install and maintain, and easy to clean.
3. Adjustable speed: the motor is controlled by frequency conversion, and the speed can be adjusted as required.
4. High-speed and high-precision: using high-precision digital sensors, fast sampling speed and high precision.
5. Zero tracking: can be manually or automatically cleared, and dynamic zero tracking.
6. Report function: Built-in report statistics, the report can be generated in EXCEL format, and can automatically generate a variety of real-time data reports.The external USB interface can be plugged into a U disk to export data in real time, and support the production status at any time; it provides the factory parameter setting recovery function, and can store a variety of formulas, and it is convenient to change product specifications.
7. Interface function: reserved standard interface, convenient for data management, can communicate with PC and other smart devices.
8. Self-learning: After creating new product formula information, there is no need to set parameters. Use the self-learning function to automatically set equipment suitable parameters, and store them to facilitate the next time you switch products. (2000 parameter storage entries, more can be added).
9. Three operating modes:
a. Dynamic mode: normal pipeline mode;
b. Static mode: After the material enters the weighing platform, the weighing platform stops running, and weighs to improve accuracy, suitable for products with less than 20 passes per minute;
c. Energy-saving mode: (optional) On the basis of modes a and b, the energy-saving mode can be turned on, and the shutdown period of no material passing is set. When the equipment is idling, it will automatically stop after a long period of time, and then automatically start when there is material passing.

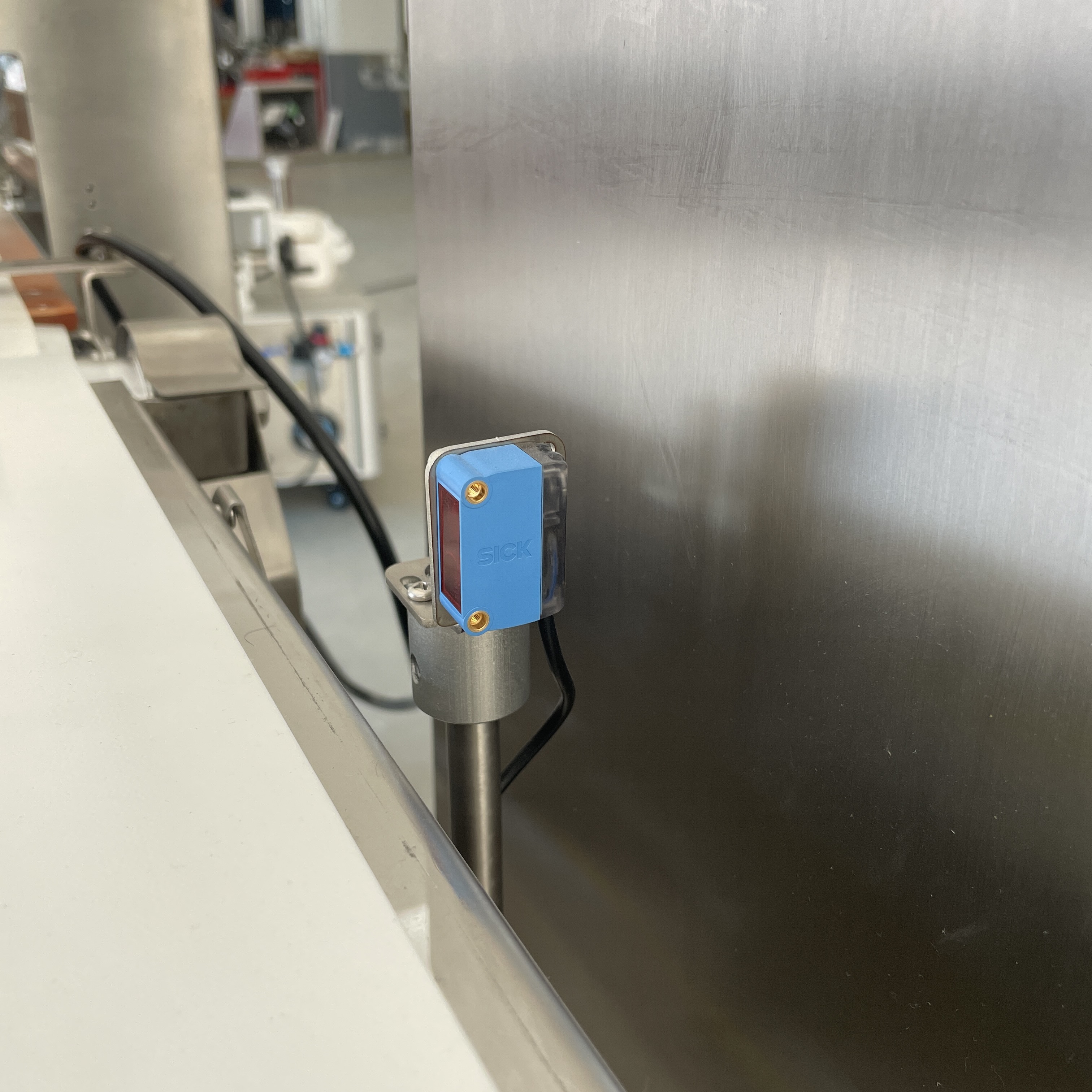

10. Fault self-detection: self-detection: whether the motor, frequency converter, AD, sensor and photo electricity are normal, the cause of the fault, and the pilot detection of the cylinder, solid state relay, and solenoid valve. It is convenient for non-professionals to check and repair.

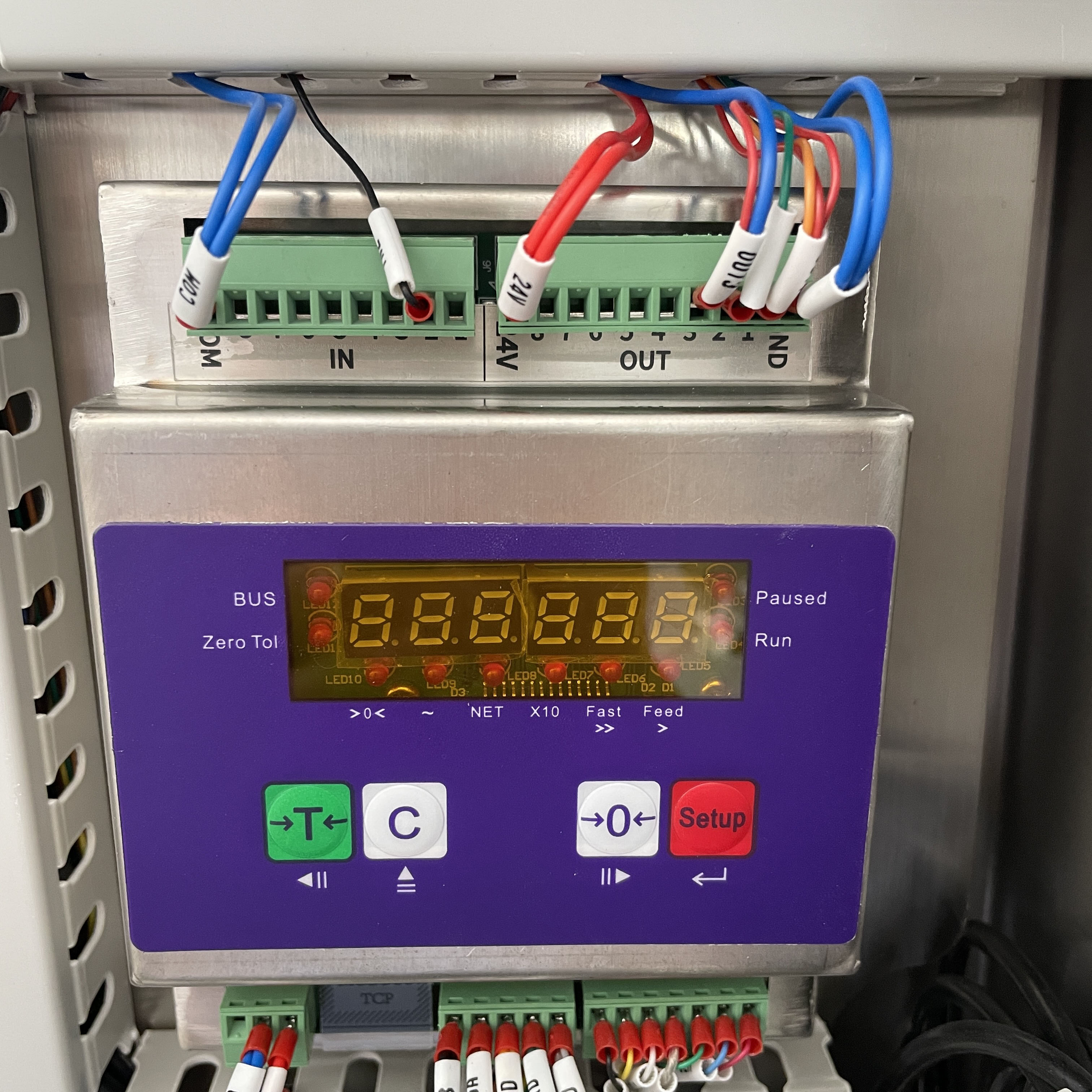

11. Peripheral equipment communication: standard RS-485 and RS-232 dual communication port output. a. The RS-485 interface is MODBUS, RTU standard protocol, but the write address (57600bps, 8, N, 1, and the slave station number is 3) can not be modified. b. (Optional) The RS-232 interface is a self-defined protocol, and the content of the command can be set by yourself. (57600bps, 8, N, 1) can be modified.
12. External printers or other communicable equipment can also be connected with front and rear packaging machines and production equipment to feed back the weighing results so that the formula parameters can be automatically modified.
