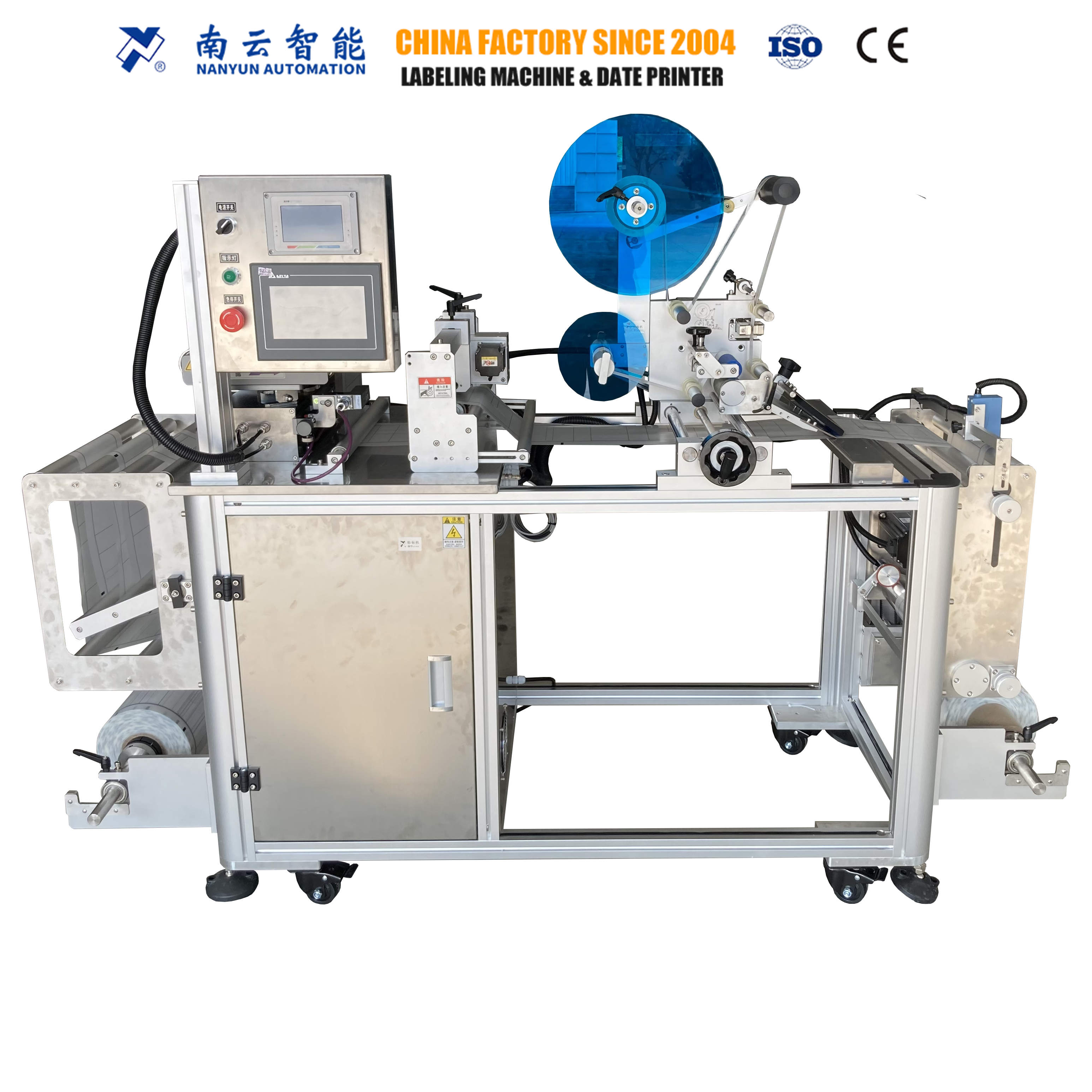

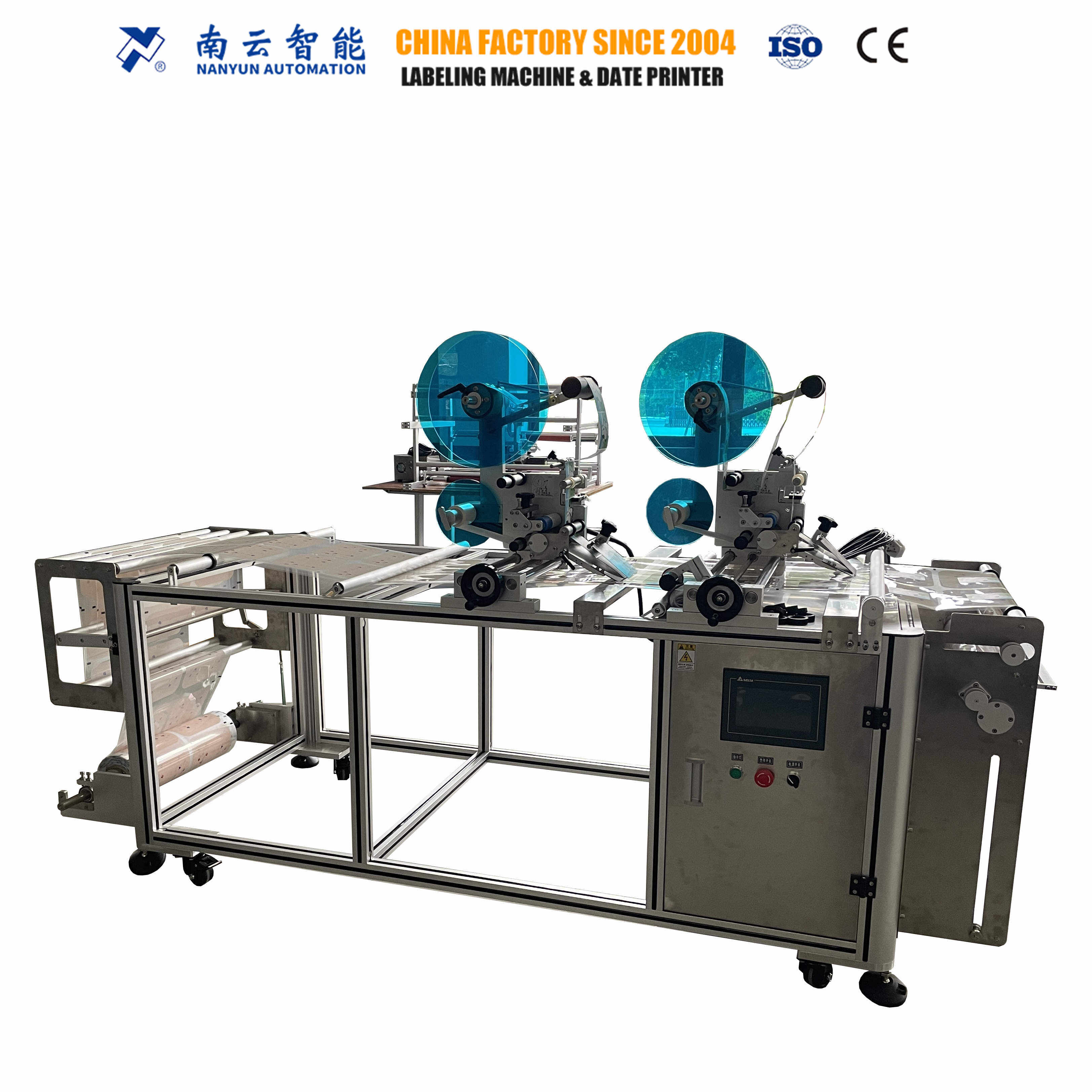

NY-816J Film Roll Winding/Rewinding Machine

Quick Details
Product Code:
NY-816J
OEM:
Available
Sample:
Available
Port:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
Payment:
PayPal,VISA,MasterCard,Western Union,T/T,Other
Place of Origin:
China
Shipping:
Support Express · Sea freight · Land freight · Air freight
Supply Ability:
200 unit per week
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

NY-816J Film Roll Winding/Rewinding Machine

Download User Guide  |  Video On Youtube  |  Request A Quote  |  Shop now on Alibaba

»  Description

NY-816J is carefully designed for film rewinding packaging lines for top labeling as well as for printing the various details such as the batch number, price, date, etc. on the labels with the help of the latest ink jet/laser coding system. This machine is able to date print and hole punching in the same process. It even has an in-built film correction mechanism and label sensor for assuring maximum stability and positioning of the film and labels.

»  Application

- Clear Label Sensor for Sensing Transparent Film Labels

- Sticker Roll, Filter Paper Roll, Electronic Mark Paper Roll

- Print Units ( Ink jet, Laser) & NY-809A Hole Puncher (Optional)

- Can Incorporate With Film Correction Mechanism

♦ Example/Samples: Blank Roll Film



»  Specifications:

Technical Data

NY-816J

Label Accuracy

±1mm (excluding product and label error)

Label Speed

21meters/min (related to product and label size).

Label Width

10 mm to 110/150/180 mm

Product Size (L x W x H)

Film or pouch size (can customize)

Inside reel Ø

76mm

Outside reel Ø

300 mm

Film Width

250/350/400mm (can customize)

Conveyor Length

2 meters

Working Height

850 mm (+/-30 mm) (can customize)

Power Supply

220V, 50/60 Hz, Single Phase, 0.28kw

Machine Size (L x W x H)

2060 x 1070x 1570mm

Weight

Approx 250kgs

Note: If machine are customized, the above data may vary.

»  Features

 Stepper motors for fast and accurate labeling.

✔ PLC+HMI Touch screen control system with job memory.

 Photo eye sensors for label gap/container detection.

 Easy adjusting hand wheels for quick setup and easy changeover.

 Production preset function, production run counter, extremely efficient.

 Main body is made of SUS304 stainless steel and aluminum alloy.

 CE Approved, meet the strict ISO 9001 quality control procedures.

 Label head dispenses labels with widths of up to 110, 180 or 200 mm.

✔ A range of shapes and designs available for OEM, can flexibly apply labels on the top, bottom, sides, and corners of the product.
