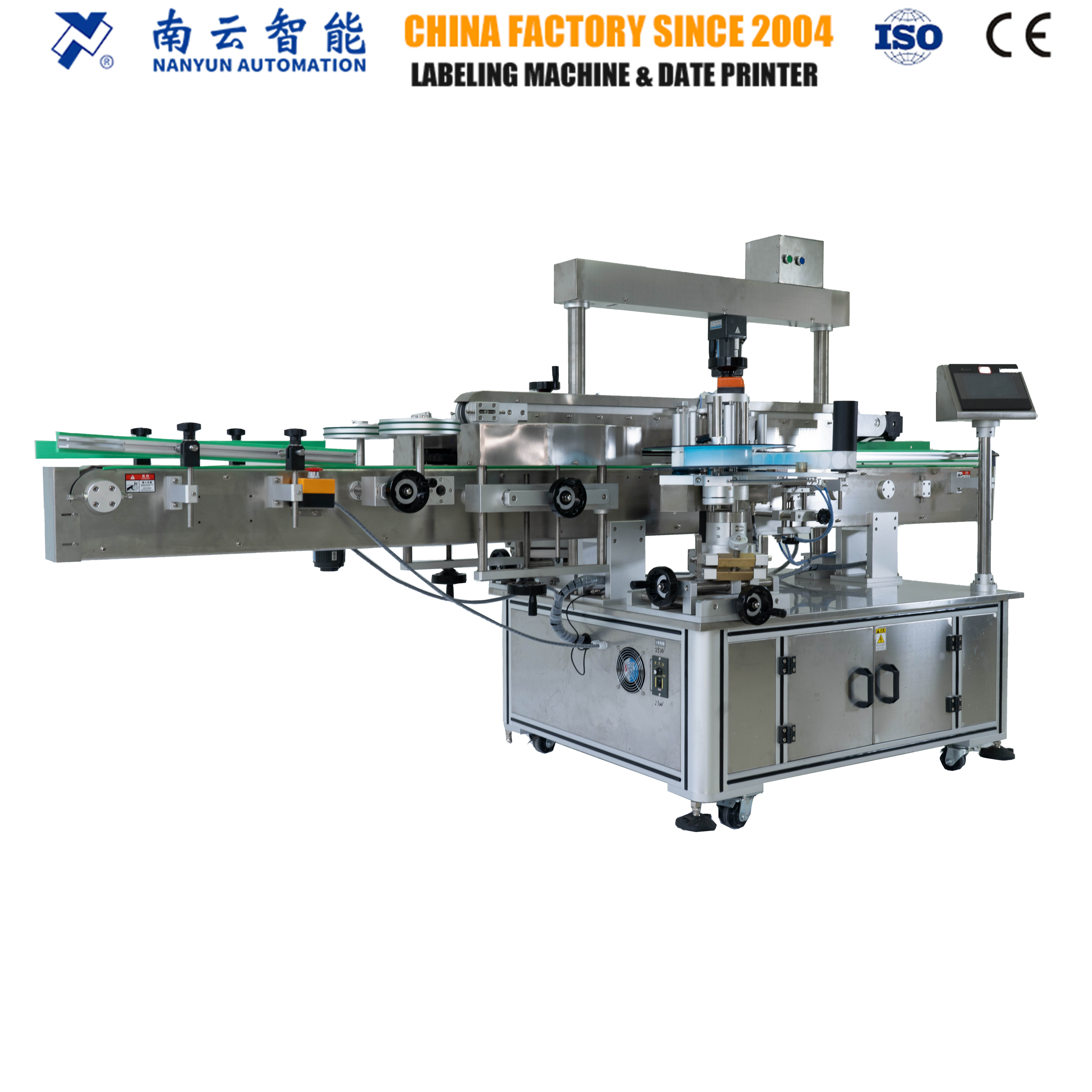

NY-823 Front and Back Labeling Machine
NY-823 Front and Back Labeling Machine
» Description
NY-823 labeler is the ideal equipment for applying front and back labels to boxes, oval or irregularly shaped containers, rectangular products to show as much product and brand information on the product as possible. It is a popular labeling system applicable to many industries such as edible oil industries, paint industries, varnish industries, chemicals industries, lubricant industries, adhesive industries, pharmaceuticals industries, food & ancillaries industries, personal care industries, pesticides industries etc.
» Application
- Choose 1 Or 2 (Front & Back) Labels For Flat And Oval Bottles According To Production Needs.
- Optional Pneumatic Pressing Mechanism, Apply a Single Label To Square Bottles With 2/3 Sided Labeling.
- Optional Sponge Rolling Pressing Mechanism, Apply a Single Label To Stand-Up Round Bottles.
- Adapts Perfectly To a Automatic Filling Capping Packaging Line.
♦ Example/Samples: Disinfectant Bottle /Oval Shampoo Bottle/Wine Bottle
» Specifications:
|
Technical Data |
NY-823 |
|
Label Accuracy |
±1mm (excluding product and label error) |
|
Label Speed |
5-100 pcs/min (related to product and label size). |
|
Label Width |
10 mm to 110/150/180 mm |
|
Product Size |
(20-250)x(30-90)x(60-280)mm (can customize) |
|
Inside reel Ø |
76mm |
|
Outside reel Ø |
≤ 300 mm |
|
Conveyor Width |
250mm |
|
Conveyor Length |
2 meters |
|
Working Height |
850 mm (+/-30 mm) |
|
Power Supply |
220V, 50/60 Hz, Single Phase, 1.2kw |
|
Machine Size (L x W x H) |
3000 x 1400x 1580mm |
|
Weight |
Approx 480kgs |
|
Compressed Air |
0.5~0.7Mpa, 0.28CBM/min (optional) |
|
Note: If machine are customized, the above data may vary. |
|
» Features
✔ Stepper motors for fast and accurate labeling.
✔ PLC+HMI Touch screen control system with job memory.
✔ Photo eye sensors for label gap/container detection.
✔ Easy adjusting hand wheels for quick setup and easy changeover.
✔ Production preset function, production run counter, extremely efficient.
✔ Main body is made of SUS304 stainless steel and aluminum alloy.
✔ CE Approved, meet the strict ISO 9001 quality control procedures.
✔ Label head dispenses labels with widths of up to 110, 180 or 200 mm.
✔ A range of shapes and designs available for OEM, can flexibly apply labels on the top, bottom, sides, and corners of the product.
» Optional Accessories (If required by customer at extra cost)
- Applicator For Irregular Surfaces
- Print Units (Hot Stamp, Thermal Transfer, Ink Jet, Laser)
- Clear Label Sensor For Sensing Transparent Film Labels
- Auto Loader/Bottle Unscrambler/Turntable
- Container/Bottle Separator Assembly
- Top Hold Down Belt
- Chain/Belt/Roller Conveyor
- Tamp Station Or Wrap Station
- Chain /Wheel Orientation For Ovals
- Angle Adjustment Base For Labeling Conical Bottles
- Online Pneumatically Operated Product Rejection System
