NY-857 automatic desiccant pouch dispenser for seasoning, flavor, bread, biscuit, candy, chocolate

Quick Details

Product Code：

NY-857

OEM：

Available

Sample:

Available

Port:

Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports

Payment:

PayPal,VISA,MasterCard,Western Union,T/T,Other

Place of Origin：

China

Shipping：

Support Express · Sea freight · Land freight · Air freight

Supply Ability：

200 unit per week

Quick Details

Shipping fee

Inquiry Basket

Contact Supplier

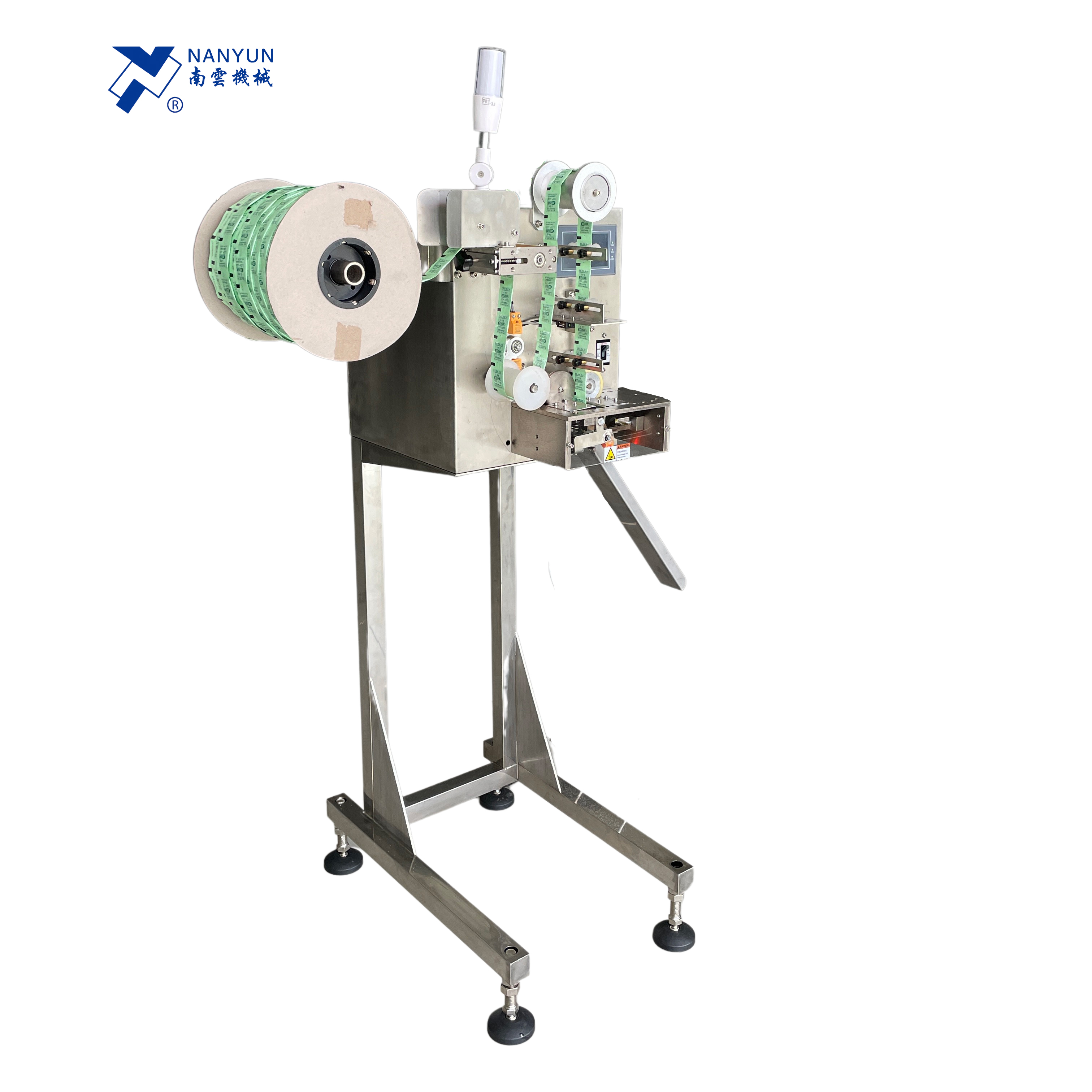

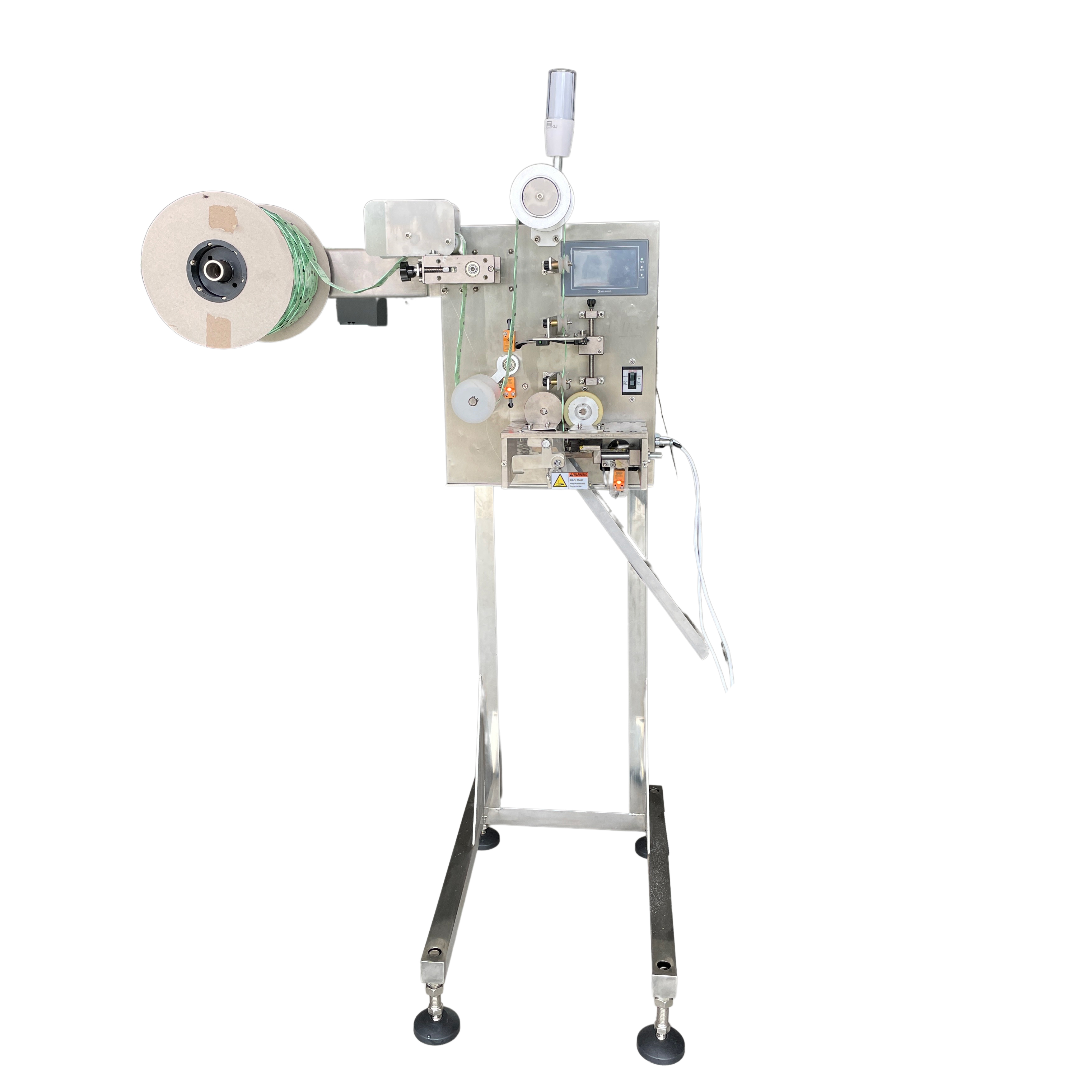

NY-857 desiccant sachet inserting machine/deoxidizing agent pouch dispenser for packaging production line

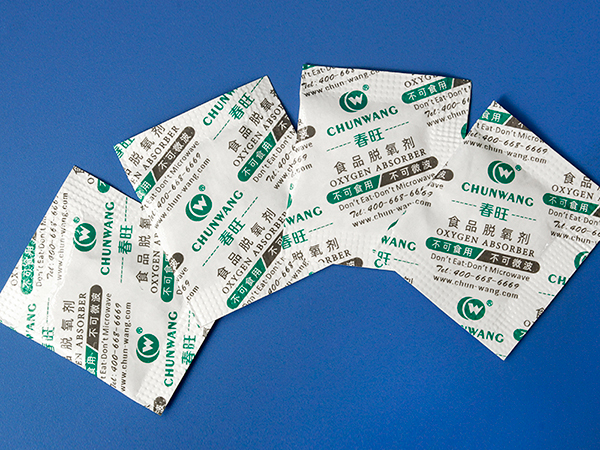

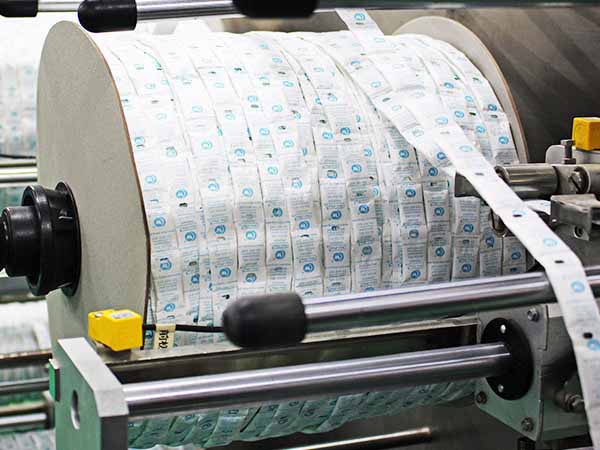

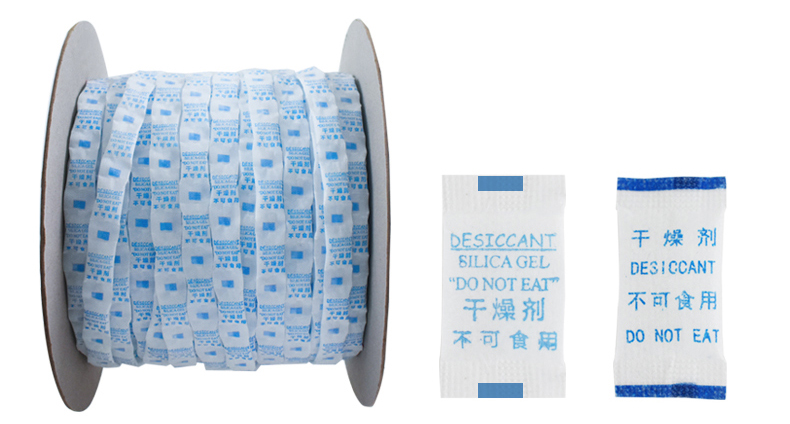

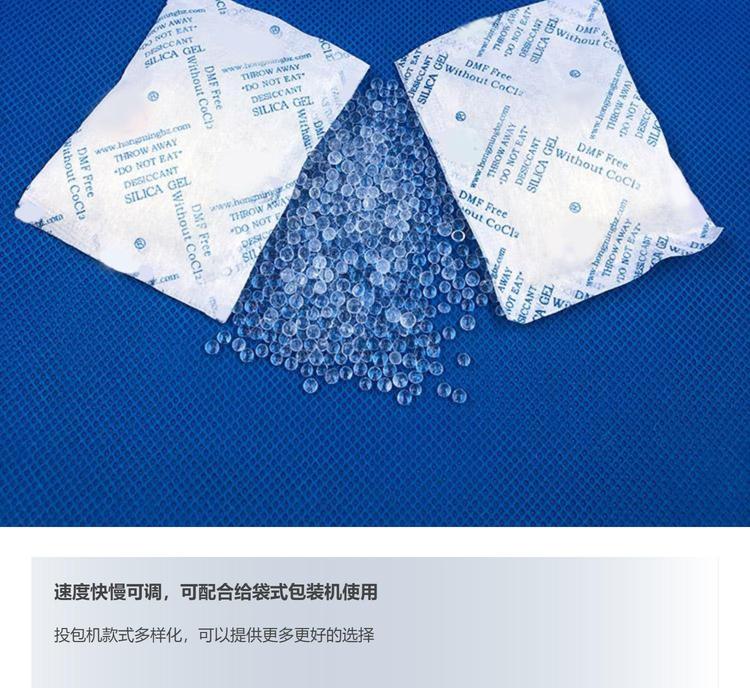

The pouch desiccant inserting machine is an electro-mechanical integrated device, easy to operate, convenient to maintain, and stable in operation. It can automatically cut off the belt desiccant and inserts it into the container accurately and quickly. Automatically cutting and dispensing for the continuous bags of deoxidant antistaling agent, silica gel desiccant and flavor, widely used in food, daily consumption, chemical and medicine and other industry.

Working Principle

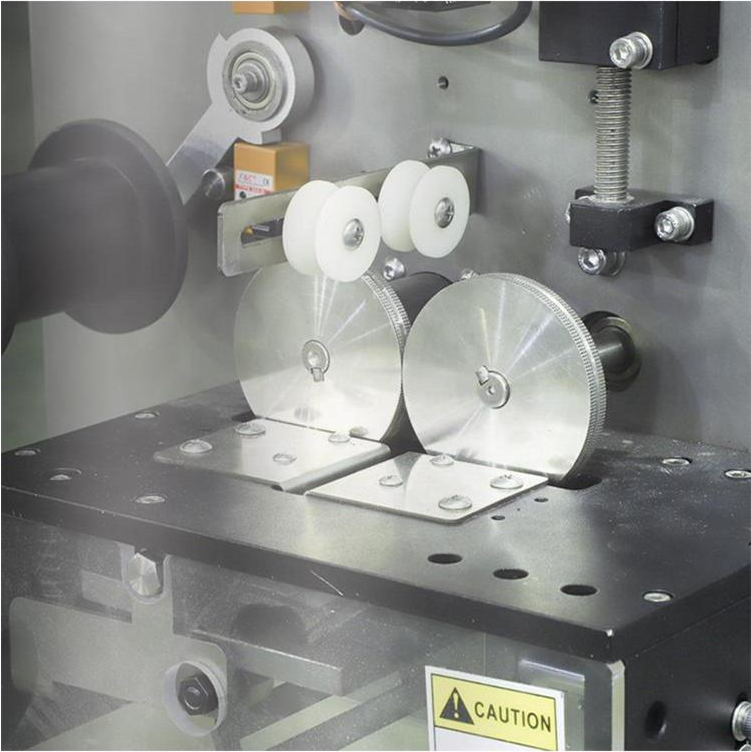

According to the size of desiccant. Set the parameters on the touch screen to control the feeding device driven desiccant bag. Through U-electric eye locator, it detects the data and feedback to the programmable logic controller (PLC). On the basis of the comparison result of the feedback value and the set parameter, If within the set range, then order cutter
cylinder moves to complete the feeding action.

00:11

00:45

Applicable Industries

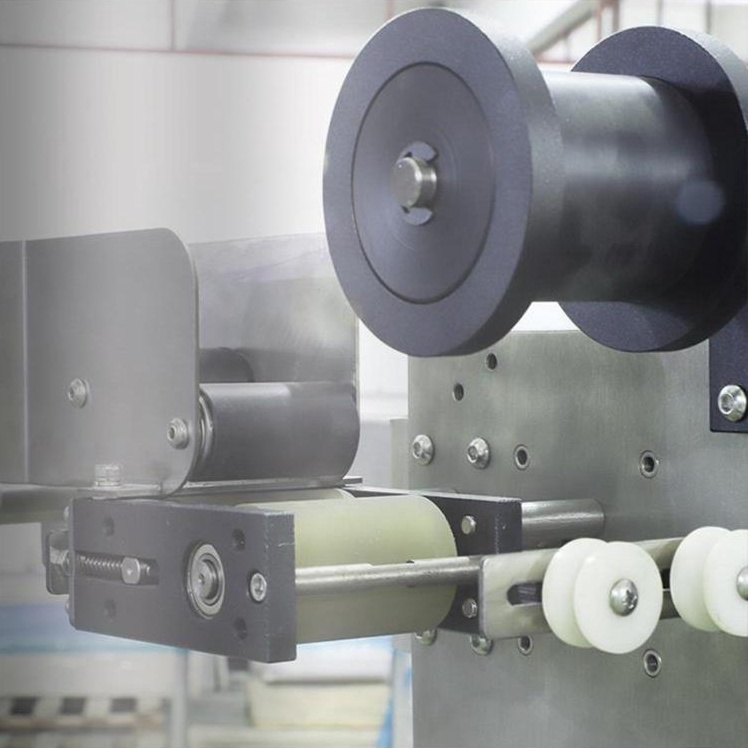

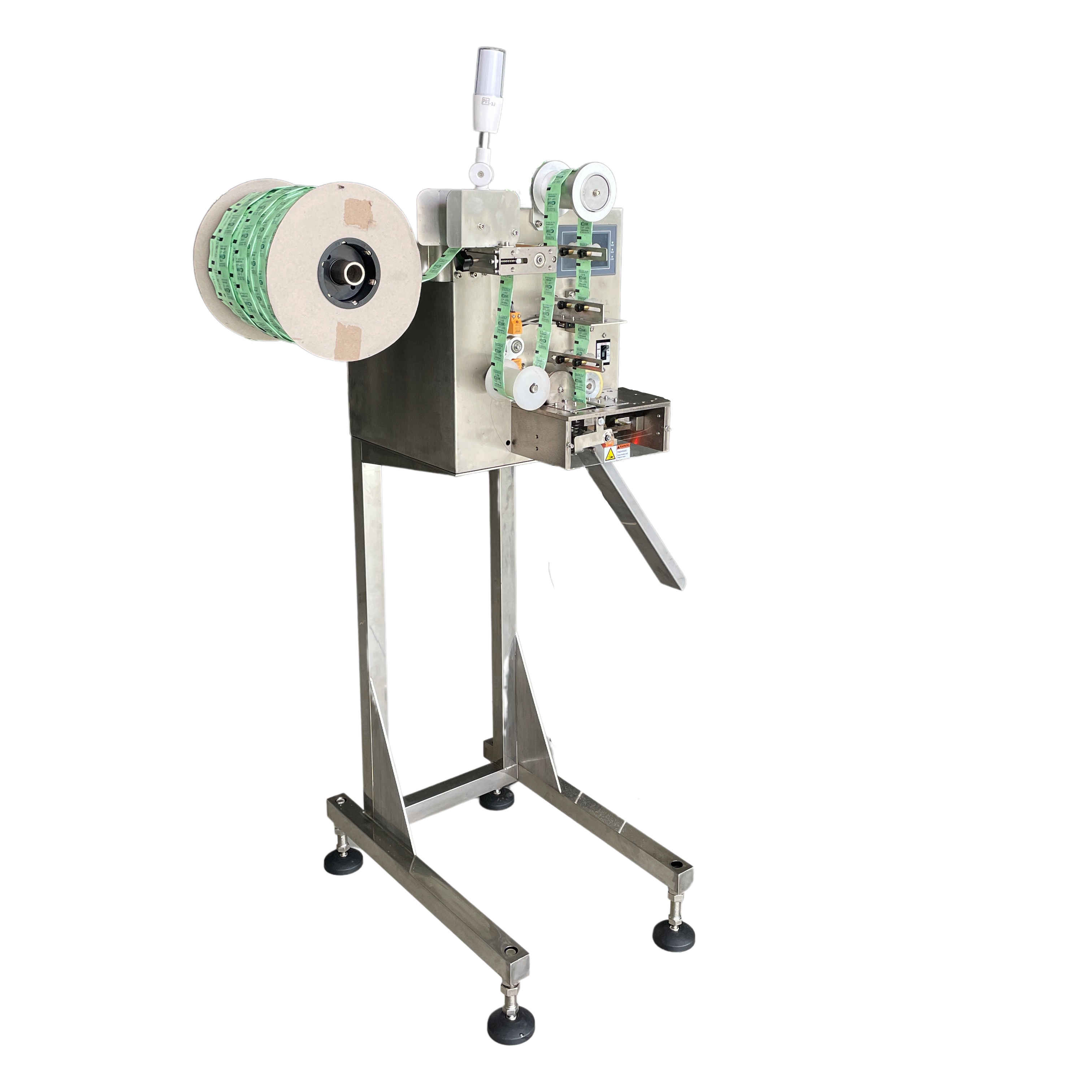

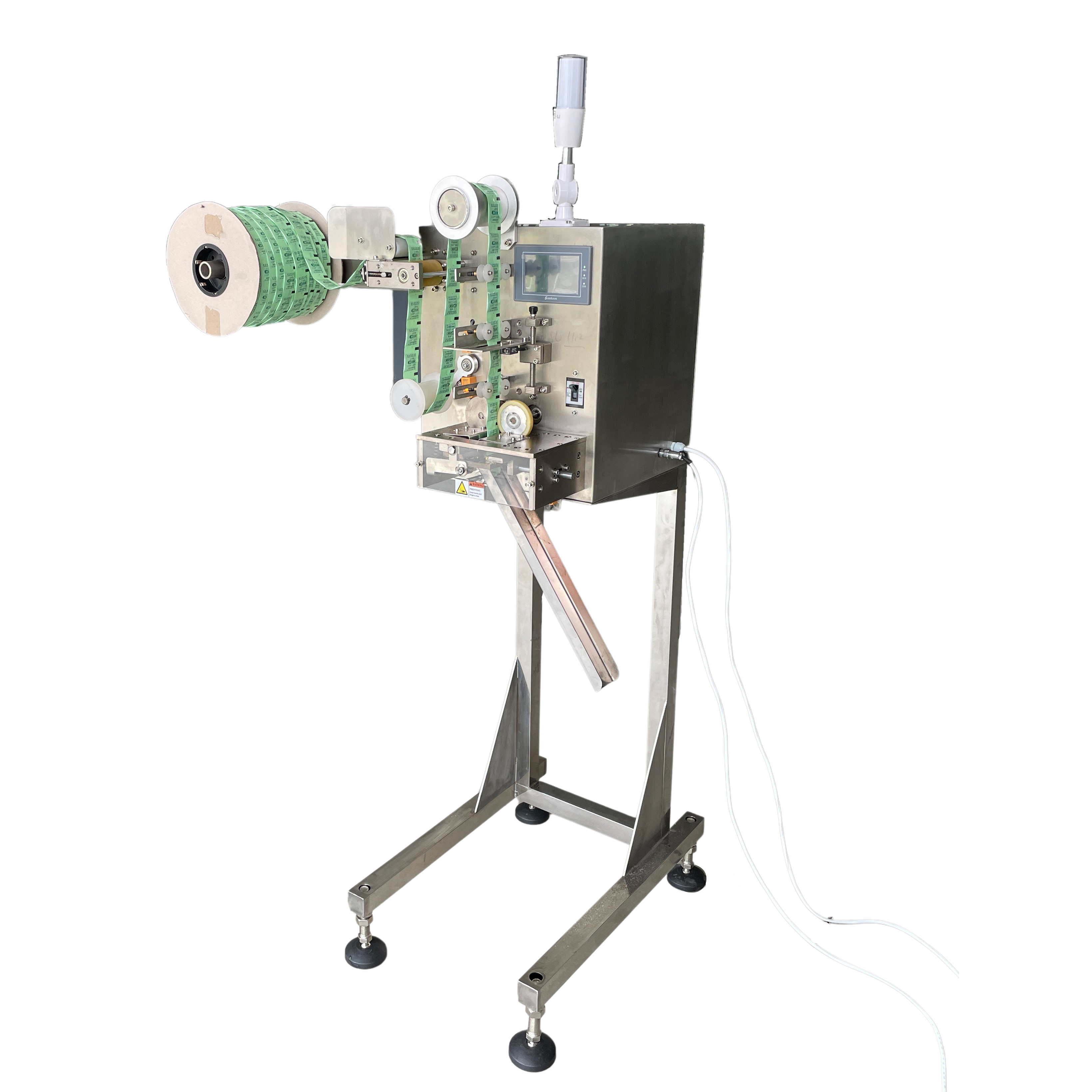

Machine Details

Specifications:
Model	NY-857
Driver	Motor
Voltage	220V /50-60Hz or 110V/60Hz
Power	350W
Dispenser Speed	20-160 pcs/min
Sachet Width Range	20-45 mm; 40-75 mm (can be customized)
Sachet Length Range	20-60 mm; 40-150 mm (can be customized)
Sachet Thickness Range	3-12 mm; or ≤22 mm (can be customized)
Package Materials	Plastic, Aluminum Film, Paper-like quality, etc.

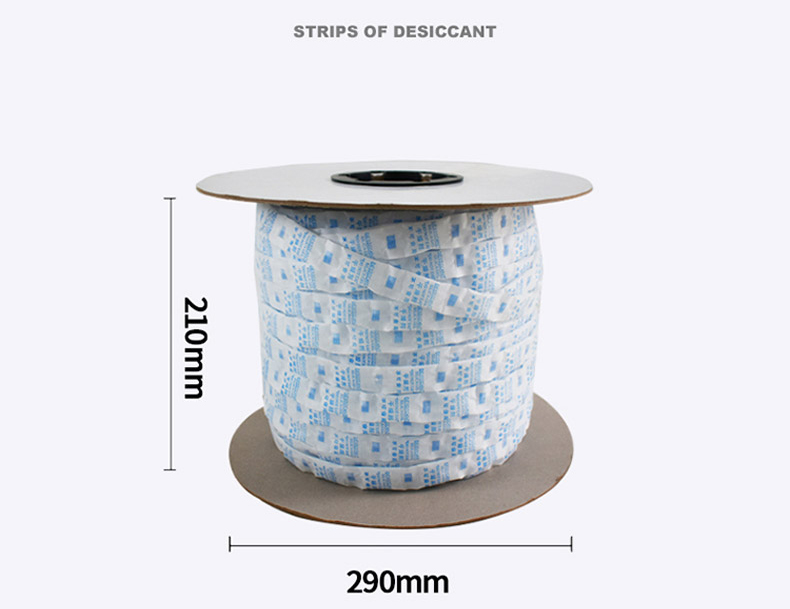

Sachet Roll Specifications (mm)	Inner hole≥∮25; Outer diameter≤∮270
Dimension (L×W×H)	675×665×1500mm (can be customized)
Weight	60KGS

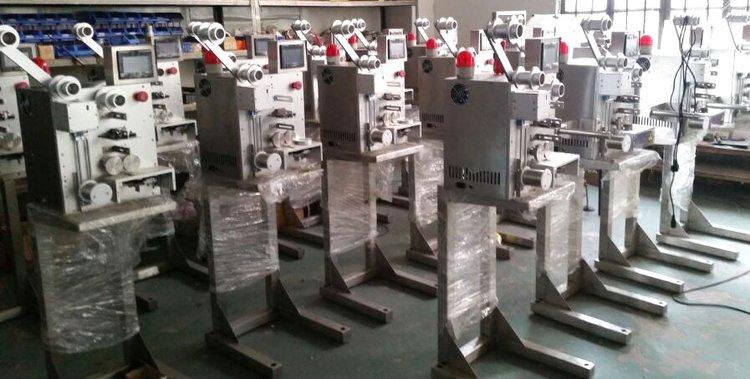

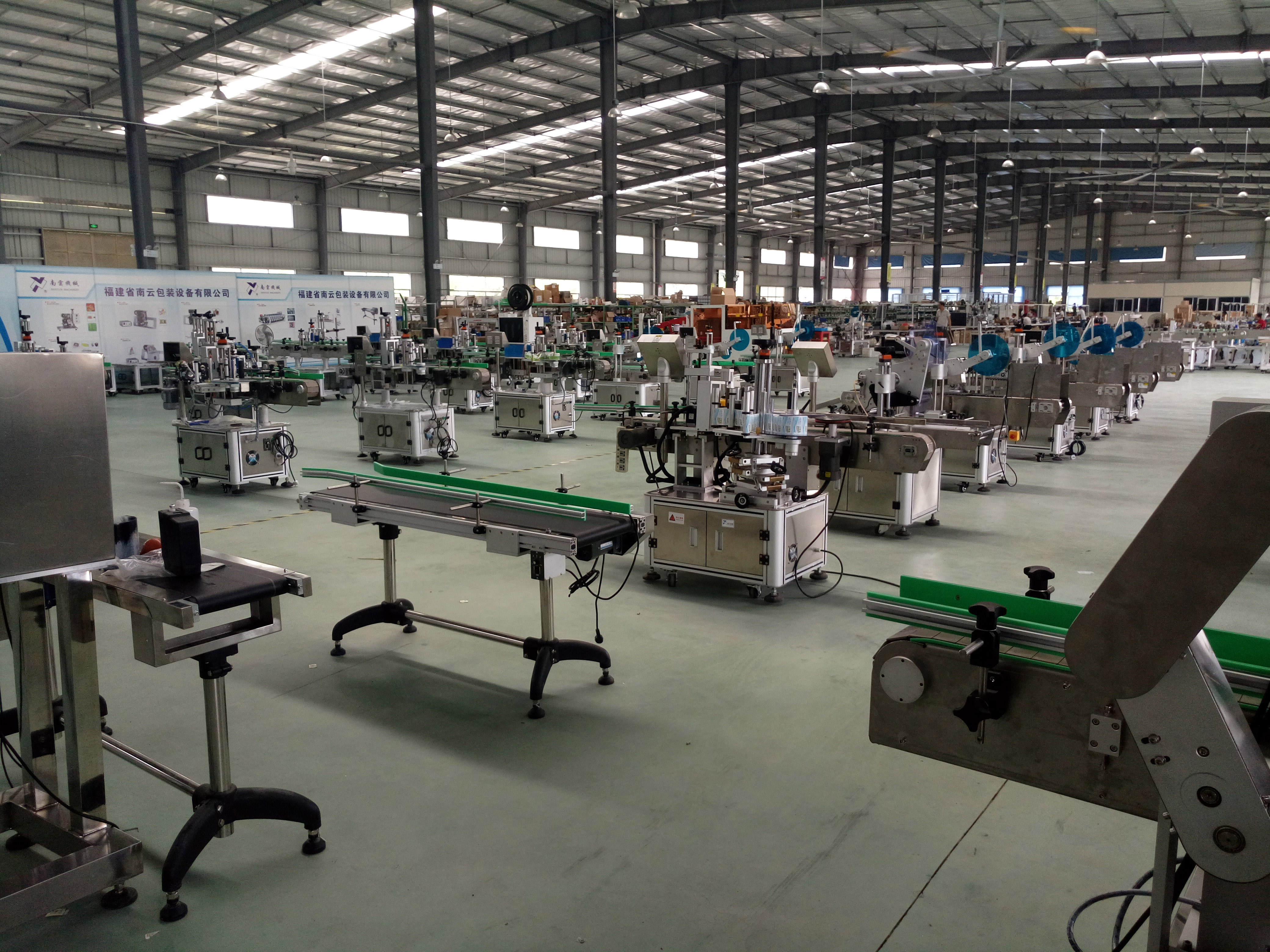

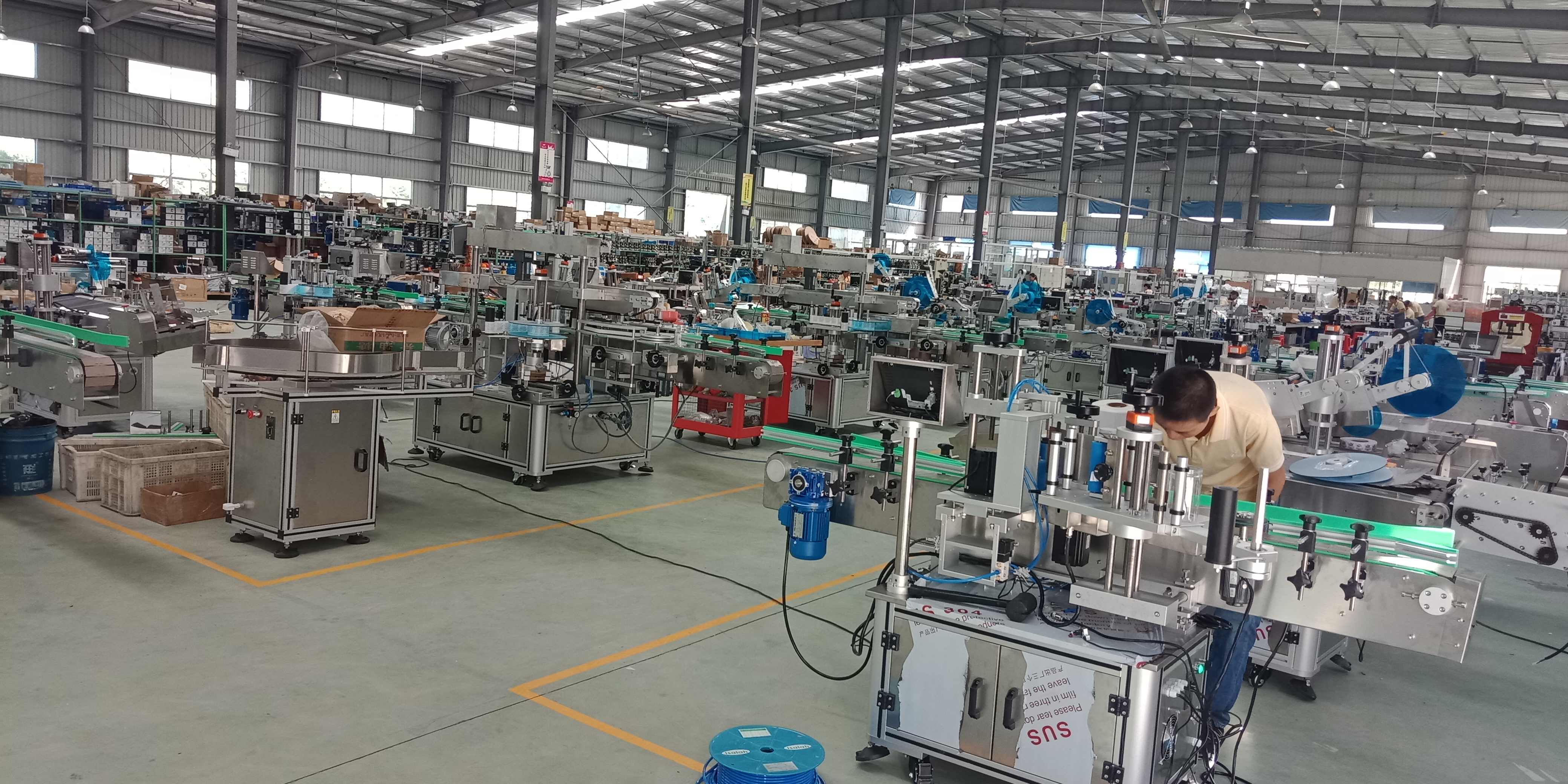

NanYun Factory:
