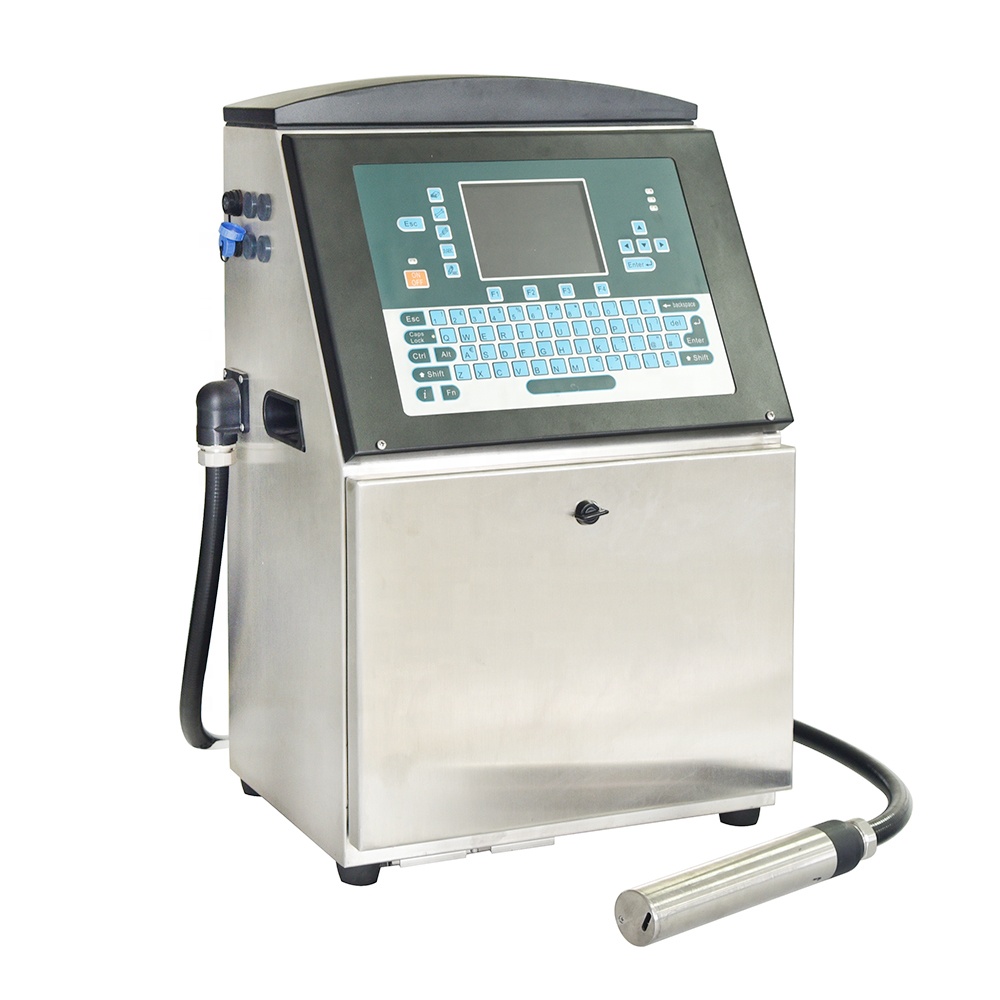

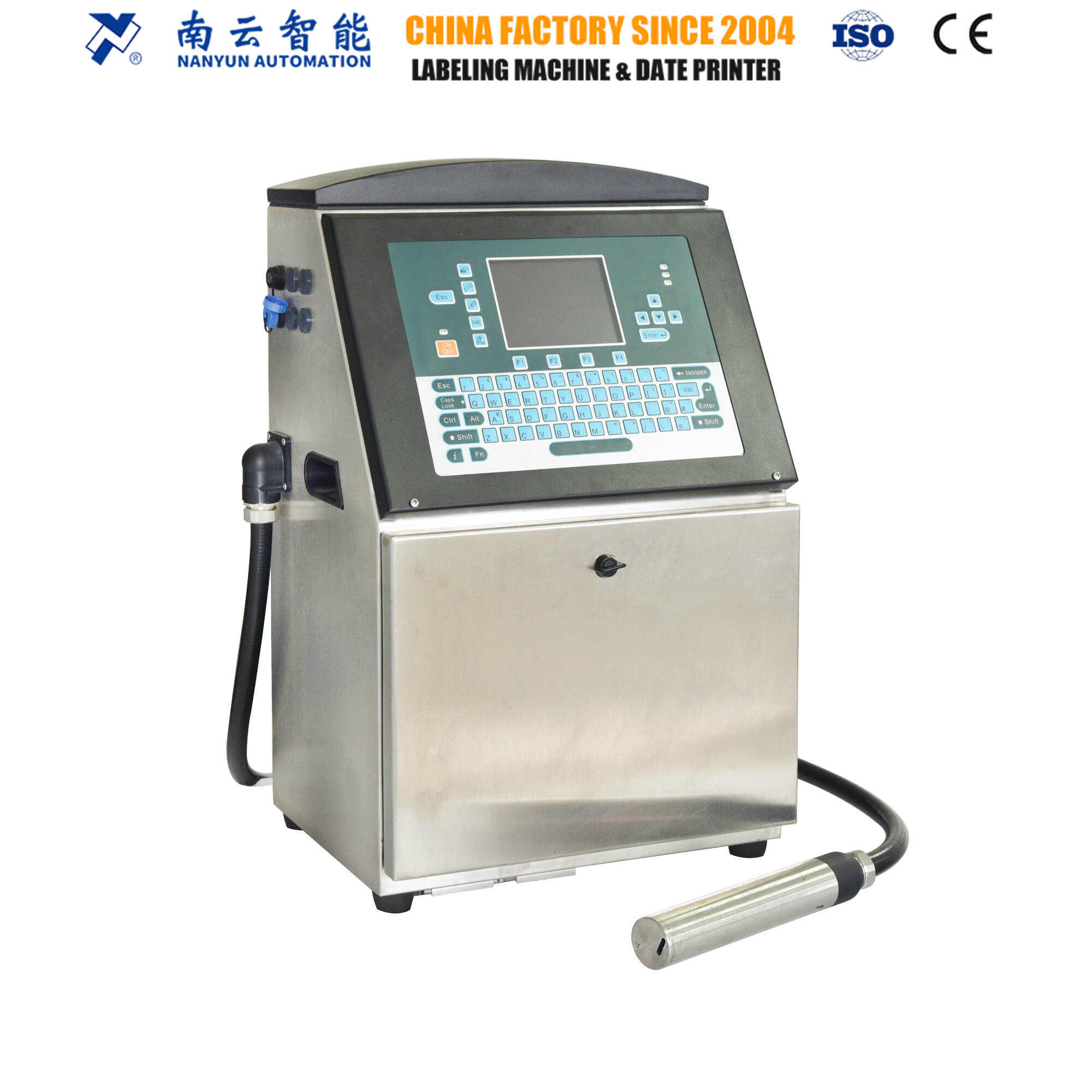

NY-1830 CIJ Continuous Industrial Inkjet Printer

Quick Details
Product Code:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
PayPal,VISA,MasterCard,Western Union,T/T,Other
Place of Origin:
Support Express · Sea freight · Land freight · Air freight
Supply Ability:
100 unit per week
Quick Details
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

NY-1830 CIJ Continuous Industrial Inkjet Printer

NY-1830 continuous ink jet printers can print easy to read text and graphics to enable product identification on uneven and
flexible surfaces of substrates from food, glass and plastic to metal and rubber.
Flexible code design, including the ability to mark serial numbers, batch codes, expiry dates, bar codes and logo etc.

1. IP55 stainless steel cabinet, dust-proof, anti-corrosion, to meet any production environment;
2. User rights management, reducing misuse, more secure and reliable production;
3. Automatic self-cleaning print head, which guarantees that the print nozzle stays unobstructed, even on frequent start-stop production lines.
4. Adopts unique dynamic compensation technology DSC, which accurately positioning each drop of ink, ensure the stability of the spray printing quality.

Technology Data:
Print head diameter
Max. dot matrix
Max.print lines
1-4 lines
Column distance reference
Max.print speed
196 meters/minute
Max. info length
6000 Columns
Word height range
2mm~15mm adjustable
Operation interface
Chinese and English
Print content
Chinese and English characters and numbers, date, product number, parcel number, special pattern.
Character library
Chinese third-level characters
Back and forth print
Double sensor option
Valid distance
5-15mm between sprayer and object
Ink color
Black, blue, red and so on.
Ink consumption
35 million per liter ink (lattice 5×7)
IP Clase
Environment temperature
Power supply
AC220V 50HZ 125W
Net weight

Why Use CIJ?

Over the last 30 years continuous inkjet technology has become the standard solution in more than 90% of coding application. It is chosen because it is simple to install and extremely versatile being able to print on virtually any surface.

It can be integrated with packing machine or any production line as per your application it can print batch no., logo, exp date, mfg date, MRP etc or any other useful information on labels, pouch, cartons, eggs and any other fragile or solid surfaces. The ink jet printer can work for high speed feeder/dispenser paging machine or stand up pouch feeding packing machine which feeds the product at high speed on the conveyor & the ink jet printing head mounted on the conveyor will print the required details on the product.

Industrial Ink Jet Printer is a smart-featured continuous ink jet (CIJ) printing system. Designed to meet a broad range of applications, Industrial Ink Jet Printer features the most common needed functions and capabilities necessary for the typical identification, lot / date code, sell-by date printing application. Industrial Ink Jet Printer systems feature the proprietary mart-flush print head maintenance operation. Makeup Solvent is used to clean the print head, nozzle and gutter at start up and shutdown providing a consistent, reliable daily start up.

How does CIJ work ?
The NanYun Inkjet Printer SureStart print head contains an ink drop-generator with a vibrating drive rod. This creates ultrasonic pressure waves in the inkjet ink, breaking it up into individual droplets. When these droplets fall between a set of electrodes, individual droplets are intermittently charged. The size of the charge given to each droplet determines how far it will be deflected out of the stream when passing through the deflector plates. This determines its placement on the product.
By placing a collection of these droplets close together, a variety of characters are printed as the product passes the print
head. Ink droplets not deflected out of the stream are re-circulated to repeat the process. This is a highly efficient use of ink jet ink allowing many millions of characters to be printed from a liter of ink.
What Benefits?
Continuous Inkjet (CIJ) printers can print easy to read text and graphics to enable product identification on substrates from food, glass and plastic to metal and rubber. They offer a wide range of benefits:

1.High speed printing that keeps up with the fastest production environments
2.Non-contact printing that enables uneven and flexible surfaces to be coded
3.Superior print head technology provides better drop placement and print quality
4.Automatic self-cleaning print head. This guarantees that the print nozzle stays unobstructed, even on frequent start-stop
production lines
5.Clean, quiet and compact design
6.Easy to use color touch screen
7.Designed from the ground up for minimal maintenance
