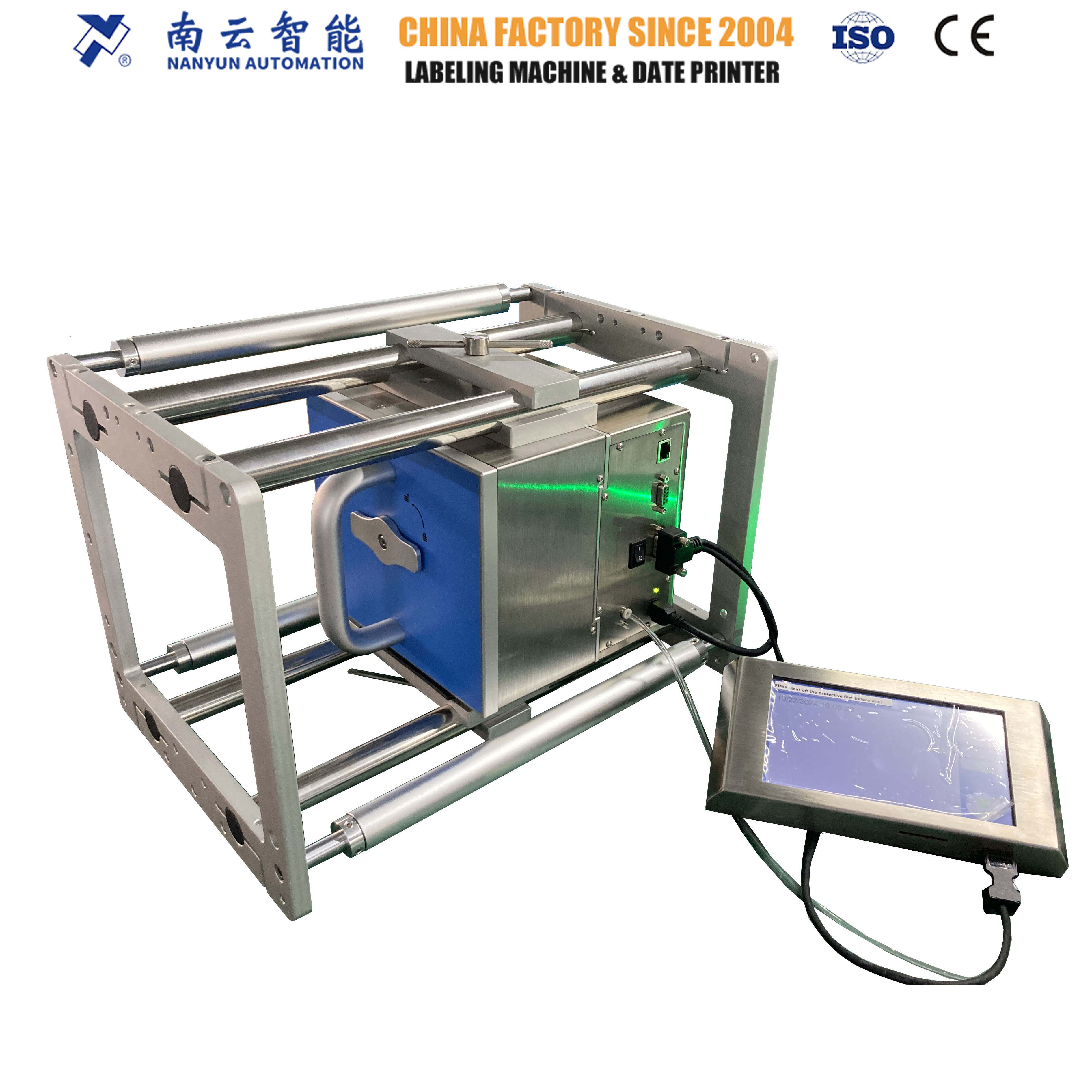

NanYun T50 300 Dpi Thermal Transfer Overprint Printer 24mm 34mm 53mm Print Head Tto Ribbon Coder Same Function As Savema Dikai

Quick Details
OEM：
Available
Sample:
Available
Payment:
PayPal,MasterCard,Western Union,T/T,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
200 unit per week
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

Thermal Transfer Overprinter For Multi-Functional Flexible Packaging or Labeling Machine


▶ Description
The thermal transfer printers can integrate seamlessly into a range of flexible packaging machines and can print clear legible alpha numeric, logo, variable data, QR code, graphics, 2D code, random code for traceability, as well as text on both intermittent and continuous high-speed packing machine or production lines. NanYun TTO printer is one of most cost-effective smart coding machines, provides excellent solutions to soft-packaging coding in a wide range of fields like food, daily use chemicals, seeds, daily use paper and financial bill etc.

Our thermal transfer overprinters (TTO) provide an ideal printing solution onto flexible packaging across a wide variety of industrial applications. Intuitive touch screen technology makes it easy to add code content—like a new date, a time, or traceability data—without mechanical changes to the printer.

This includes printing onto plastics, film packaging, labels, gloss card, and other flexible materials requiring consistent, error free best before dates, real time, batch codes, barcode, ingredients, graphics, pictures, logos and other variable product information. Print on snack foods, confectionery and bakery products, frozen and refrigerated foods (meat & poultry, dairy, bagged fruits & vegetables), cosmetics, chemical, nutraceuticals and other products packaged in flexible films.

▶ Application and Mounting Bracket Optional:
▪ For Horizontal Flow Packing Machine
▪ For Vertical Intermittent Packing Machine
▪ For Bag Making Feeding Packaging System
▪ For Self-adhesive Sticker Labeling Machines

▶ Specifications
Model
T30 / T50

Printing Modes
Intermittent Mode (IM)
Continuous Mode (CM)
Print Density
300 dpi

Print Speed
Intermittent Mode (IM): 2-30 meters/minute
Continuous Mode (CM): 0.5-42 meters/minute

Print Frequency
Intermittent Mode (IM): 250 times/minute
Continuous Mode (CM): 370 times/minute

Print Area
Intermittent Mode (IM): 32mm*90mm / 53mm*90mm
Continuous Mode (CM): 32mm*150mm / 53mm*150mm
Max. Ribbon Length
500m
Ribbon Width
33mm / 55mm
Print Job
Real time clock (hours/minutes), dates, user entered alphanumeric date, automatic shift code, automatic serial number, logos, barcodes, QR codes, nutrition tables, etc.
Bar code
Code128(Support GS1 Mode), EANX, Code11, QR code(Support GS1 Mode), C25matrix, C25inter, C25iata, Upca, Upce, EAN128, PDF417, DataMatrix(Support GS1 Mode), etc.
PC Based Interface
Include all features of the Touch Pad interface, support promotional codes, unique random codes, manage max. 6 printer units meantime, provide communications protocols.
Touch Pad
Support Hot-swap
COM Interface
USB, RS232, TCP/IP
Menu languages
Simplified Chinese, English, Traditional Chinese, Spanish, Portuguese, French, Arabic,
Russian, etc
Dimensions (W*H*D)
Printer Unit: 210mm*180mm*170mm;
Handheld Touch Pad: 220mm*120mm*30mm
Weight
Print Unit: 8.0kg, Touch Pad: 0.75kg
Power Supply
AC220V/AC110V; 50Hz/60Hz; 200W
Air Supply
0.35~0.6Mpa, Dry, Clean
Working Environment
Temperature: 0-40℃ Humidity: 10-90% (non-condensing)
