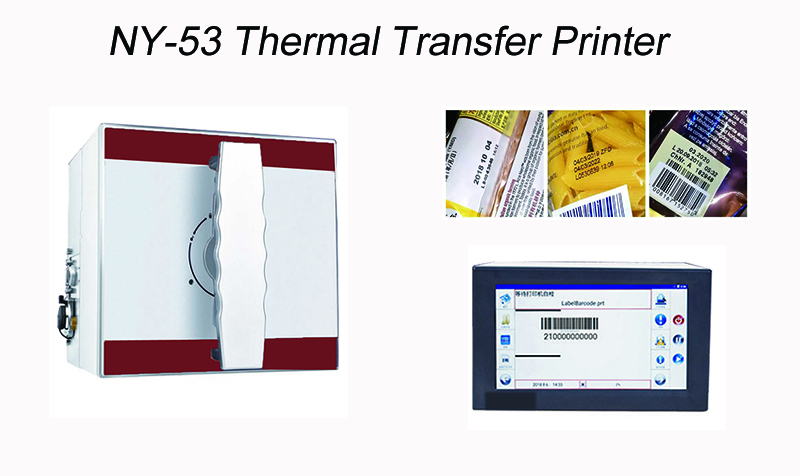

TTO Digital Barcode Thermal Transfer Overprinter

Quick Details
Product Code：
NY-53
OEM：
Available
Sample:
Available
Port:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
Payment:
PayPal,VISA,MasterCard,Western Union,T/T,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
100 unit per week
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

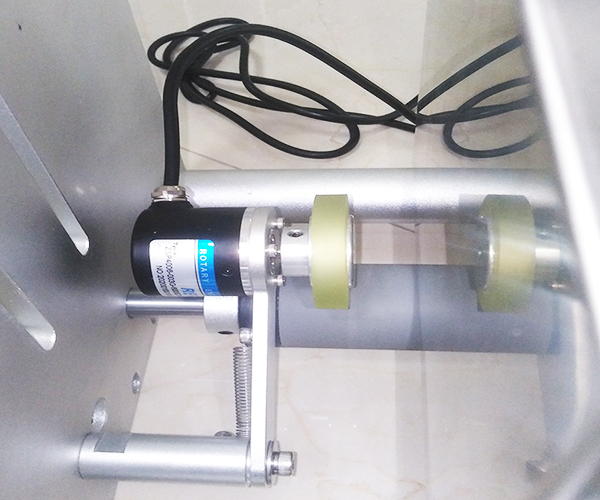

Encoder

Ribbon Installation

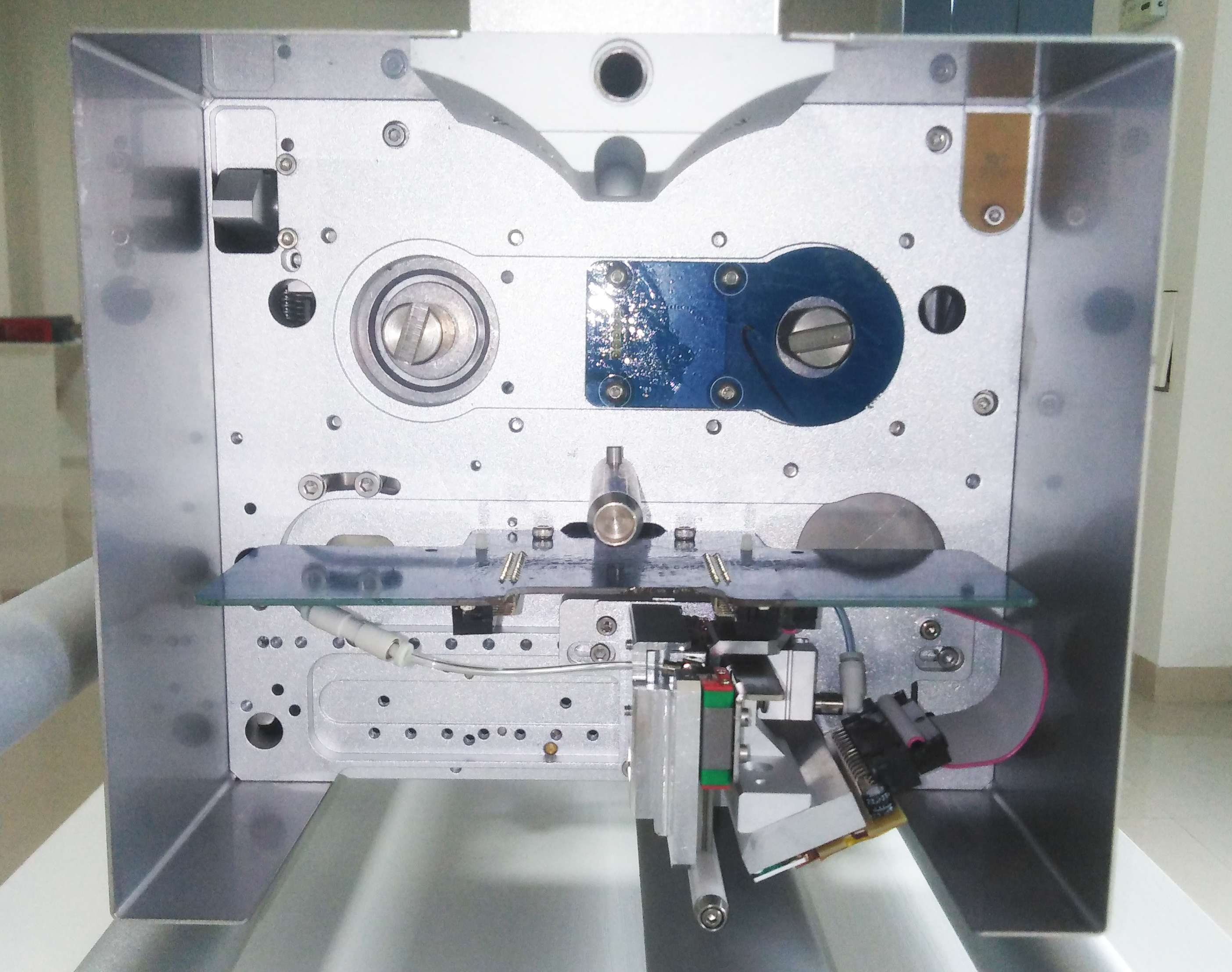

TTO Inside

Thermal Transfer Overprinters: Print Directly onto Flexible Packaging
Our thermal transfer overprinters (TTO) provide an ideal printing solution onto flexible packaging across a wide variety of industrial applications. Intuitive touch screen technology makes it easy to add code content—like a new date, a time, or traceability data—without mechanical changes to the printer.

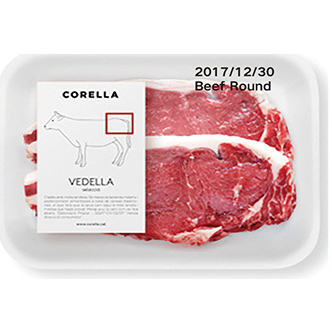

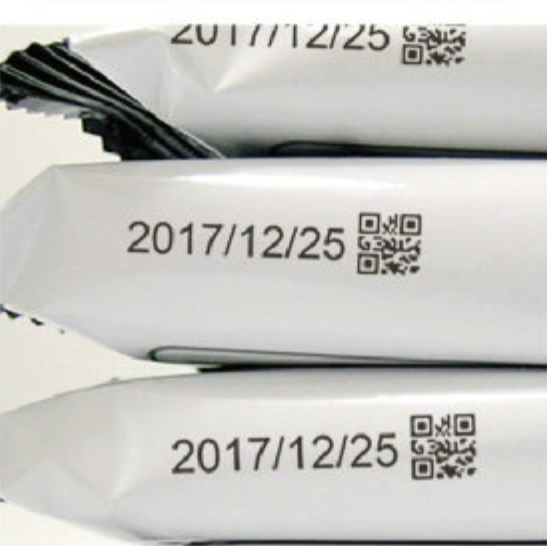

This includes printing onto plastics, film packaging, labels, gloss card, and other flexible materials requiring consistent, error free best before dates, real time, batch codes, barcode, ingredients, graphics, pictures, logos and other variable product information. Print on snack foods, confectionery and bakery products, frozen and refrigerated foods (meat & poultry, dairy, bagged fruits & vegetables), cosmetics, pharmaceuticals, nutraceuticals and other products packaged in flexible films.
Features
◆ Ribbon tension detection; thermal head position detection; cover opening detection; thermal head over temperature detection; ribbon break detection.
◆ Support interlaced, radial, multiple print signals
digital ribbon saving printing, ribbon back and other ribbon saving modes; The minimum ribbon interval between two lines of printing is not more than 0.5 mm.
Applications

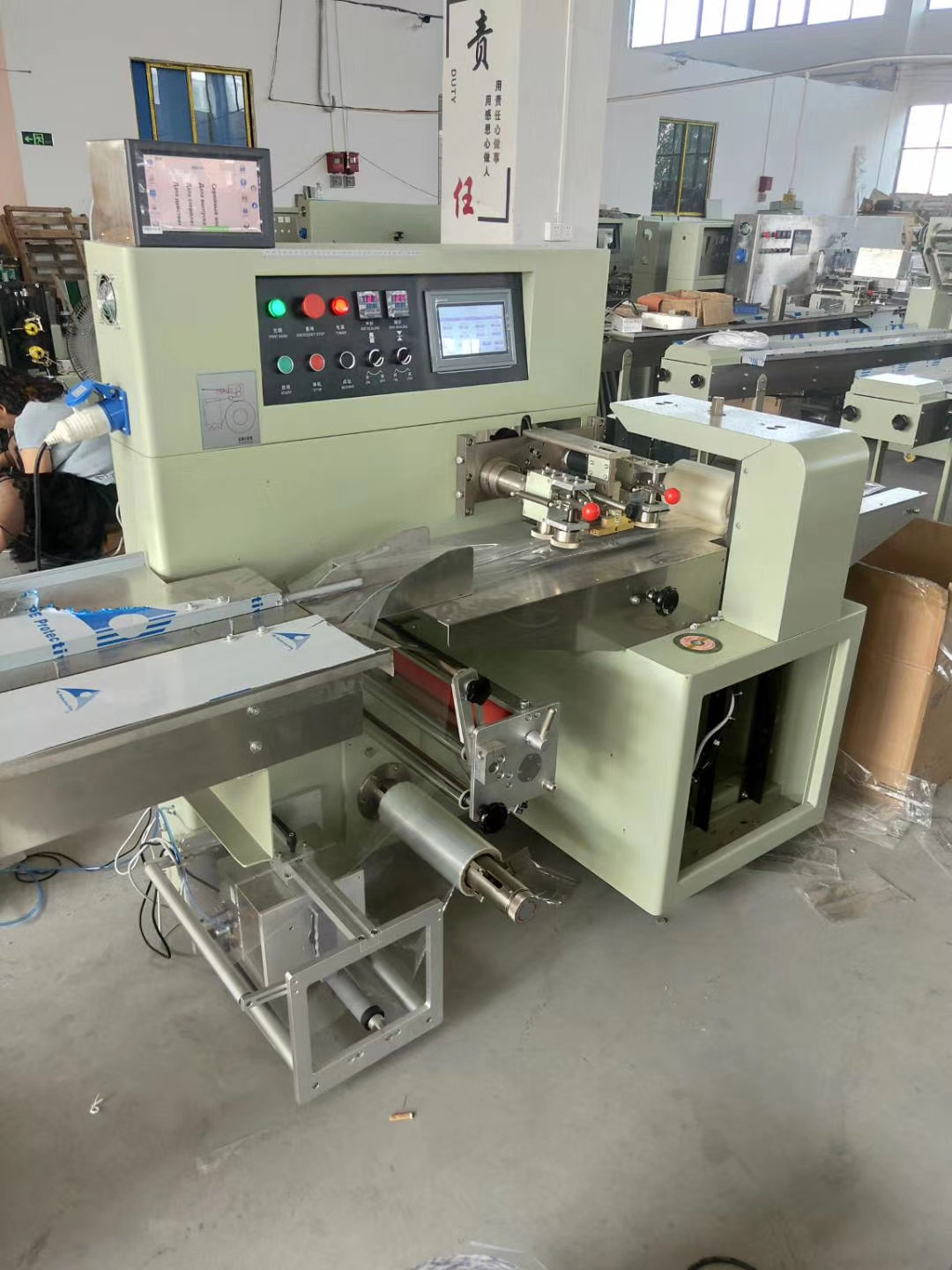

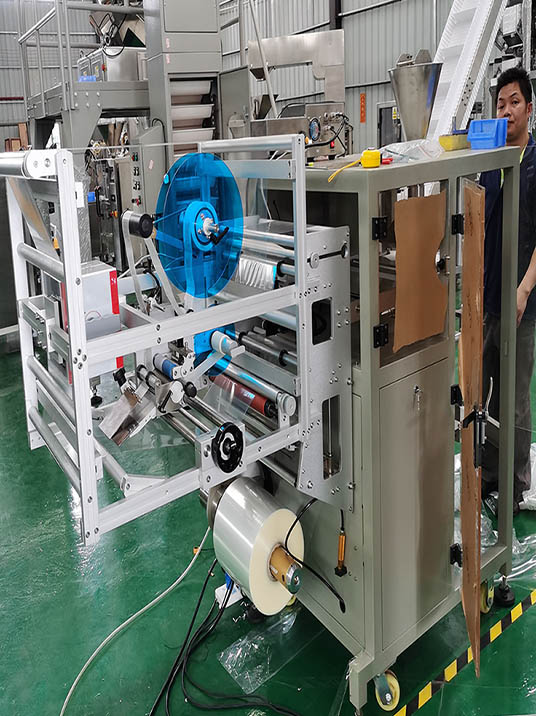

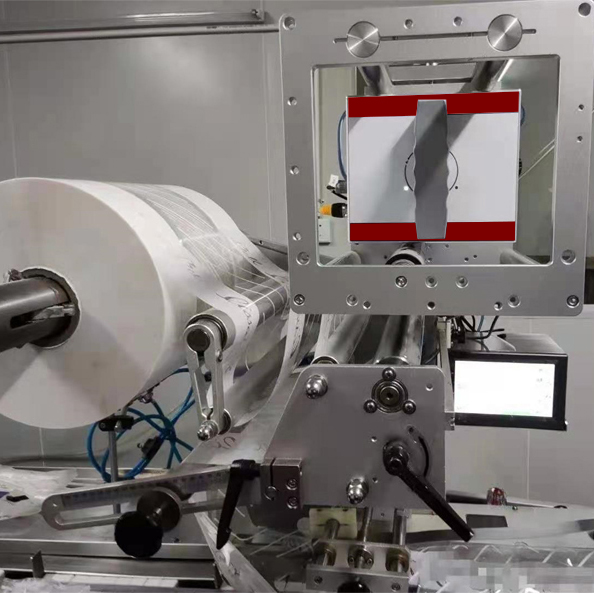

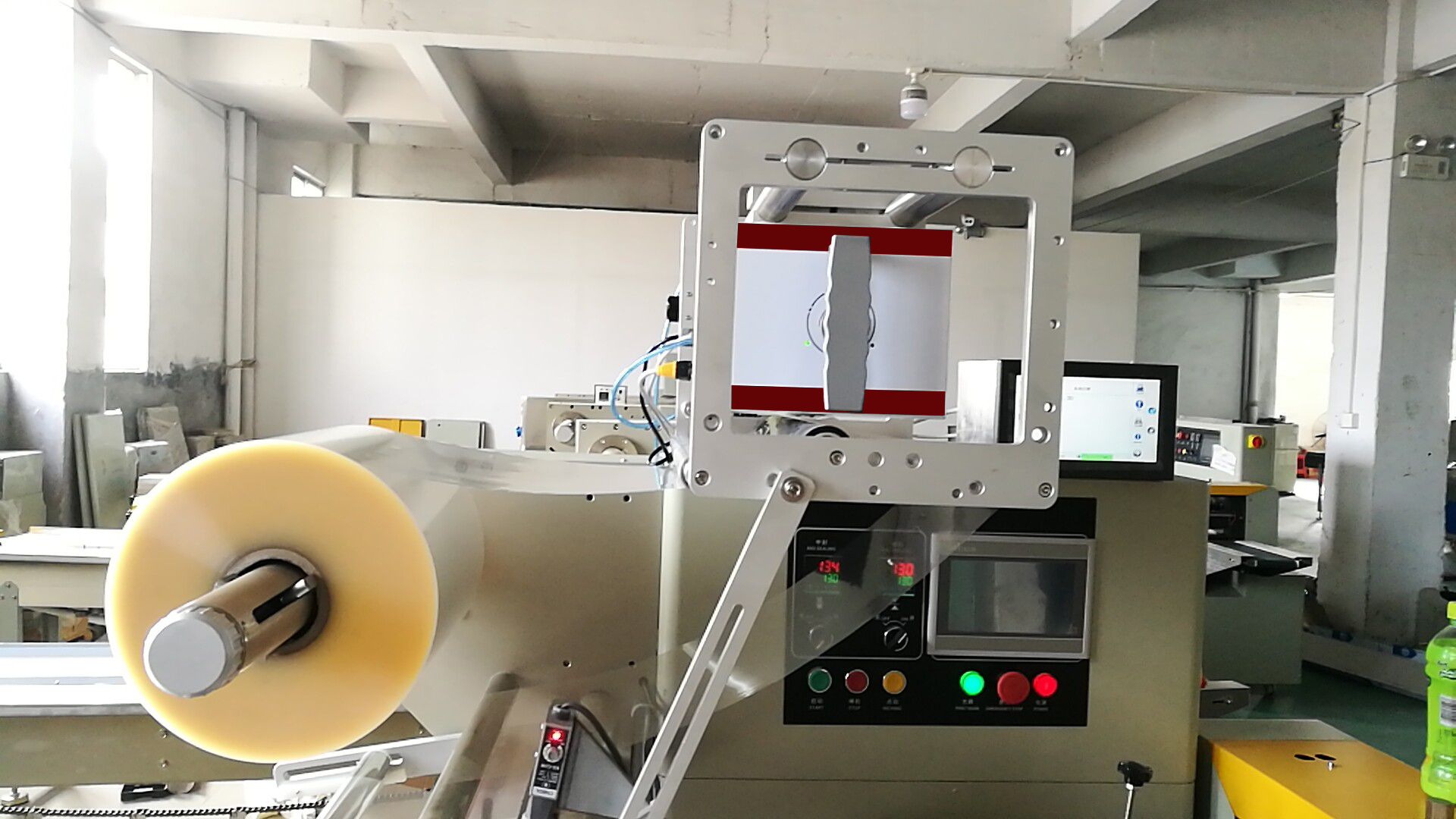

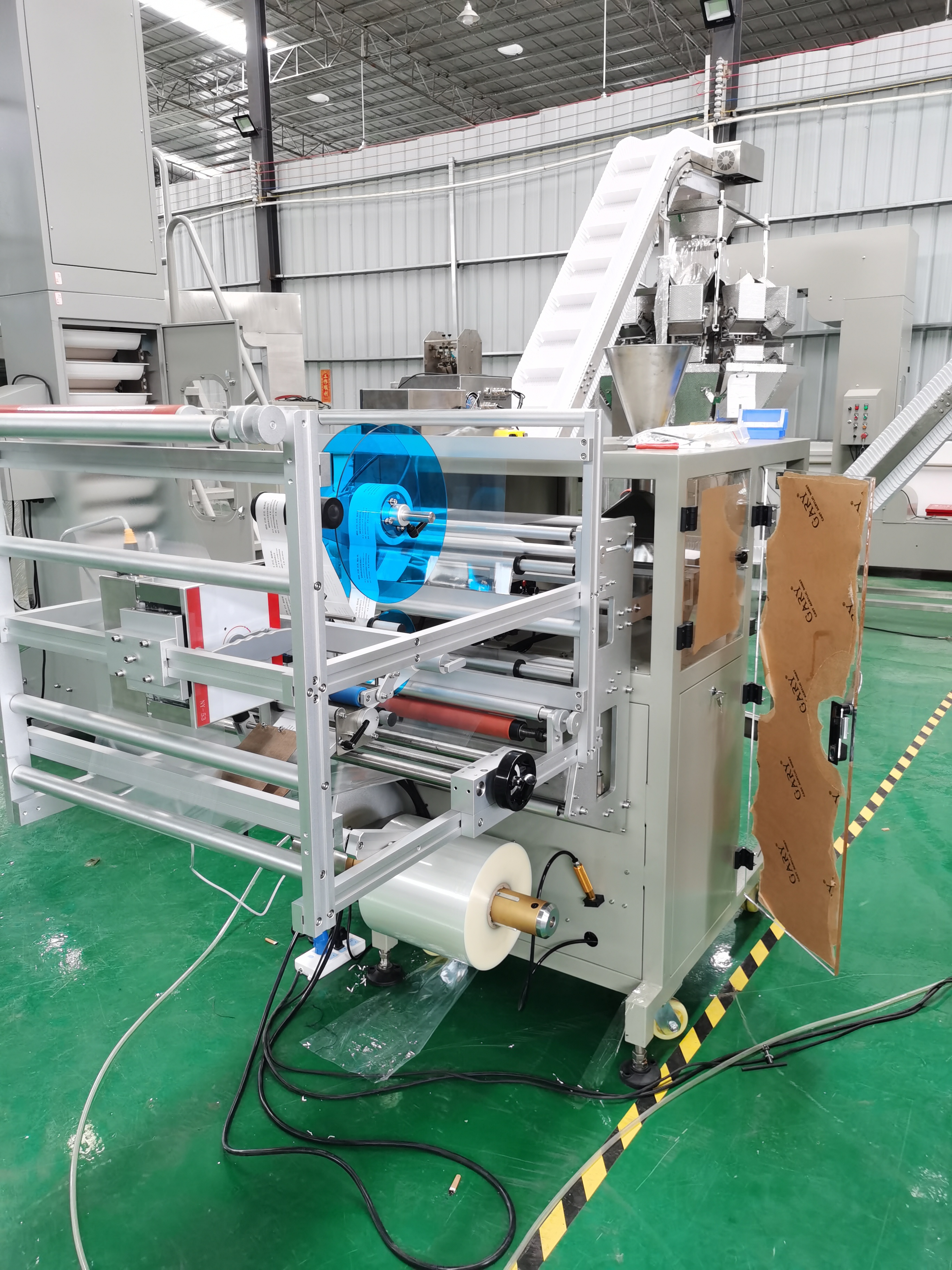

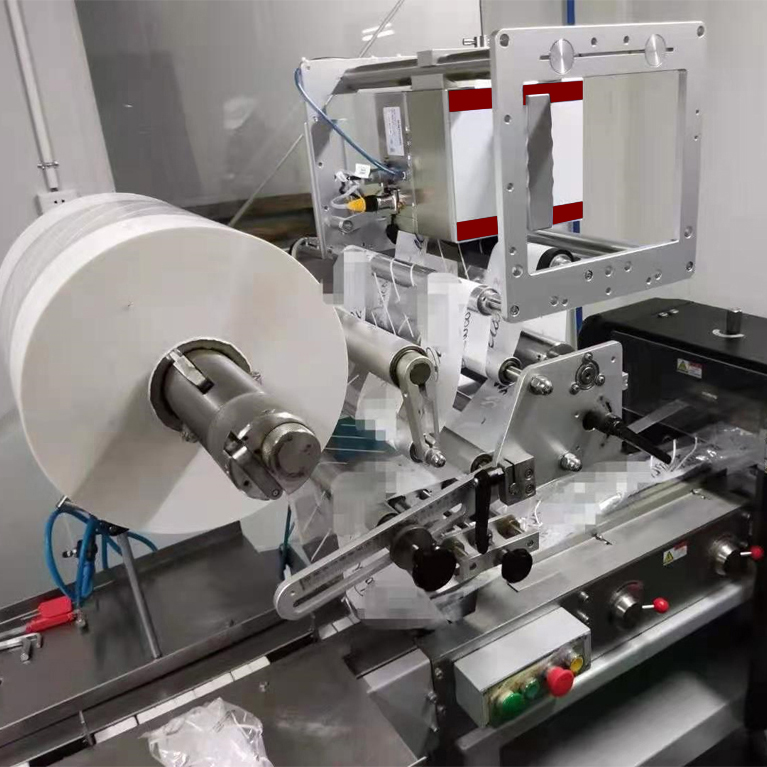

The thermal transfer printers can integrate seamlessly into a range of flexible packaging machines can print clear legible alpha
numberic, logo, barcode as well as text on both intermittent and high-speed production lines.

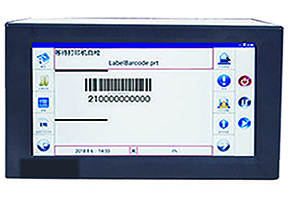

Touch Screen Controller
7 inches touch screen controller and user-friendly interface simplifies all the operation. Print content can be edited through our icon style menu of software handy in PC and transferable to printer by USB flash disk.

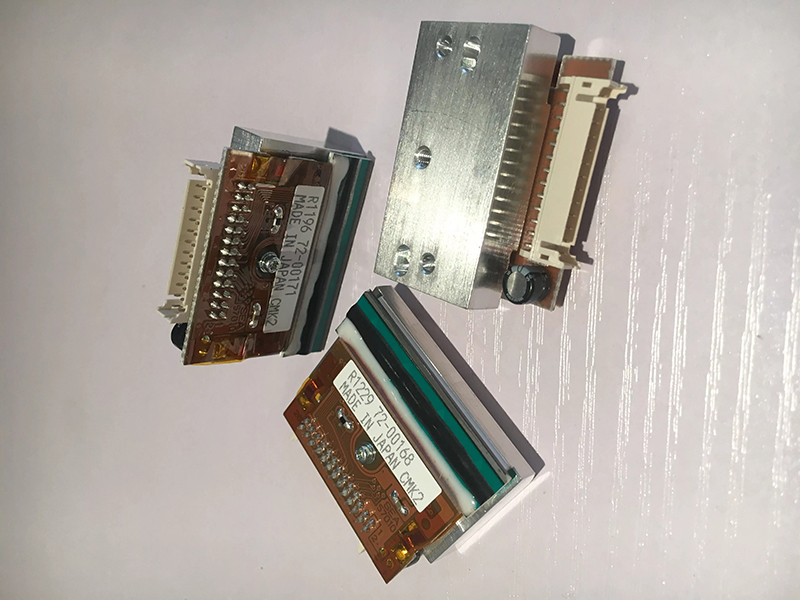

High Quality Print Head 34mm/53mm
With 34 mm & 53 mm print head, NY-53 is one of most cost-effective smart coding machines, provides excellent solutions to soft-packaging coding in a wide range of fields like food, pharmacy, daily use chemicals, seeds, daily use paper and financial bill etc.
Thermal transfer printing uses a high resolution (300 dpi) thermal printhead and thermal transfer ribbon. The printer heats select elements on the thermal printhead to transfer the colored pigment in the ribbon onto the flexible packaging.

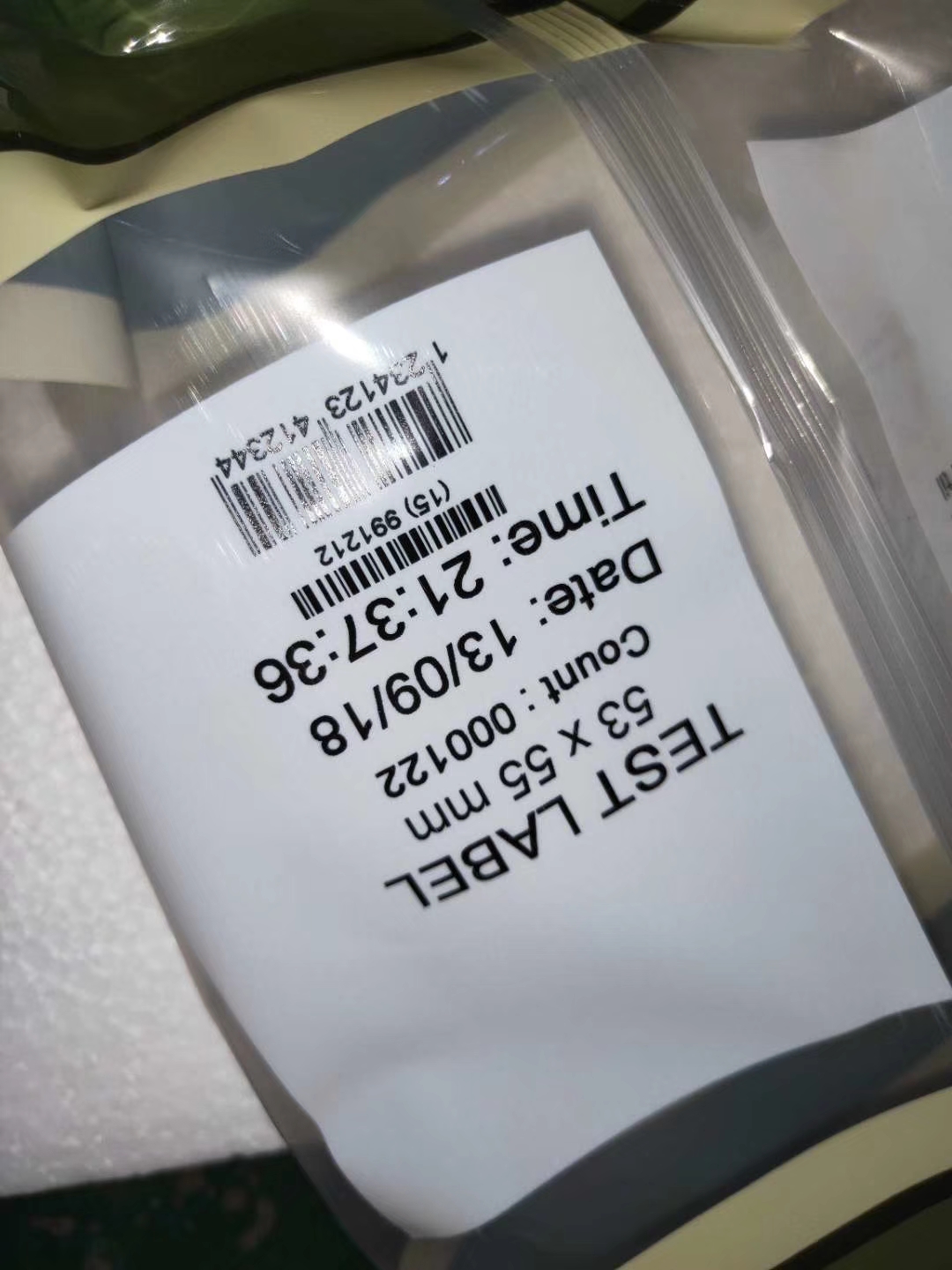

TTO Thermal Transfer Printer can print various of contents.
No matter what you want to print in Iranian calendar, Persian calendar, or the Special Language, you can edit it freely.
Suitable material
Plastic film PT, PE, PVC, OPP, KT, aluminum foil;
All kinds of plastic composites, plastic bags, paper, stickers, cards), leather, cloth;
Packing container bags, plastic products;
Coated, Synthetics, Polypropylene & Polyester, Flexible Packaging, etc.

Specifications


※Print content
Print format: True type font in Windows
Change content: real-time date, time, shelf life
Bar code: EAN13, EAN8, 128 yards
Complex graphics: Resident graphics file types are BMP and PCX, other graphics formats are downloaded and converted by software.

※Print parameters
Resolution: 300 DPI (12 dots /mm)
Print area: 53×75 mm (Intermittent Model),
53 mm×100 mm (Continuous Model).
Speed: Intermittent mode: 20 mm/s~200 mm/s,
Continuous mode: 40 mm/s~600 mm/s.

※Print mode
Two printing modes: intermittent, continuous.

※Operation interface
8 " Color LCD touch screen display
WYSIWYG print preview, online diagnostic menu

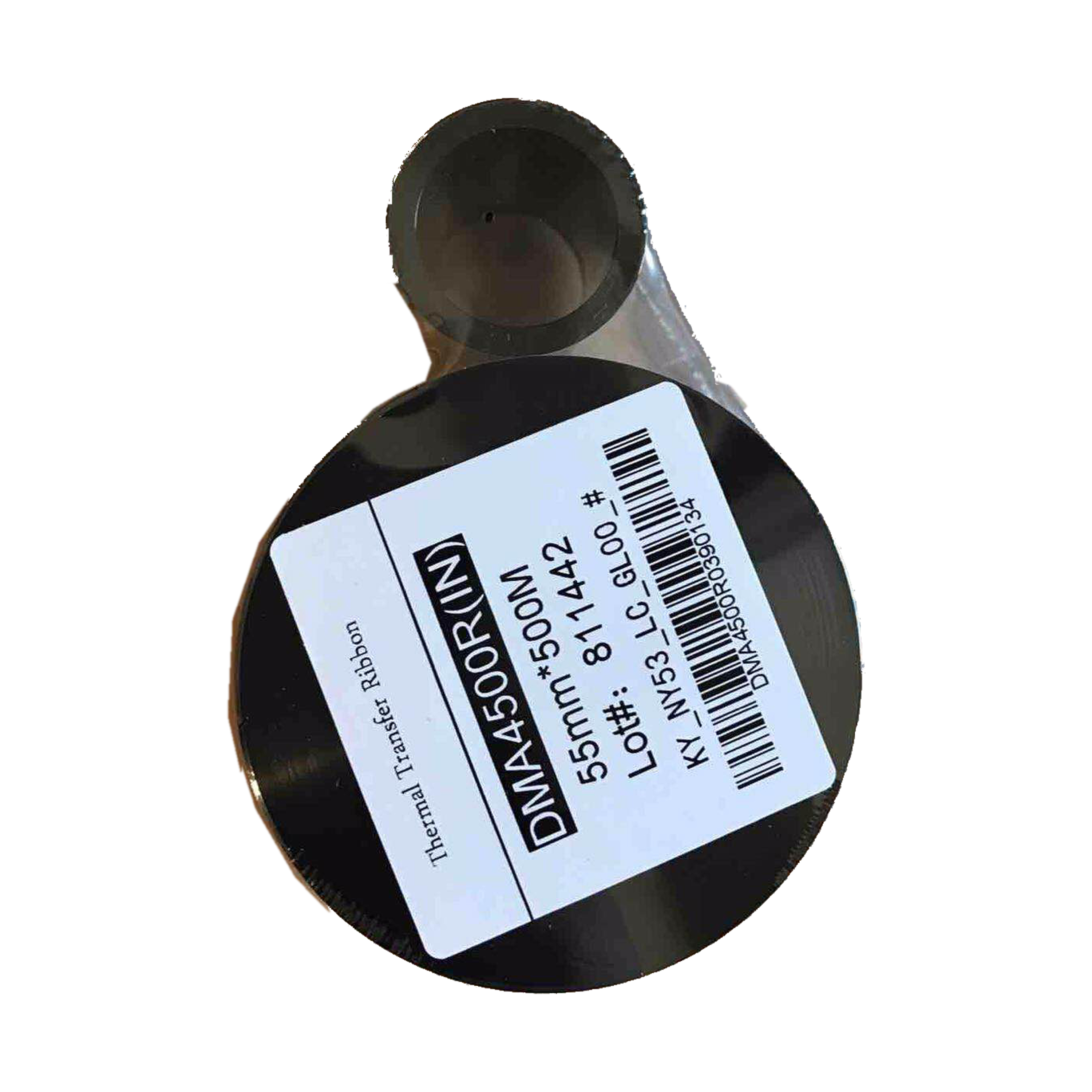

※Ribbon
Width: minimum 22 mm, 35 mm, maximum 55 mm
Length: up to 600 meters
Drive: Non-clutch dual motor ribbon drive

※External communication
RS 232 interface, USB

※Input signal
Trigger print signal, synchronizer

※Output signal
Fault status output (relay signal output)

※Use environment
Power supply: 90~264 volts AC, 47/63 Hz, 150 VA
Temperature range: 0~40°C
Compressed air: pressure 3~6 bar, clean, dry compressed air
Humidity: 10% to 90%, no condensation

※Design software
NanYun Format Designer Software
Horizontal Continuous packaging machine, Vertical Intermittent packaging machine, Labeling Machine, Feeder etc.
