NY-806A Multihead Hot Stamping Ribbon Coder For VFFS

Quick Details
Product Code:
NY-806A
OEM:
Available
Sample:
Available
Port:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
Payment:
PayPal,VISA,Western Union,T/T,Other
Place of Origin:
China
Shipping:
Support Express · Sea freight · Land freight · Air freight
Supply Ability:
500 unit per week
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

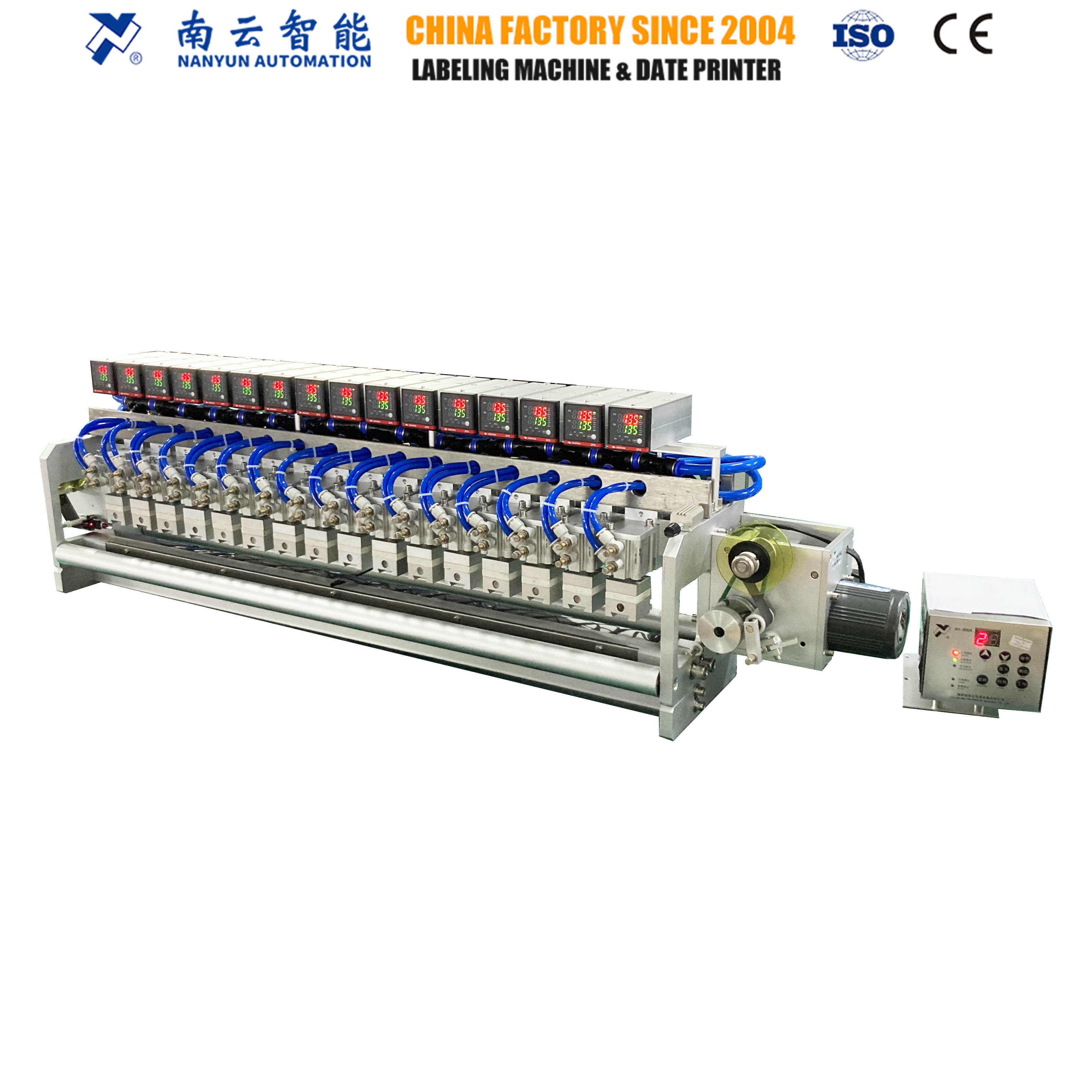

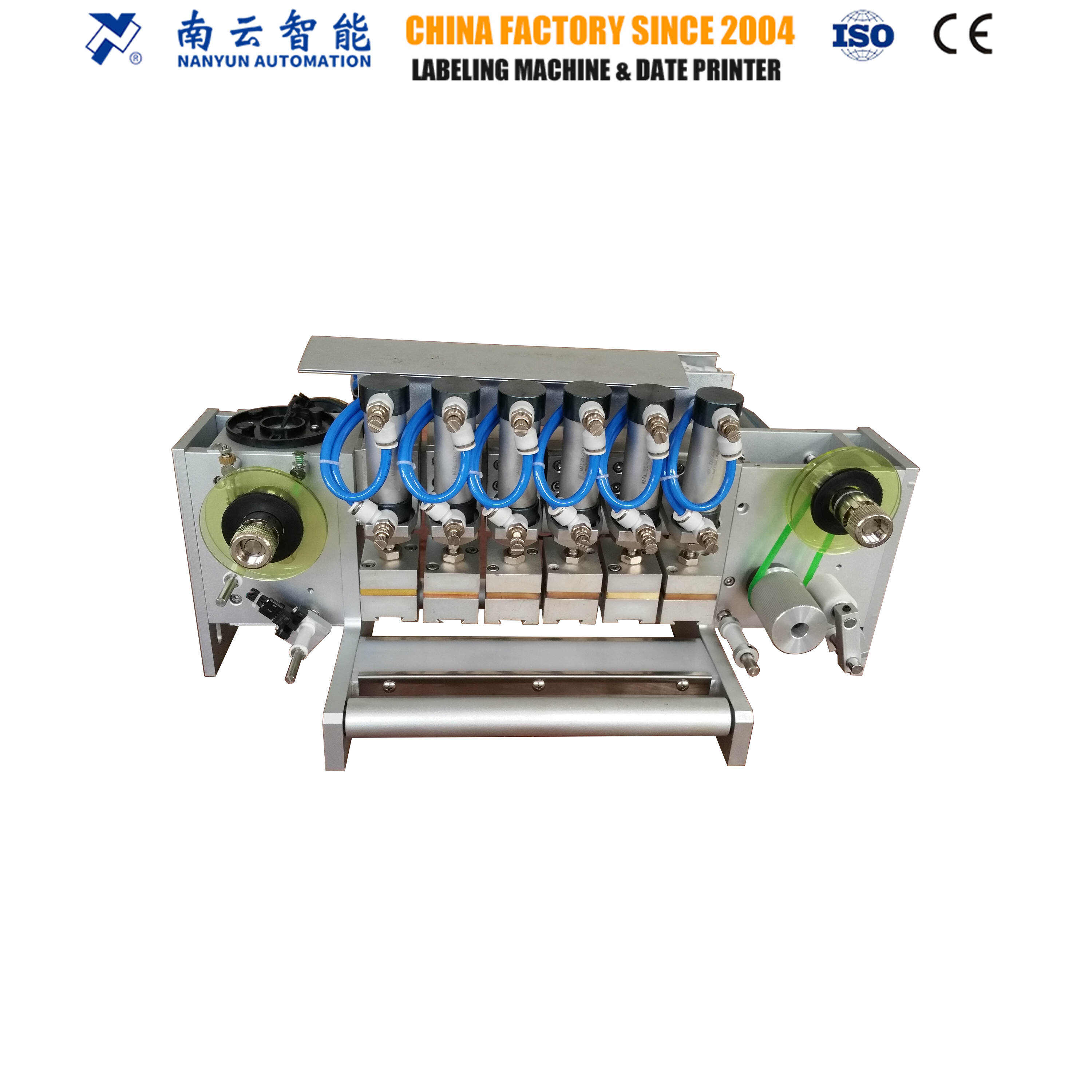

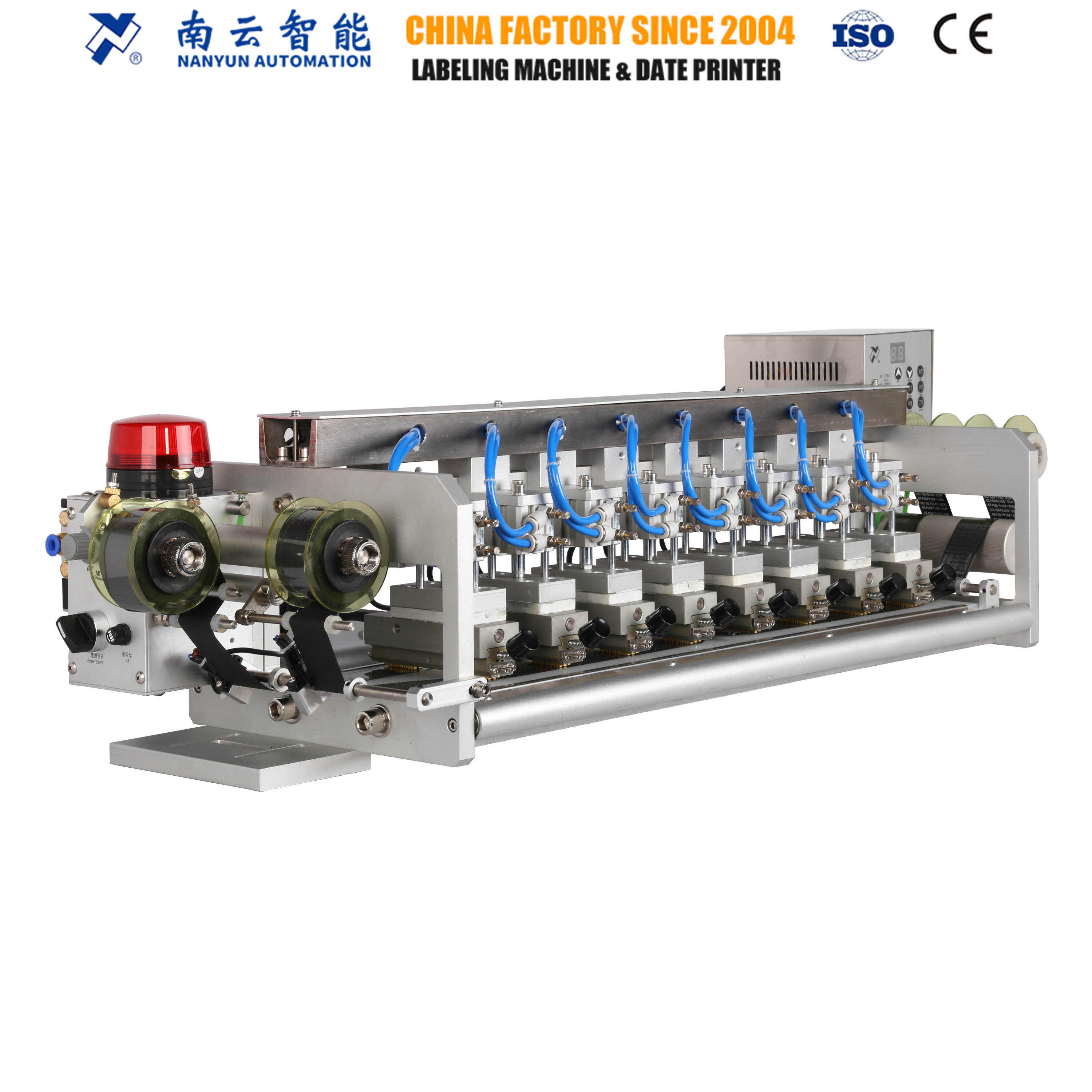

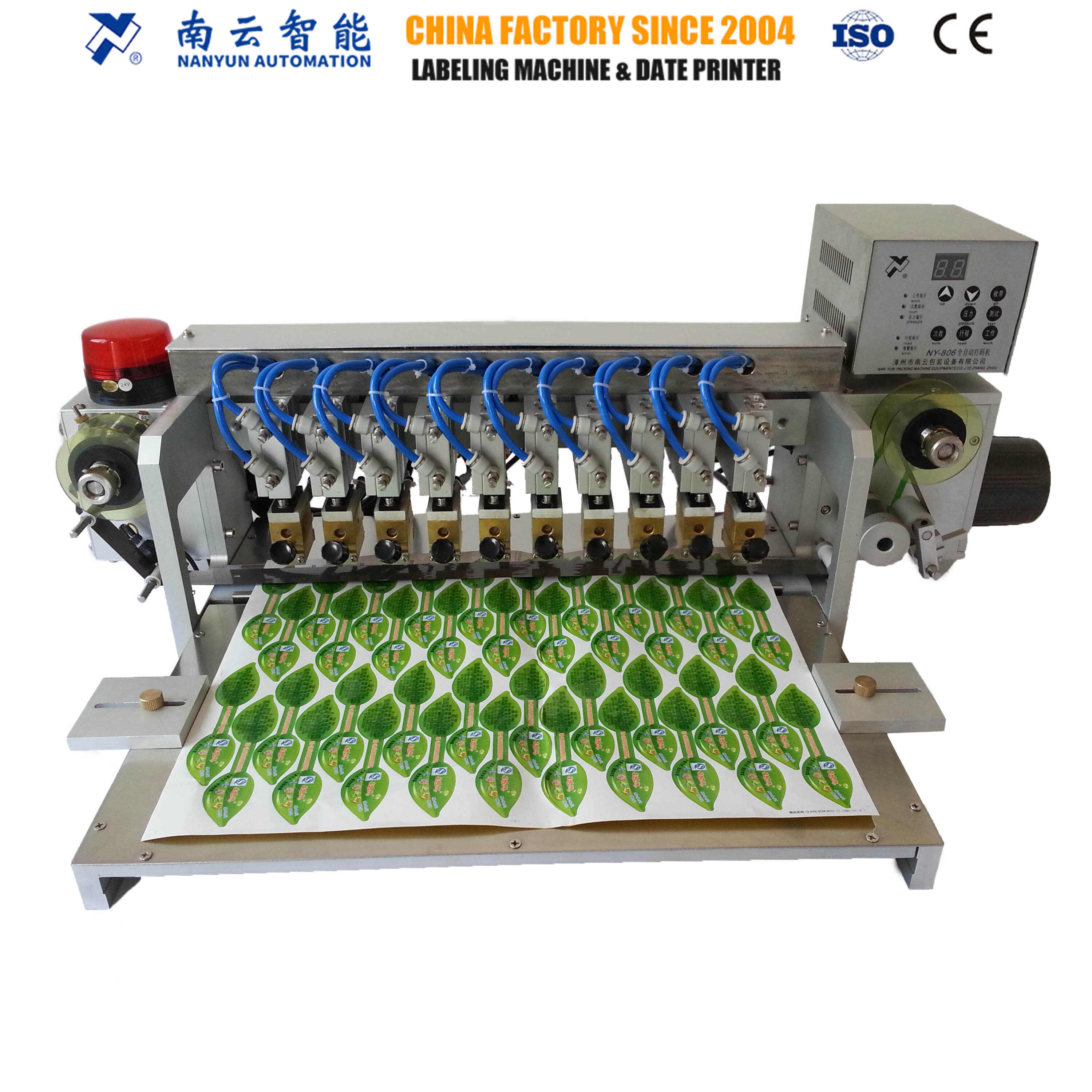

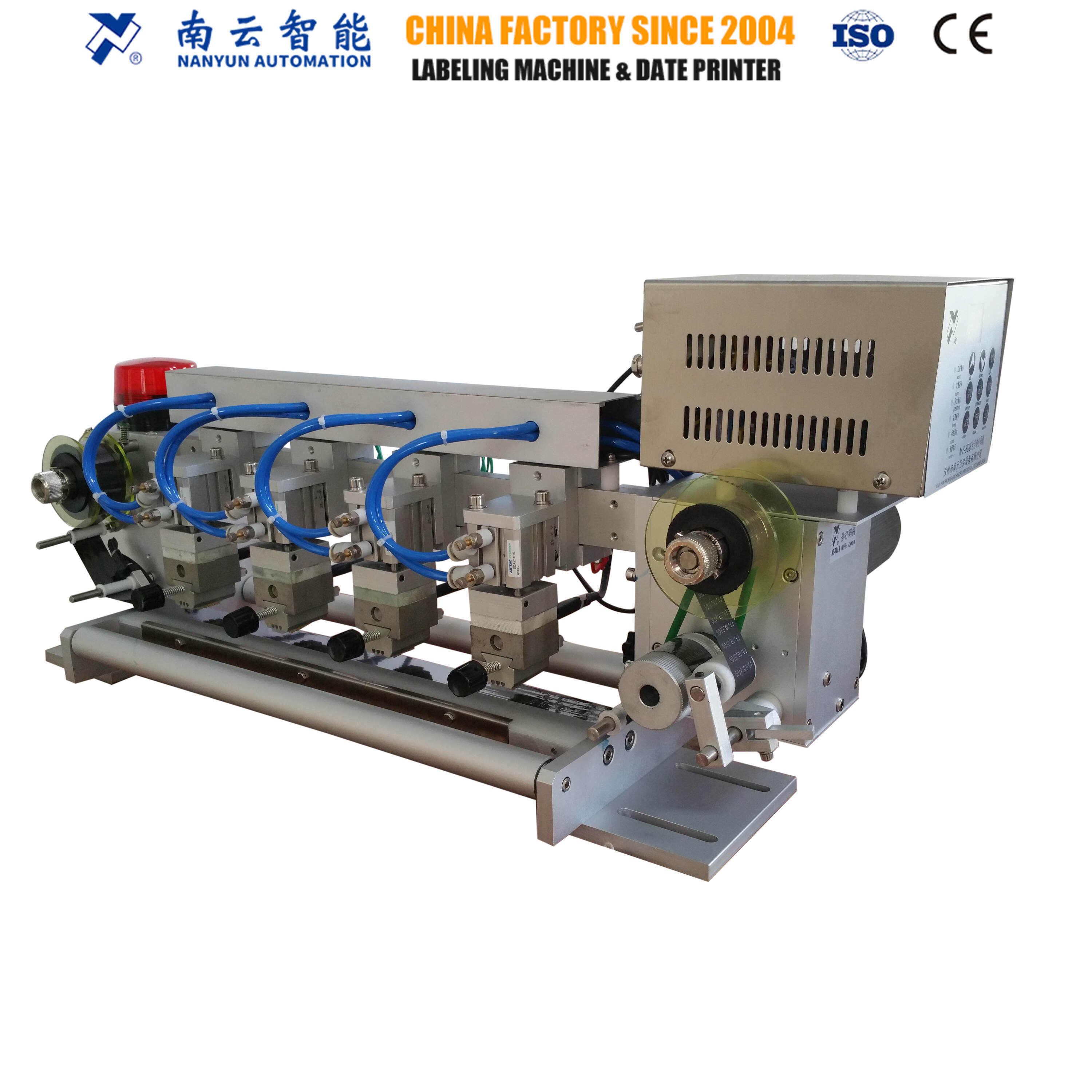

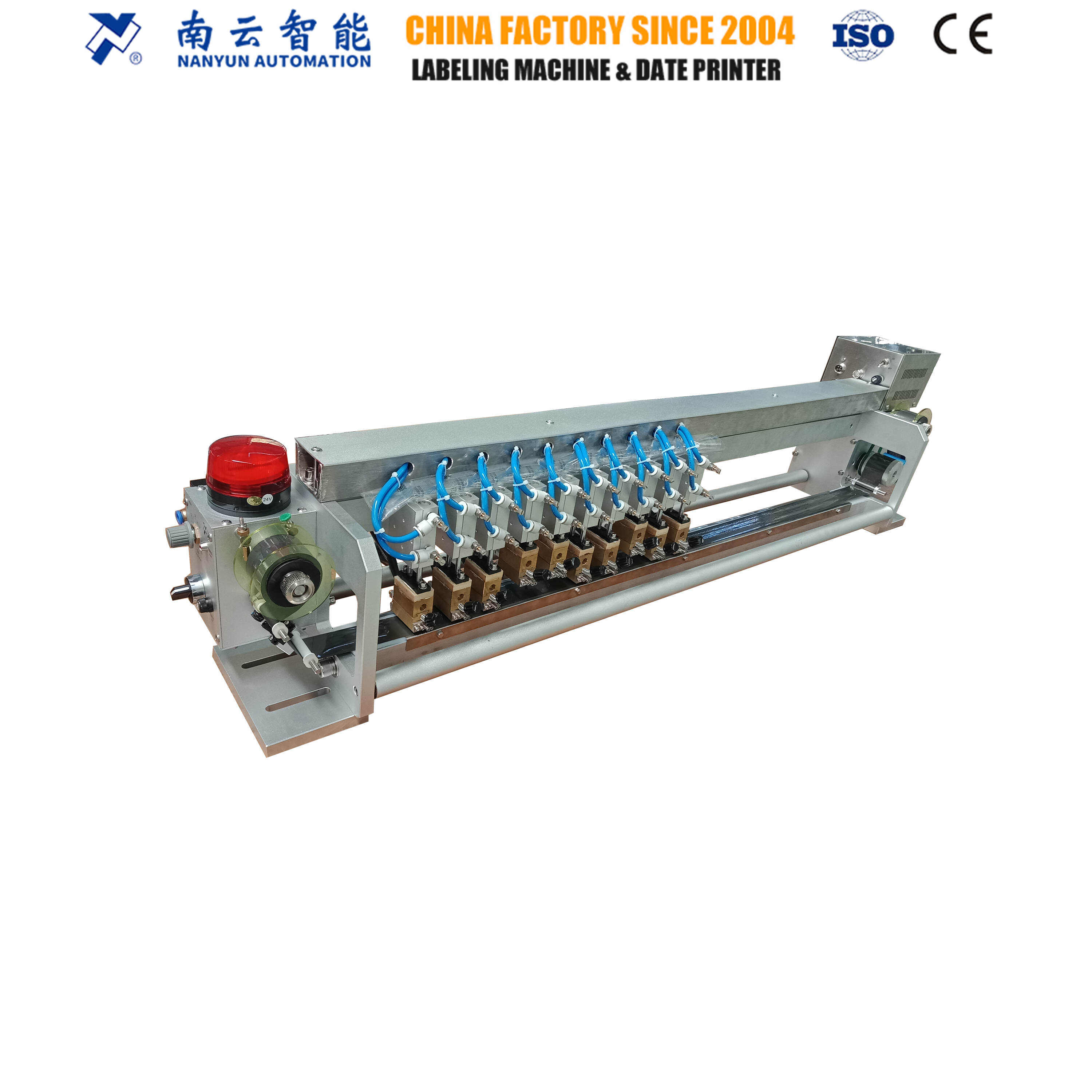

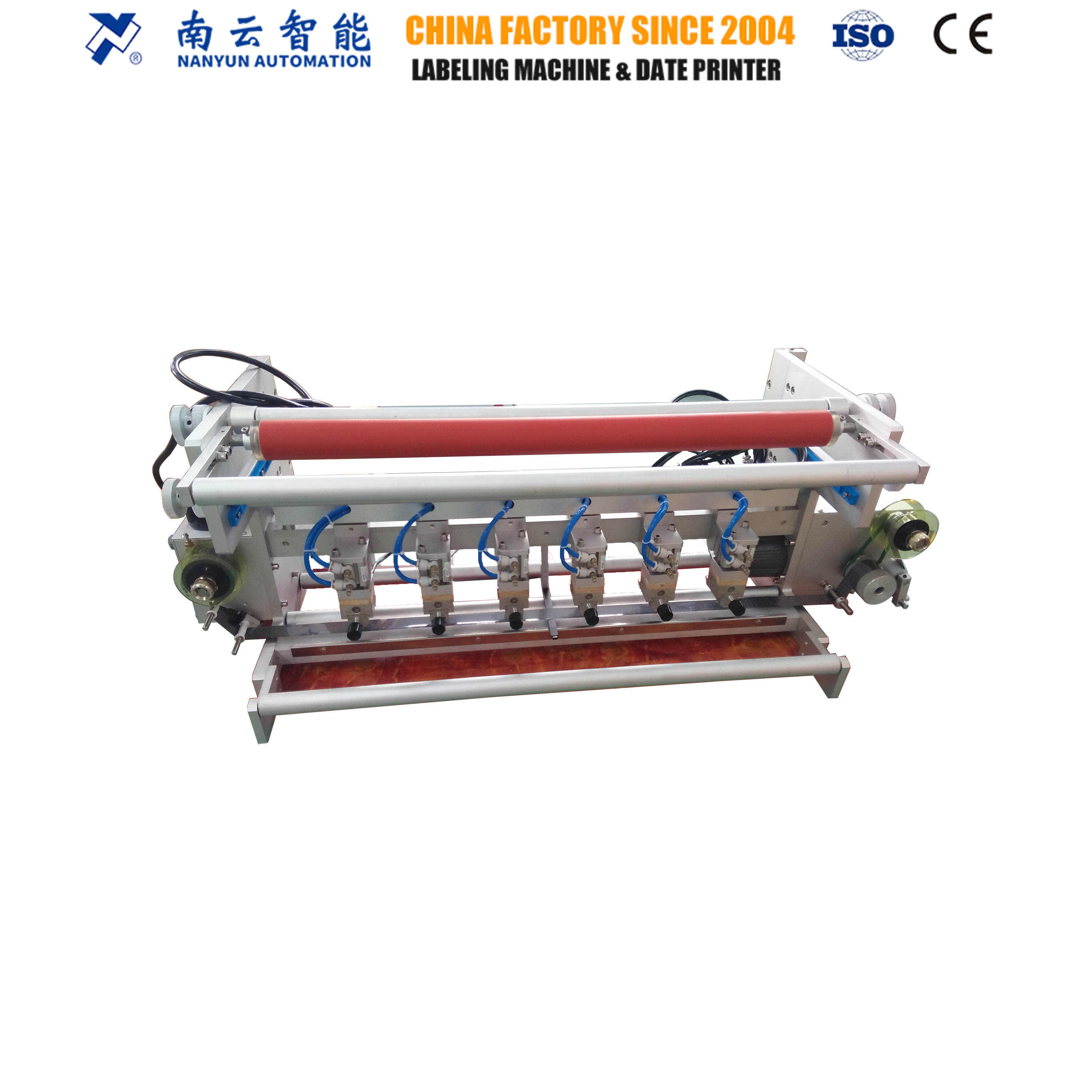

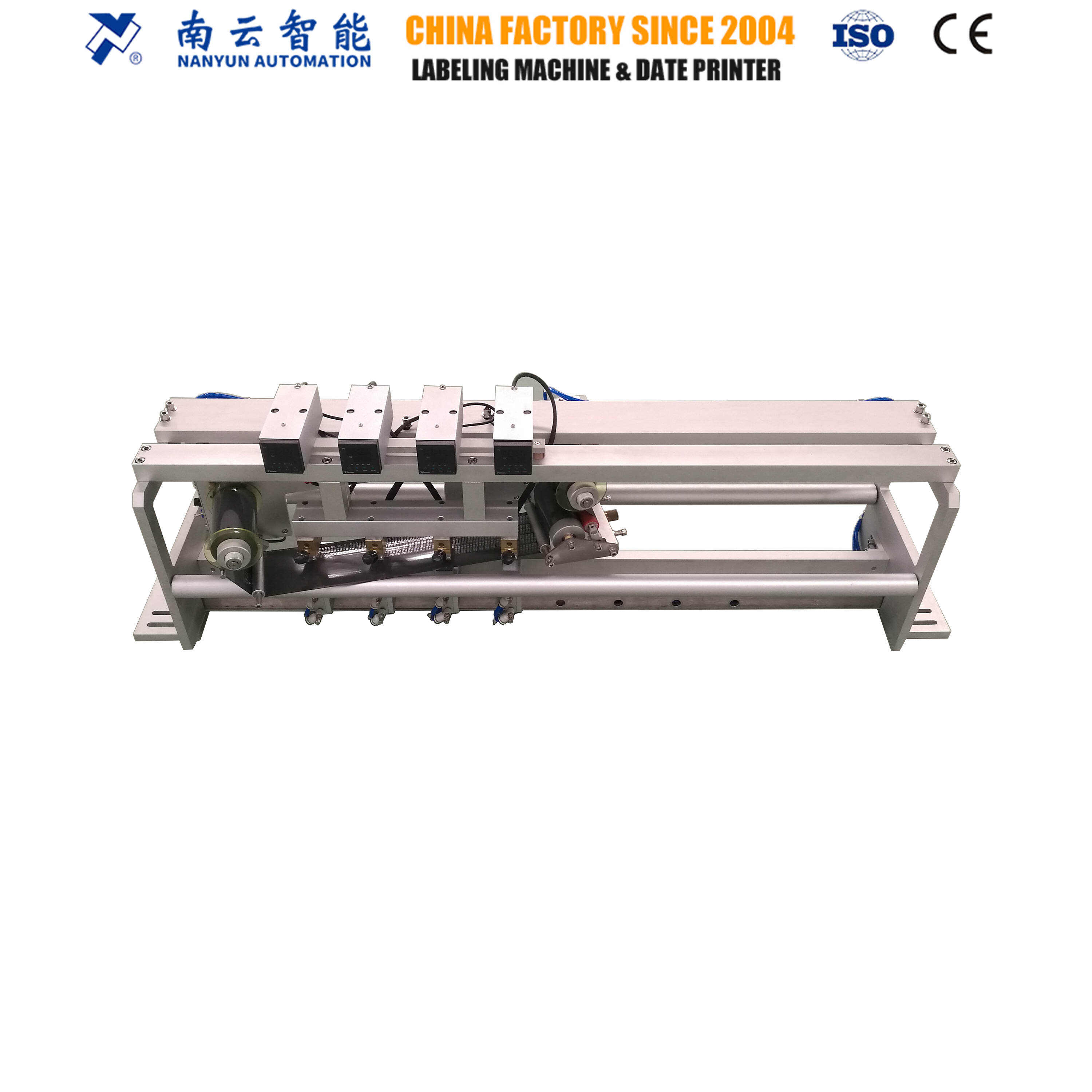

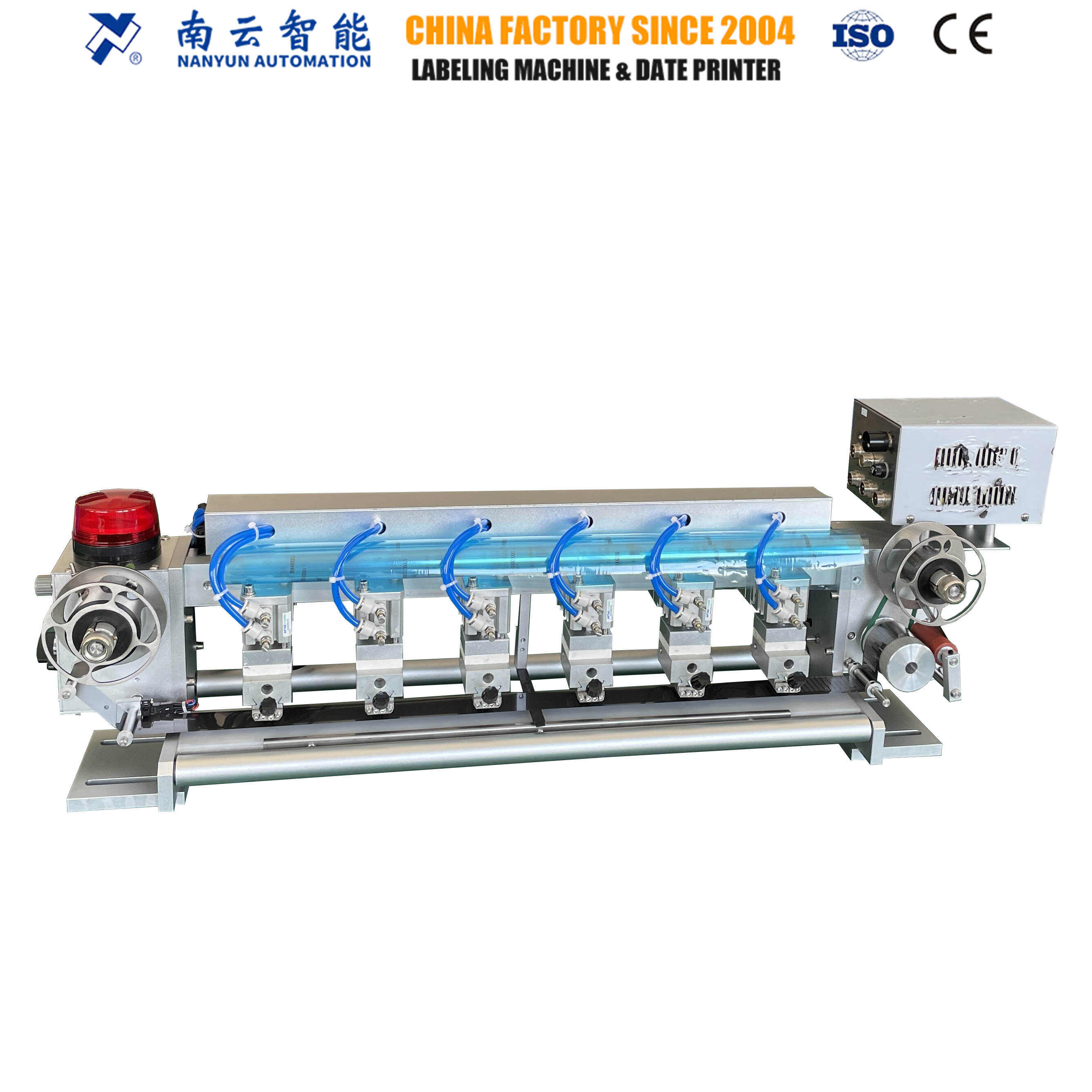

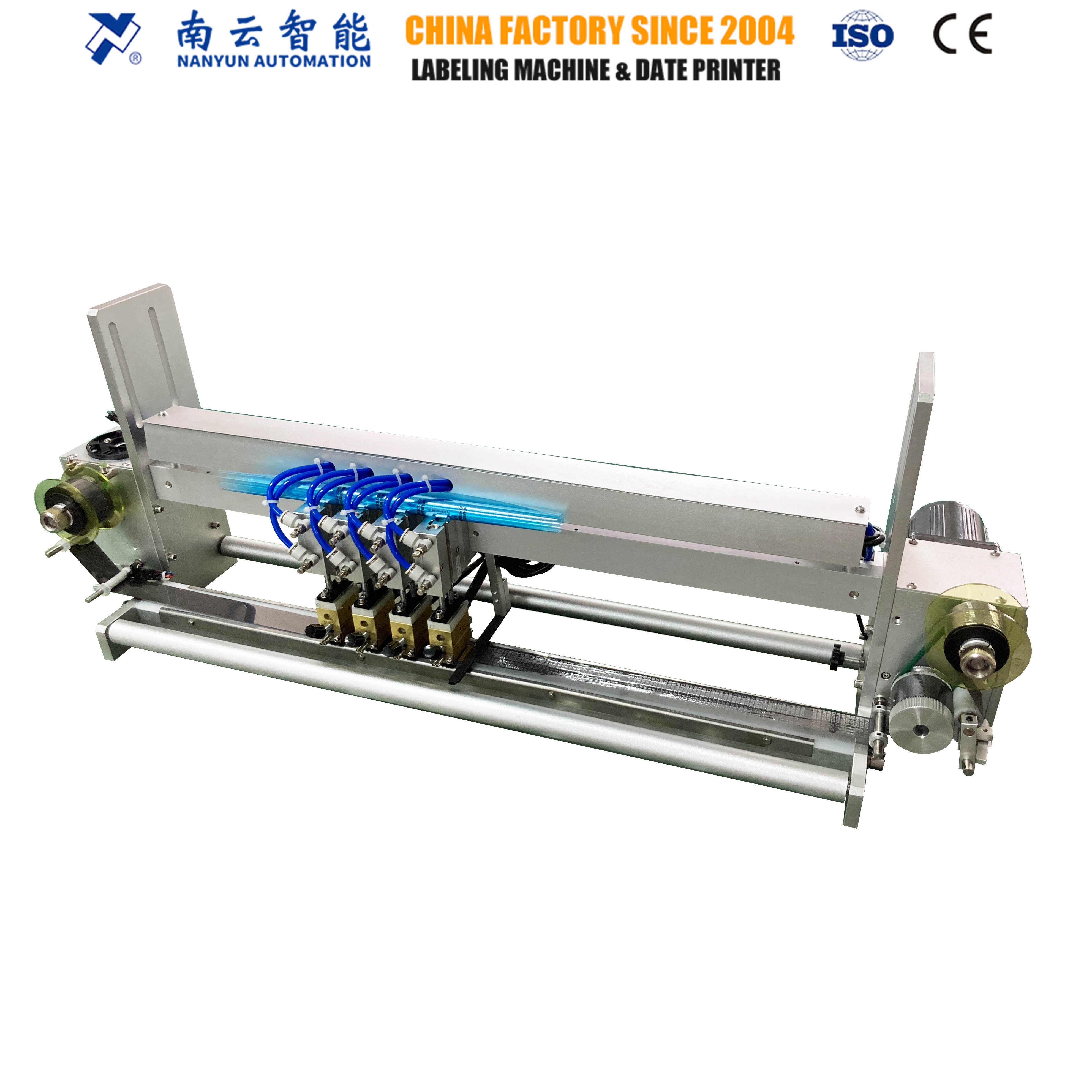

NY-806A Multi-head Hot Ribbon Date Coder



Ⅰ. Applications:

It is applicable to all types of vertical multi-rows packing machines and automatic filing-sealing packing machine for jelly, ice cream, coffee, ham etc.



Ⅱ. Features:

  1. Alarm function of ribbon running out. Use the micro-computer to recycle the ribbon for saving consumable material.
  2. Print space can be adjusted flexibly; the coding speed keeps pace with the packing machine which can make sure the coherence of printing position.
  3. From one-head to 12-head, single-row and double-row are available to meet code-making needs in a wide range.



Ⅲ. Technology Data:

Model

NY-806A

Driver

Motor, Compressed Air

Voltage

220V/50Hz

Power

200W-1200W

Signal required

Contact signal, Photoelectric signal, Micro-switch

Print speed

60 Times/min

Font size

2mm*3mm*15mm, 2mm*4mm*15mm (can be customized)

Consumable

Ribbon

Weight

46kg

Dimension (L*W*H)

1200mm*370mm*350mm  (Remark: 8 heads)

Remarks: Other specification can be customized.
