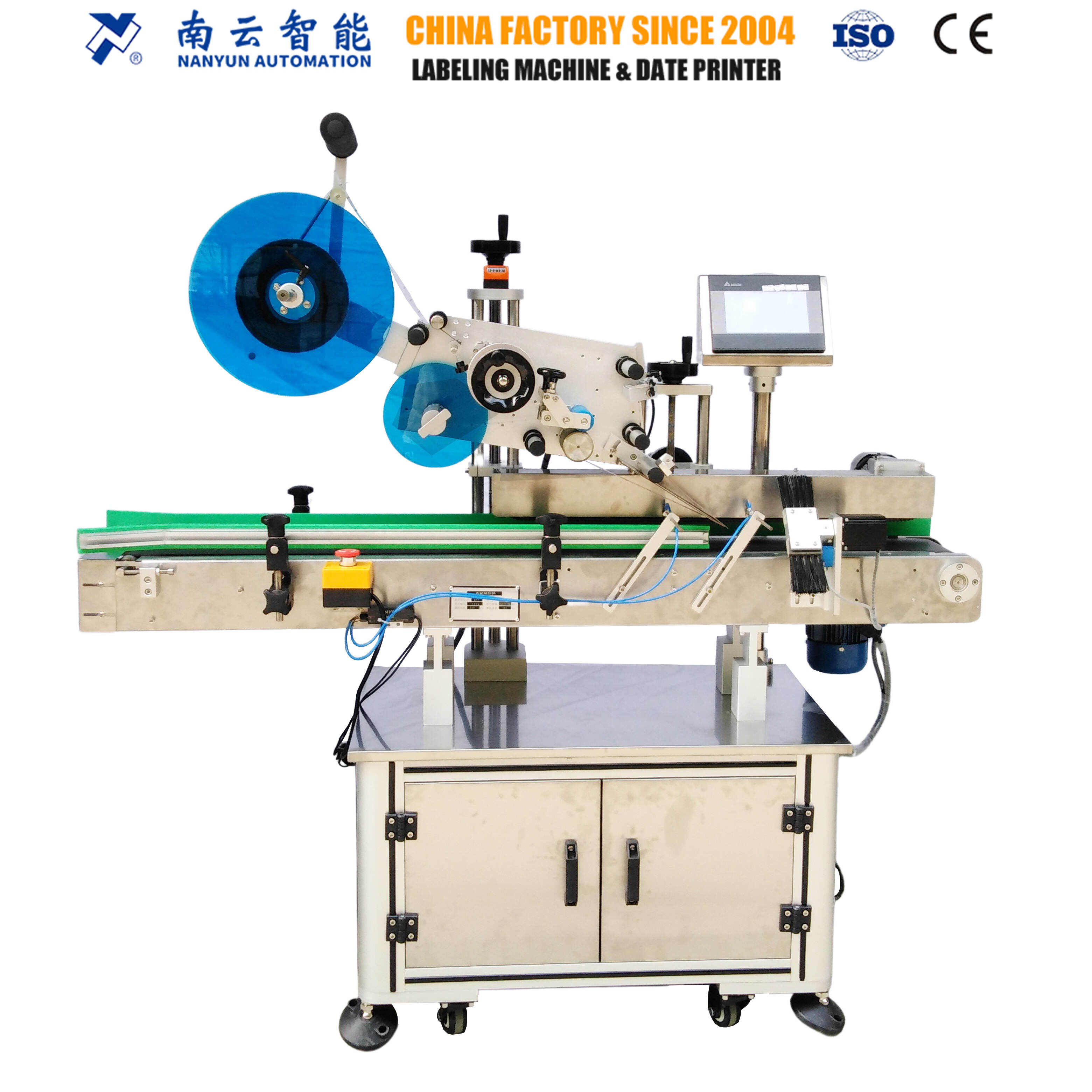

NY-817B Carton Security Seal Labeling Machine
NY-817B Carton Security Seal Labeling Machine
Download User Guide | Video On Youtube | Request A Quote | Shop now on Alibaba
» Description
Designed with label impressing mechanism based on NY-817 standard top labeler model, The NY-817B safety seal labeler is special used to apply
anti-counterfeiting seal labels on the flaps of pharmaceutical boxes. Safety seals provide secure tamper protection and can display additional product information which mainly used in cosmetic, electronic packaging box, printing, daily chemical, food, medicine and other industries.
» Application
- Seal/closure/ L shape security seal labeling on the carton’s edge.
- Simple top labeling of clamshell or any shrink-wrapped products.
- Top labeling with zebra label printer/TTO printer for a wide variety of products that require ingredient labels.
- Top hold down conveyor for light weight box is optional. Often integrate with cartoning system.
♦ Example/Samples: Medicine Boxes / Rectangular Cartons
» Specifications:
|
Model |
NY-817B |
|
Label Accuracy |
±1mm (excluding product and label error) |
|
Label Speed |
0-150 pcs/min (related to product and label size). |
|
Label Width |
10 mm to 110/150/180 mm |
|
Product Size (L x W x H) |
(40-400)x(40-200)x(50-300)mm (can customize) |
|
Inside reel Ø |
76mm |
|
Outside reel Ø |
≤ 300 mm |
|
Conveyor Width |
250mm |
|
Conveyor Length |
2 meters |
|
Working Height |
850 mm (+/-30 mm) |
|
Power Supply |
220V, 50/60 Hz, Single Phase, 0.95kw |
|
Machine Size (L x W x H) |
1500 x 650x 1350mm |
|
Weight |
Approx 330kgs |
|
Compressed Air |
0.5~0.7Mpa, 0.28CBM/min (optional) |
|
Note: If machine are customized, the above data may vary. |
|
» Features
✔ Stepper motors for fast and accurate labeling.
✔ PLC+HMI Touch screen control system with job memory.
✔ Photo eye sensors for label gap/container detection.
✔ Easy adjusting hand wheels for quick setup and easy changeover.
✔ Production preset function, production run counter, extremely efficient.
✔ Main body is made of SUS304 stainless steel and aluminum alloy.
✔ CE Approved, meet the strict ISO 9001 quality control procedures.
✔ Label head dispenses labels with widths of up to 110, 180 or 200 mm.
✔ A range of shapes and designs available for OEM, can flexibly apply labels on the top, bottom, sides, and corners of the product.
» Optional Accessories (If required by customer at extra cost)
- Applicator For Irregular Surfaces
- Print Units (Hot Stamp, Thermal Transfer, Ink Jet, Laser)
- Clear Label Sensor For Sensing Transparent Film Labels
