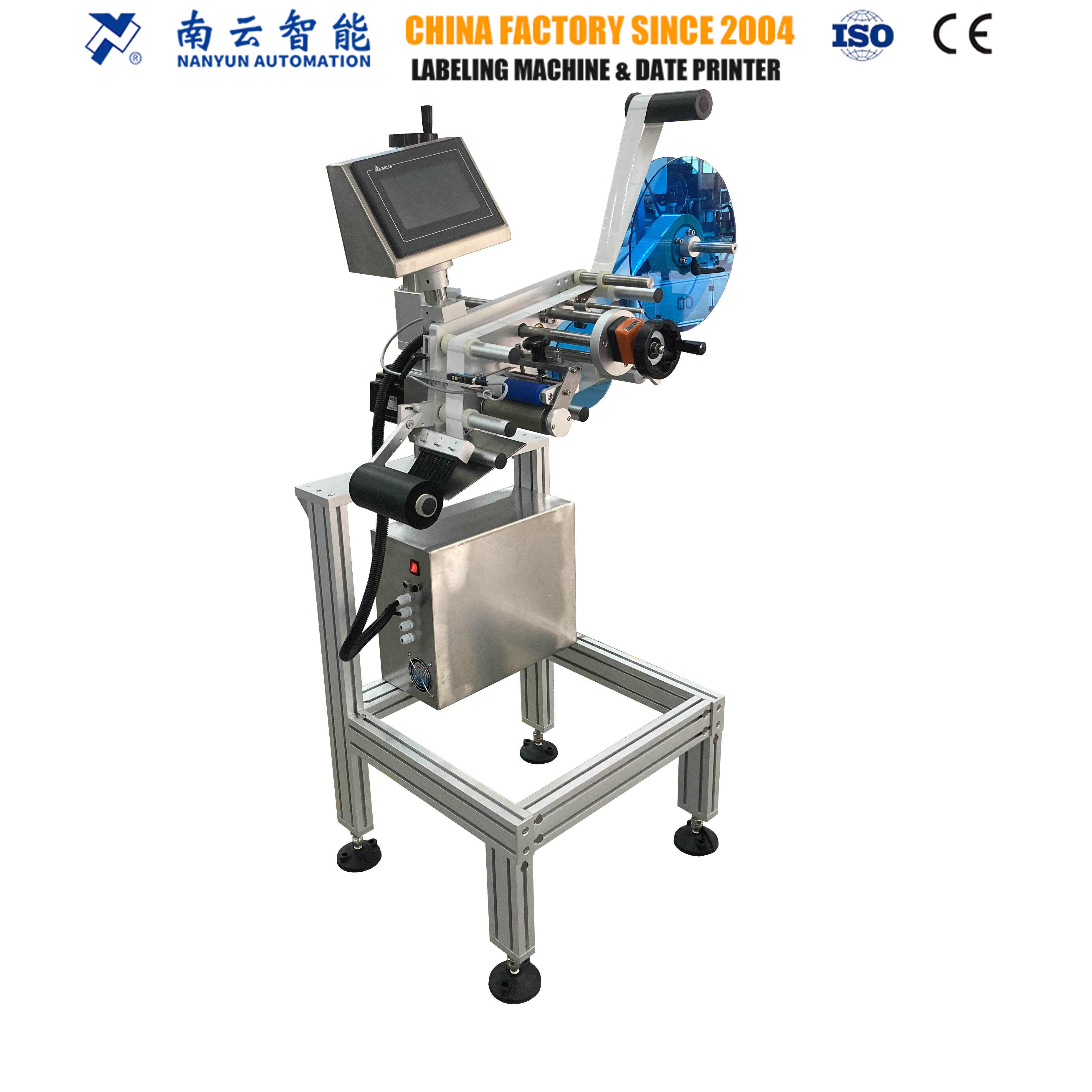

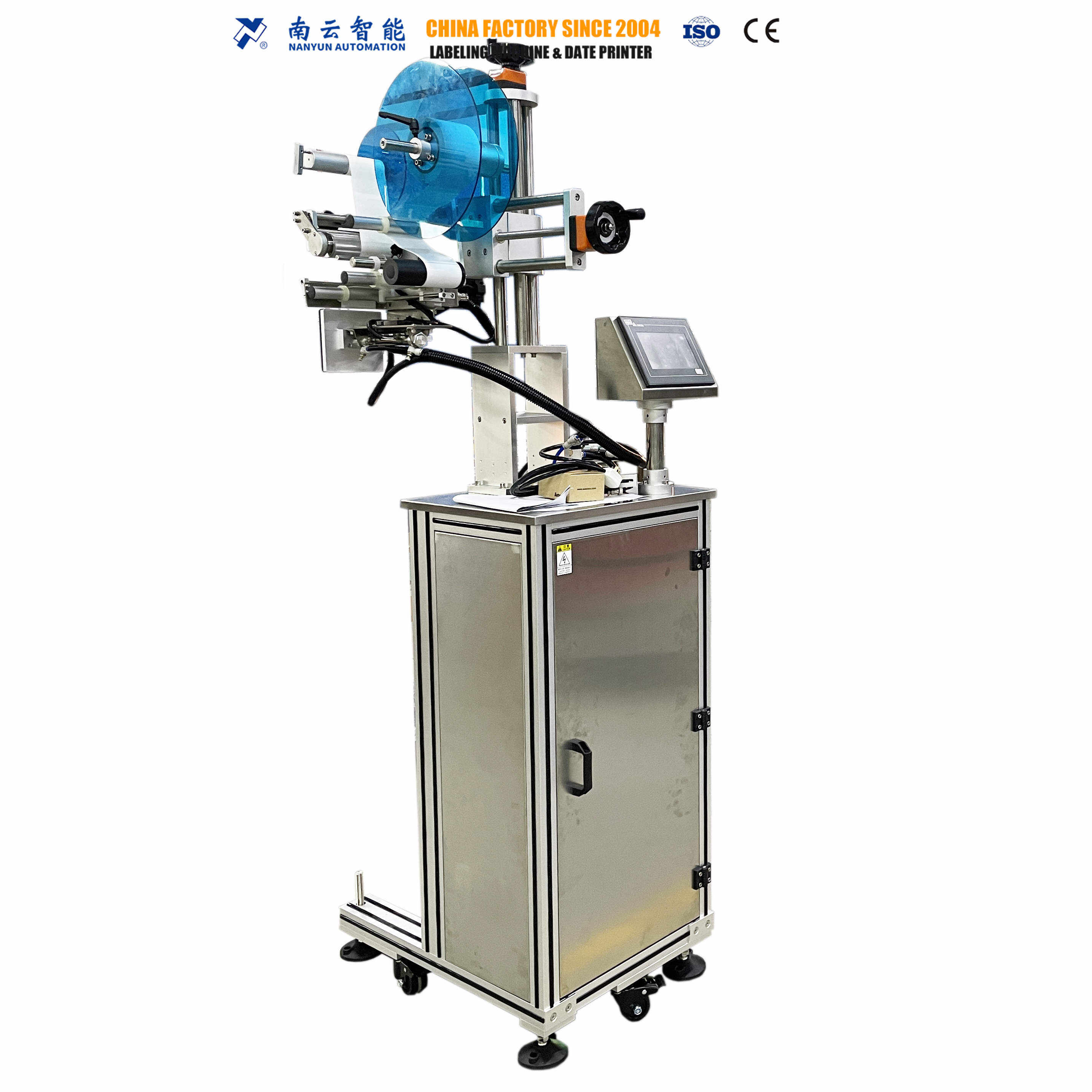

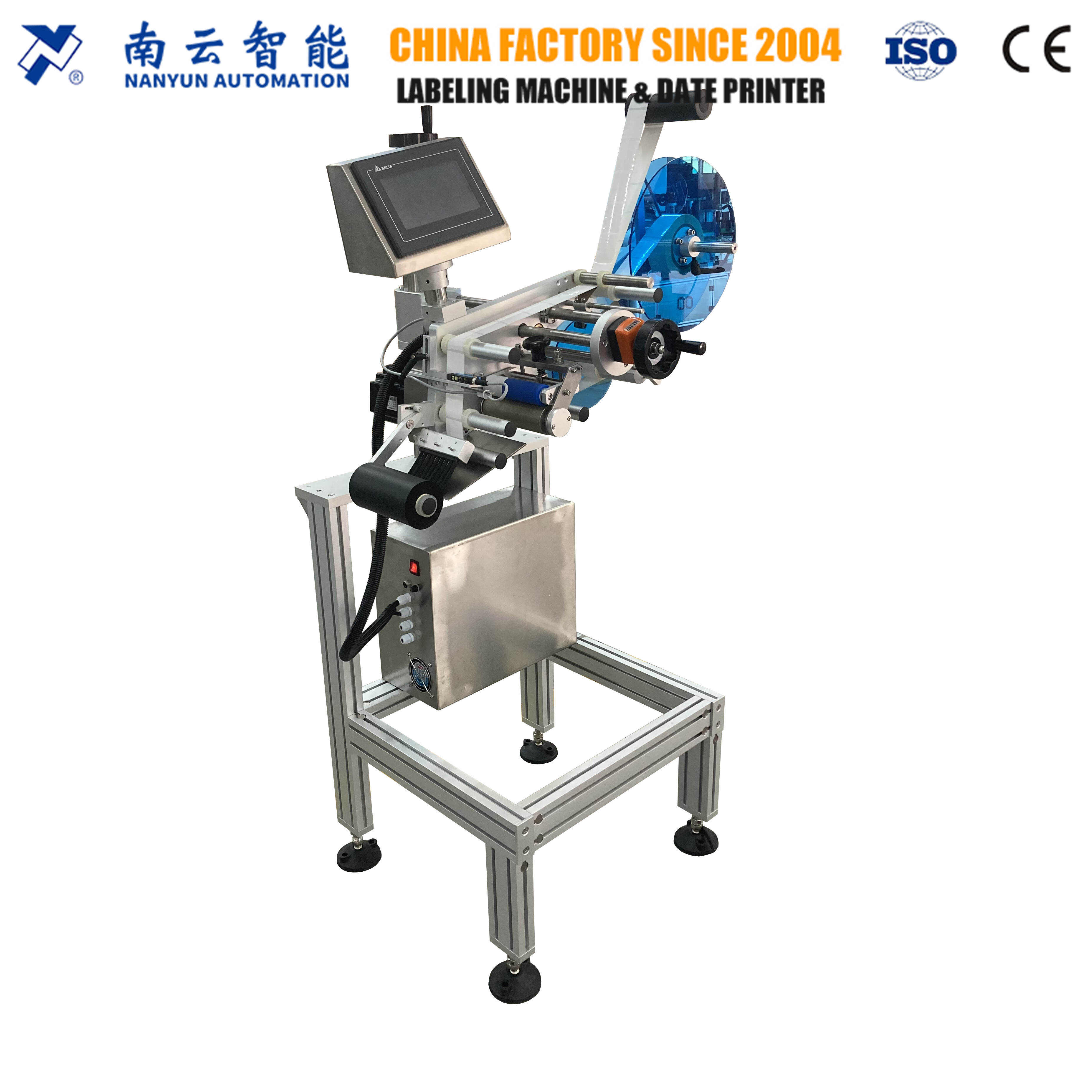

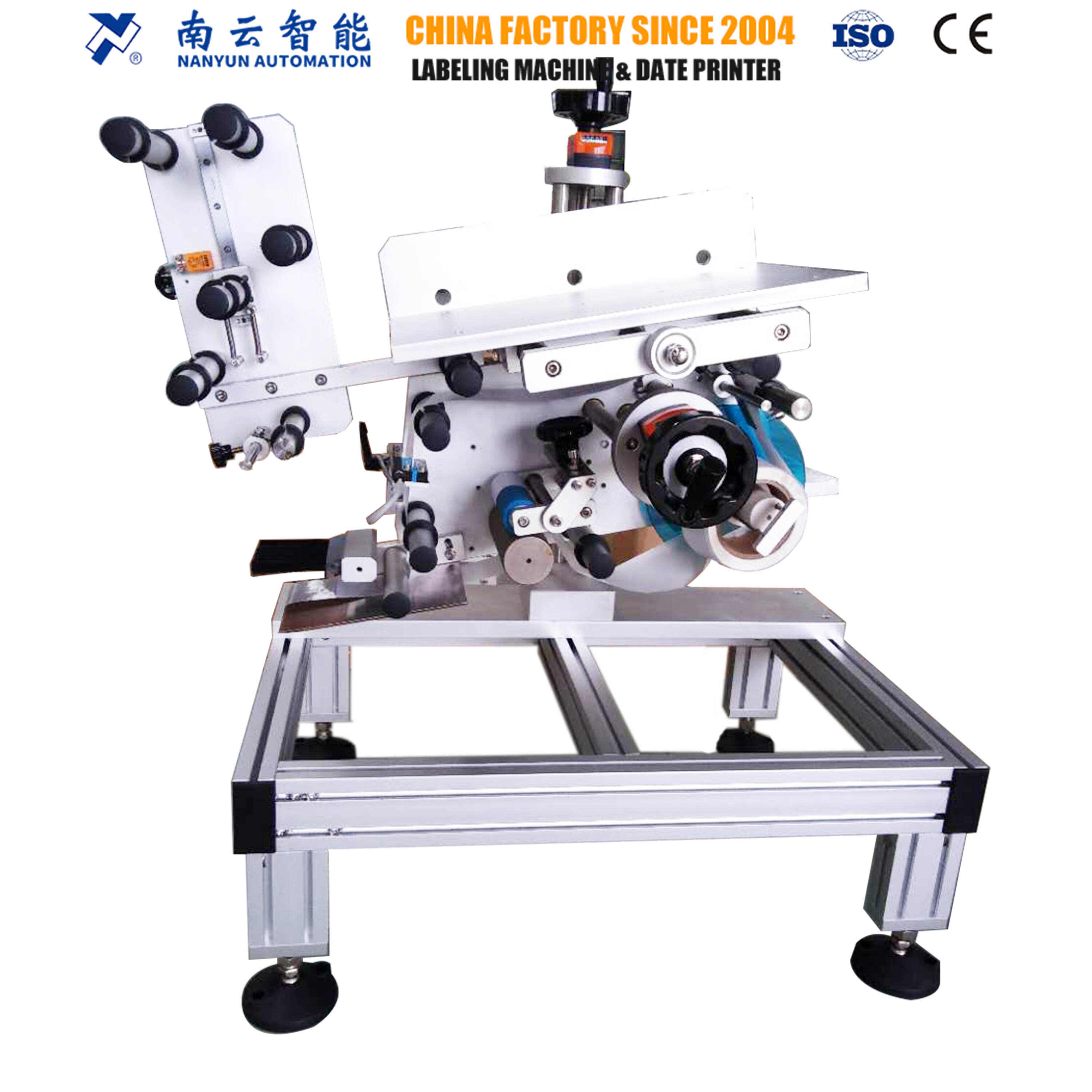

NY-817M Movable Standalone Top Labeler
Download User Guide | Video On Youtube | Request A Quote | Shop now on Alibaba
» Description

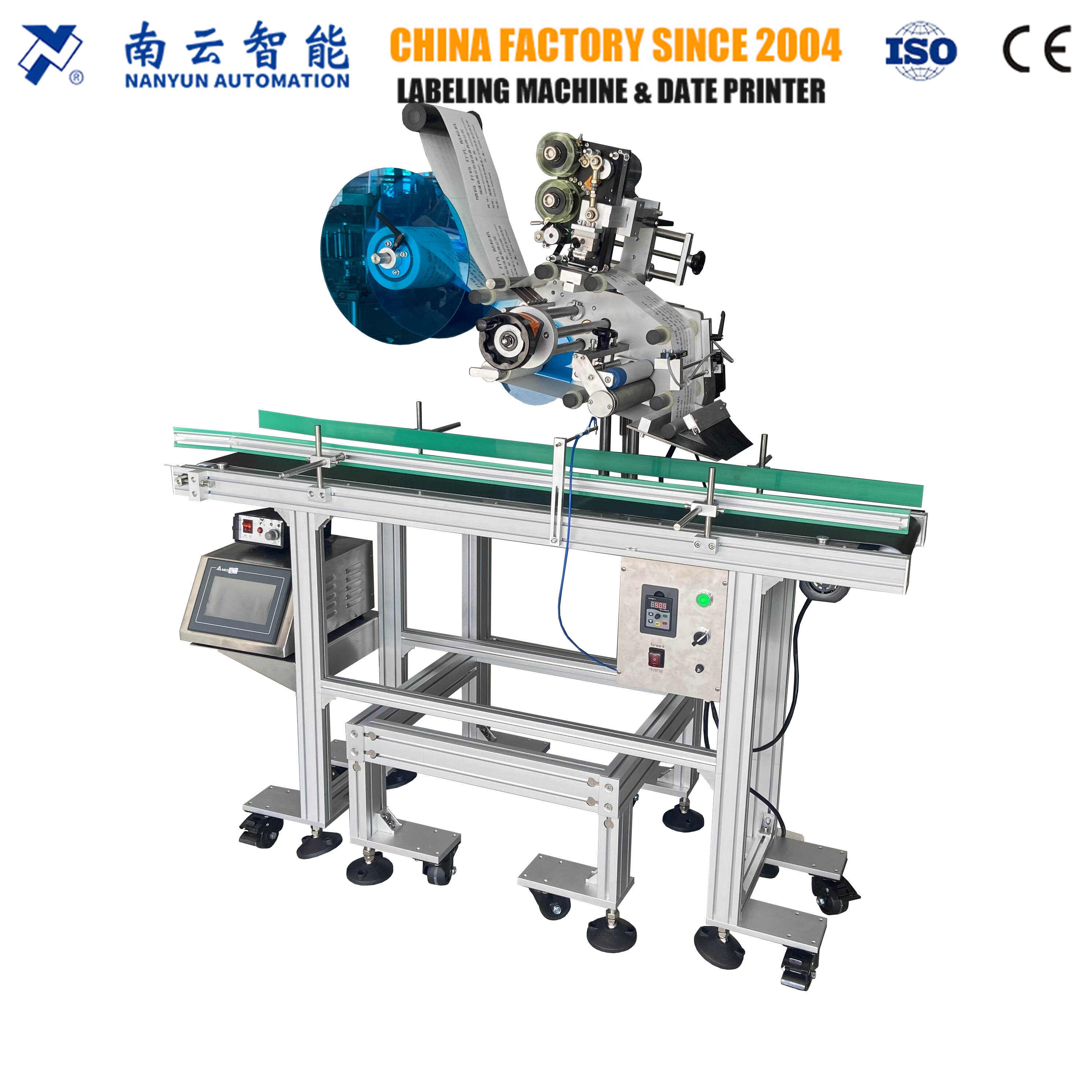

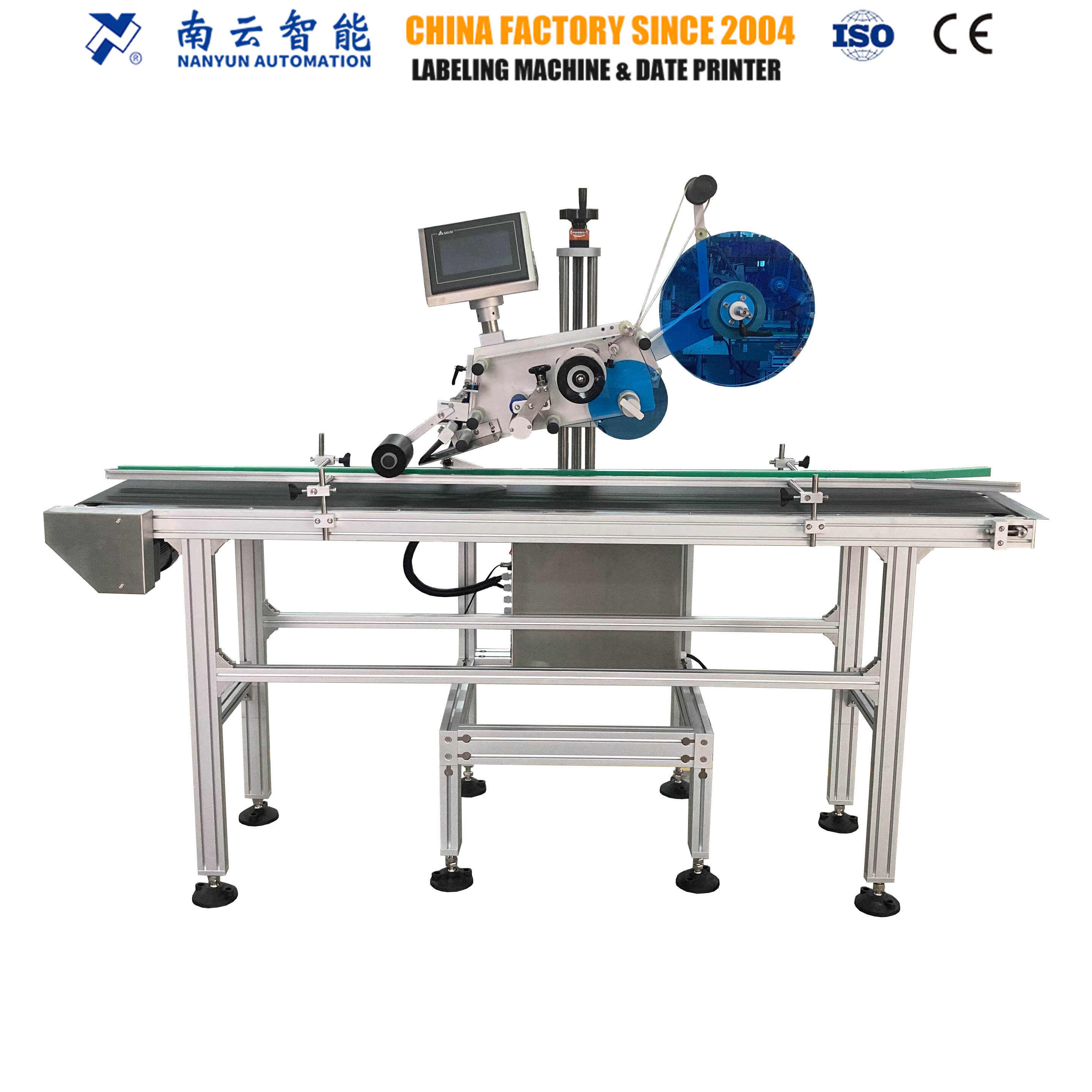

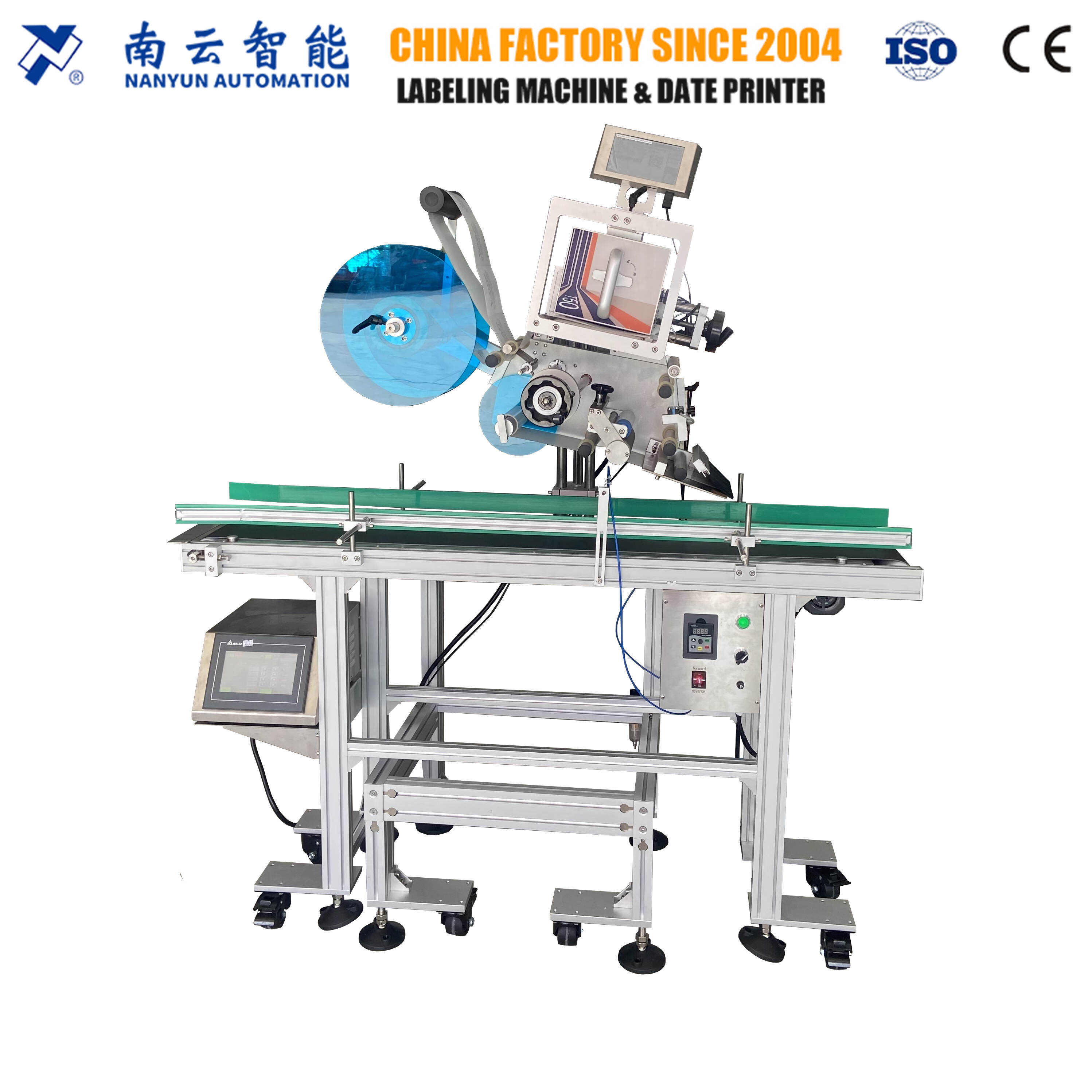

NY-817M standalone label applicator machine is mainly utilized for labeling a product in bulk quantities on the existing production line or packing conveyor. It has a powerful sensor in order to detect the product when it moves down from the conveyor, and thereby activate the application of the label at the appropriate time.
» Application
- Independent basement, to place the application wherever it’s needed.
- Reduced costs and high features, with maximum labeling speed of 23 meters/min.
- Outstanding for their easy handling and quick incorporation into the production plant.
♦ Example/Samples: Biscuit Boxes/Edible Oil Cartons
» Specifications:
|
Technical Data |
NY-817M |
|
Label Accuracy |
±1mm (excluding product and label error) |
|
Label Speed |
0-150 pcs/min (related to product and label size). |
|
Label Width |
10 mm to 110/150/180 mm |
|
Product Size (L x W x H) |
(40-400)x(40-200)x(50-300)mm (can customize) |
|
Inside reel Ø |
76mm |
|
Outside reel Ø |
≤ 300 mm |
|
Working Height |
Adjustable |
|
Power Supply |
220V, 50/60 Hz, Single Phase, 0.50kw |
|
Machine Size (L x W x H) |
850 x 650x 1500mm (can customize) |
|
Weight |
Approx 120kgs |
|
Compressed Air |
0.5~0.7Mpa, 0.28CBM/min (optional) |
|
Note: If machine are customized, the above data may vary. |
|
» Features
✔ Stepper motors for fast and accurate labeling.
✔ PLC+HMI Touch screen control system with job memory.
✔ Photo eye sensors for label gap/container detection.
✔ Easy adjusting hand wheels for quick setup and easy changeover.
✔ Production preset function, production run counter, extremely efficient.
✔ Main body is made of SUS304 stainless steel and aluminum alloy.
✔ CE Approved, meet the strict ISO 9001 quality control procedures.
✔ Label head dispenses labels with widths of up to 110, 180 or 200 mm.
✔ A range of shapes and designs available for OEM, can flexibly apply labels on the top, bottom, sides, and corners of the product.
» Optional Accessories (If required by customer at extra cost)

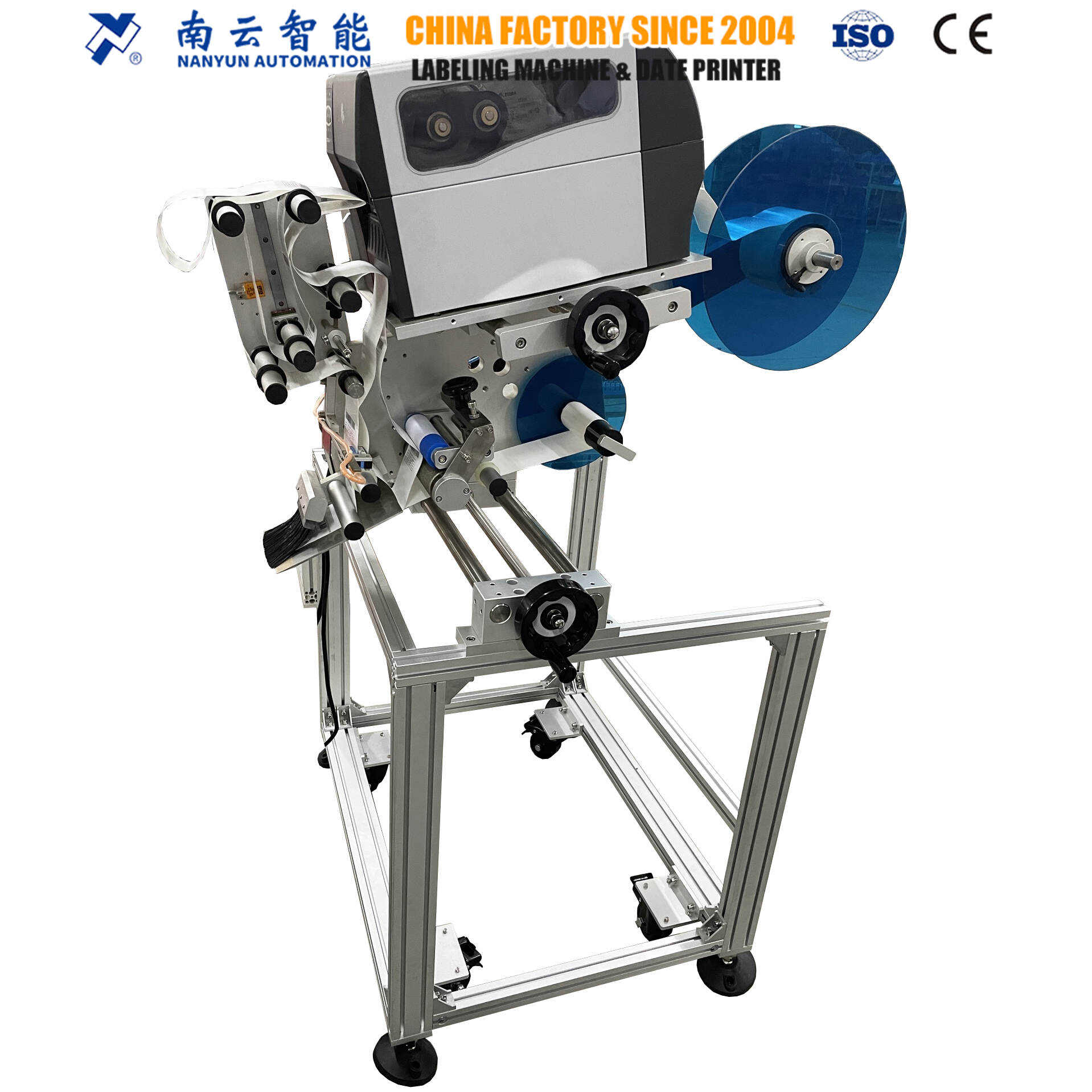

- Print Units (hot stamp, thermal transfer, ink jet, laser)
- Clear Label Sensor for Sensing Transparent Film Labels
- Label Covering Brush or Sponge Roll For Irregular Surfaces
