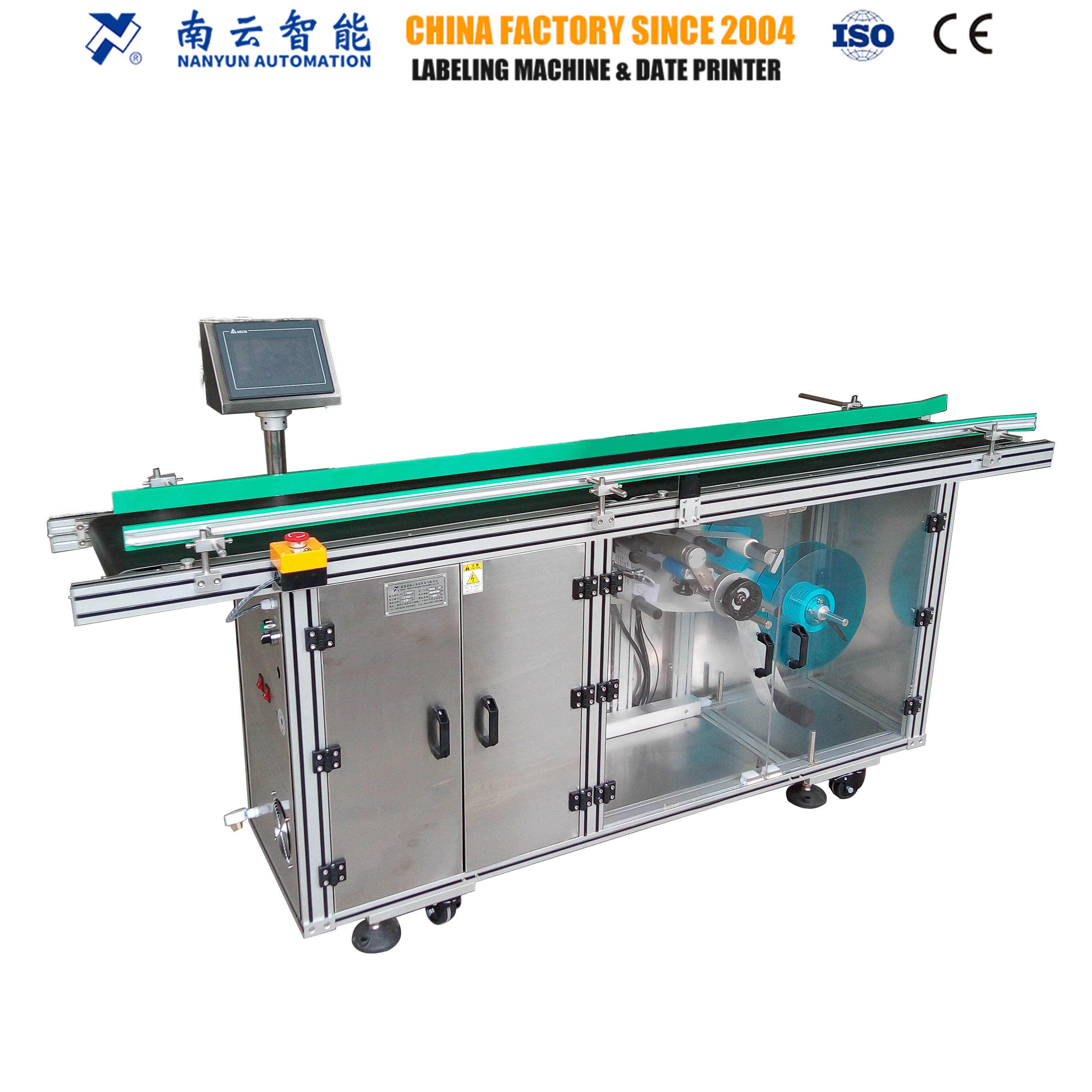

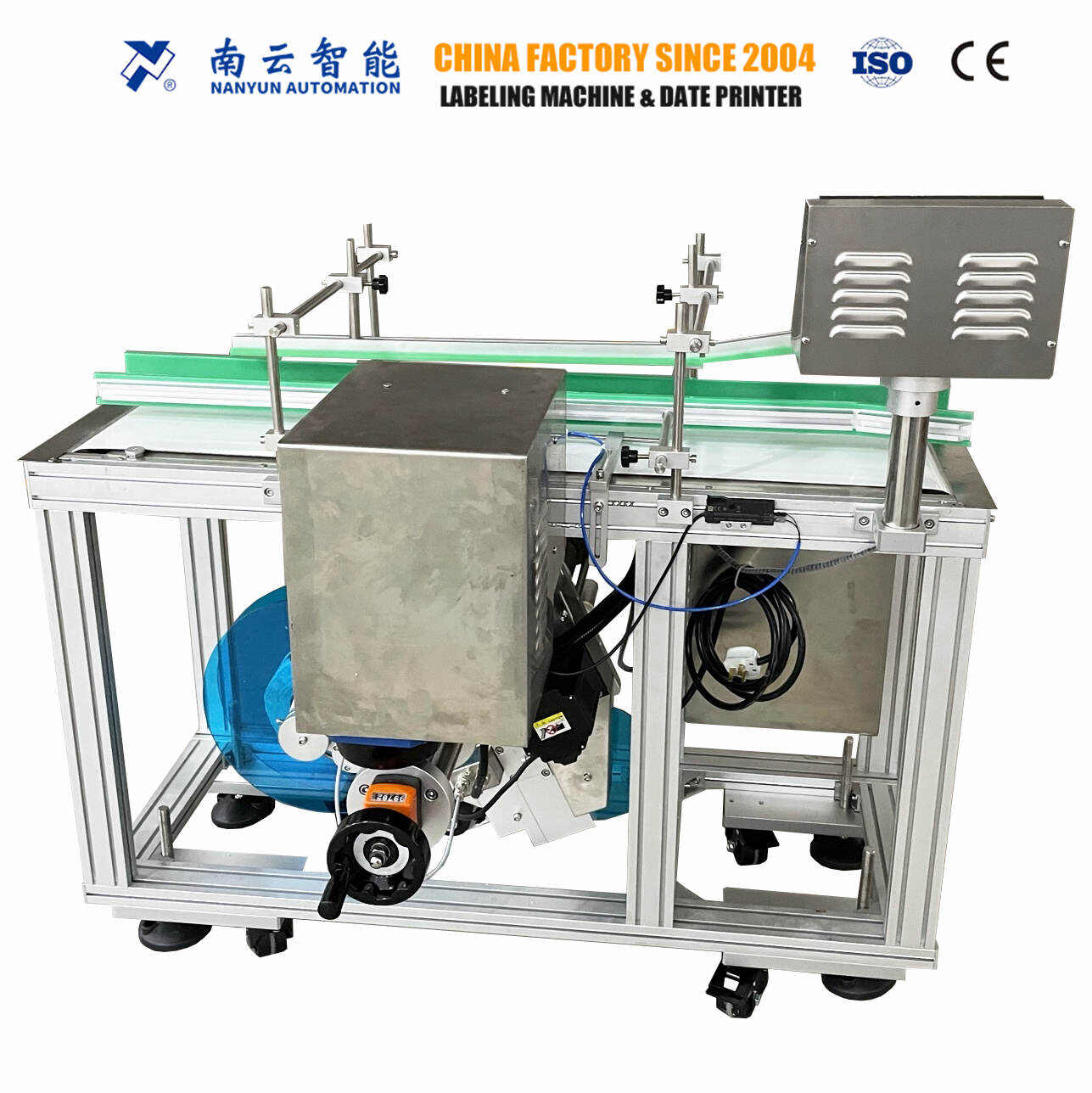

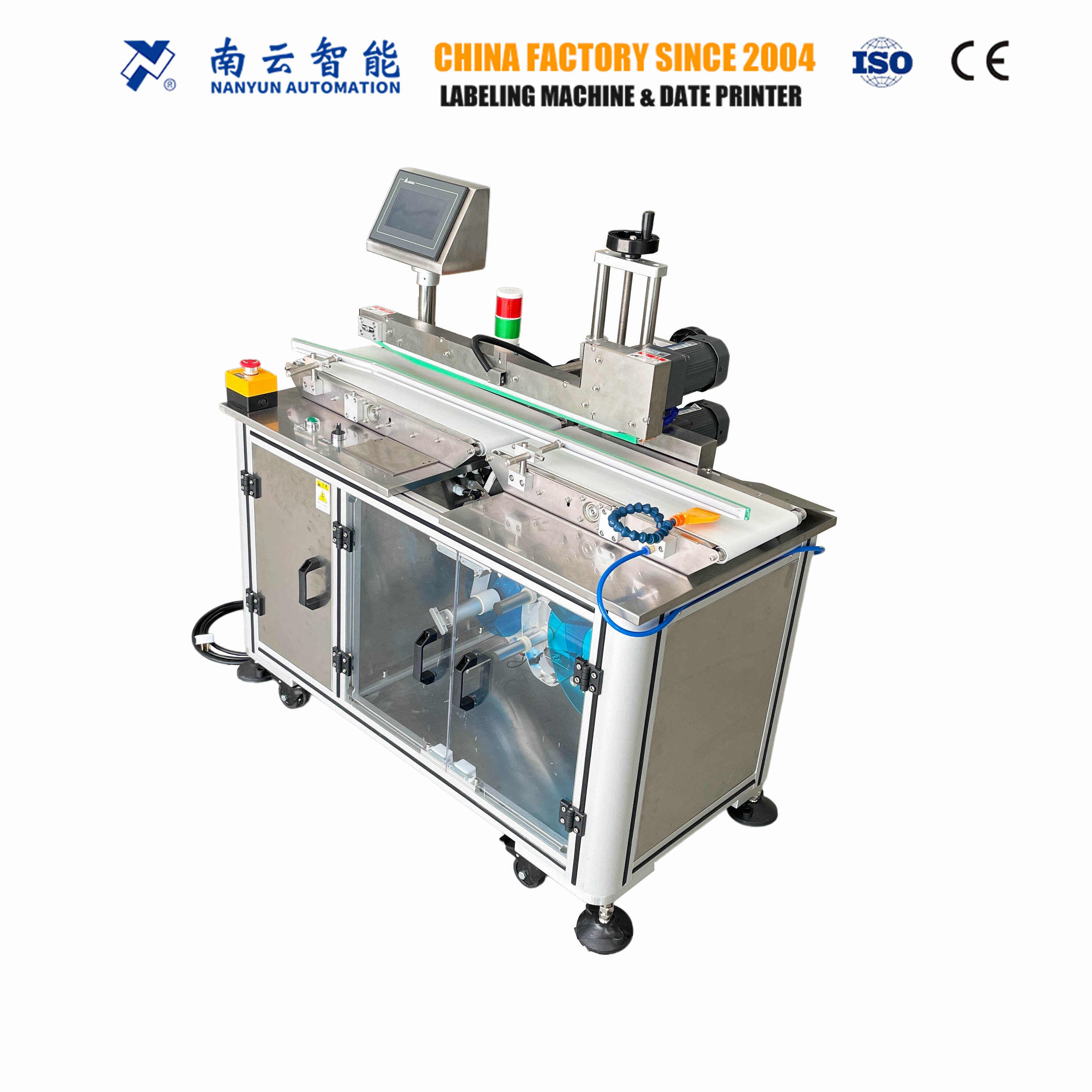

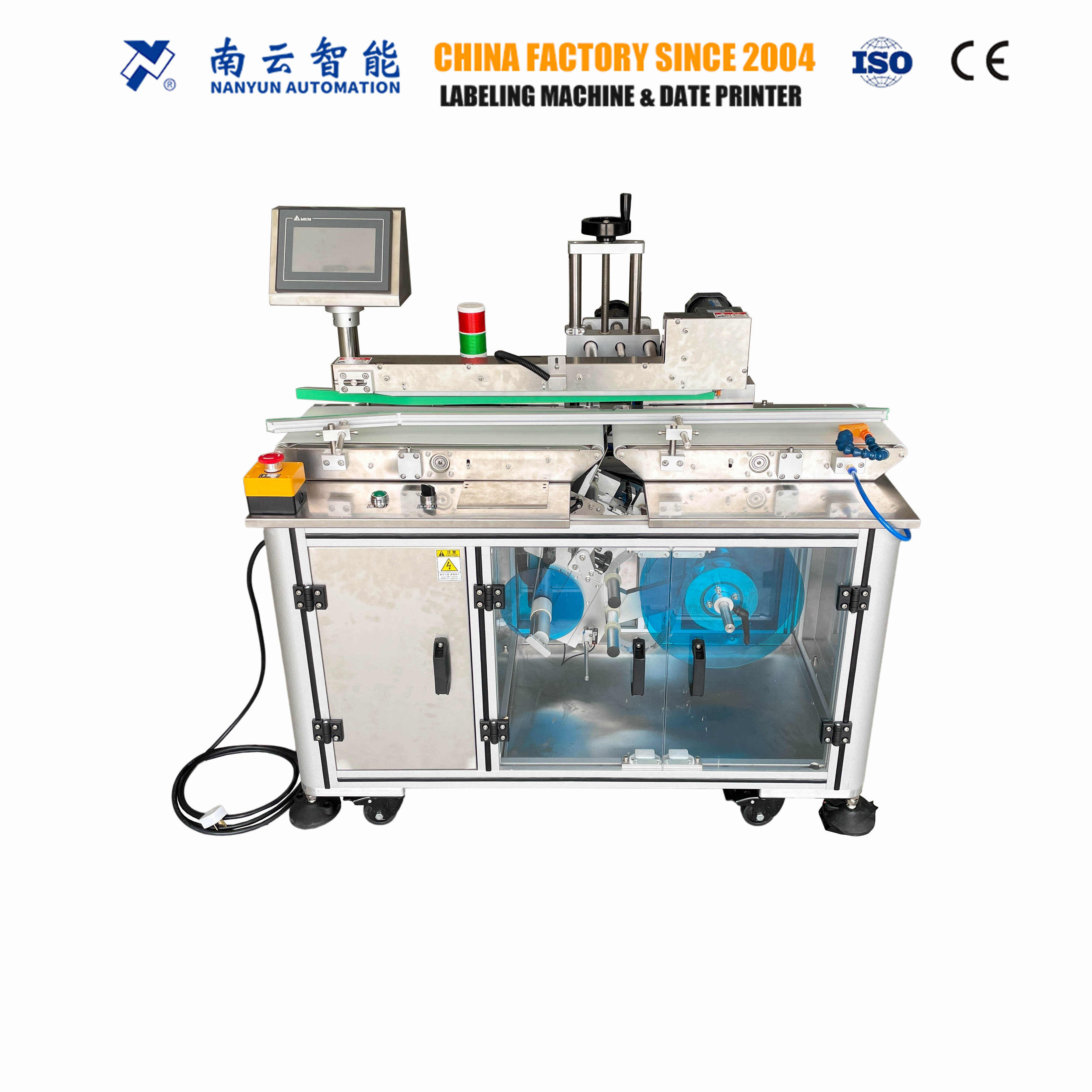

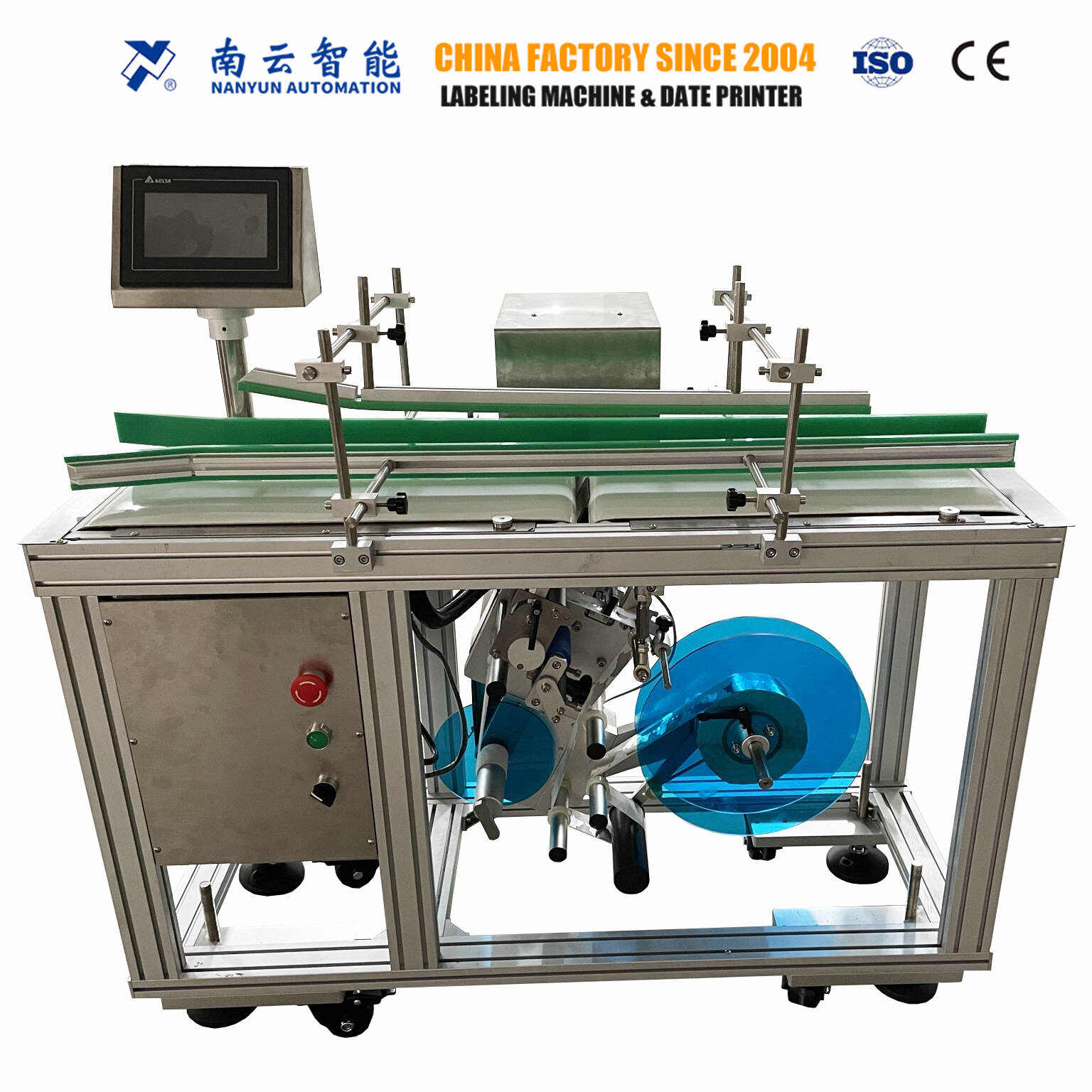

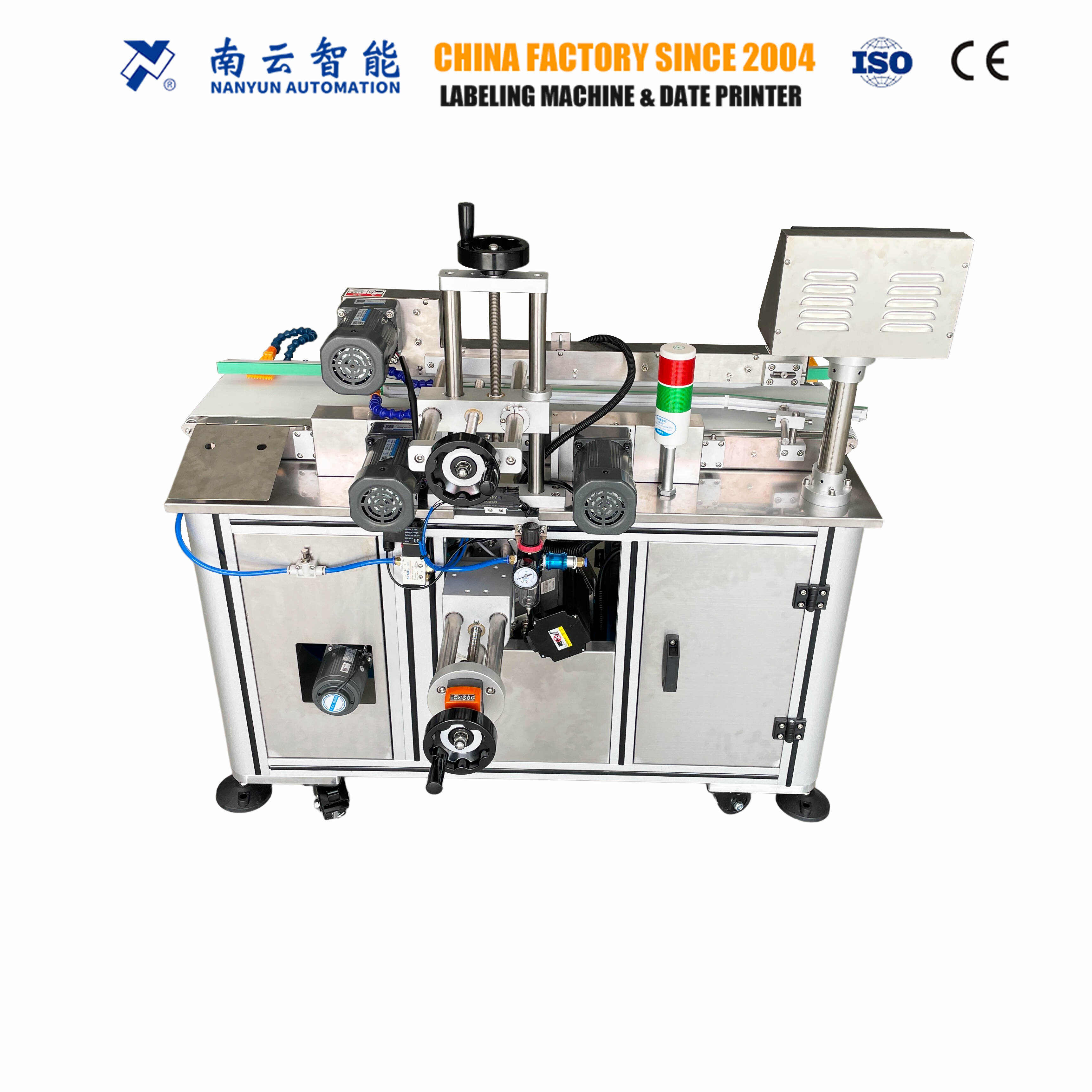

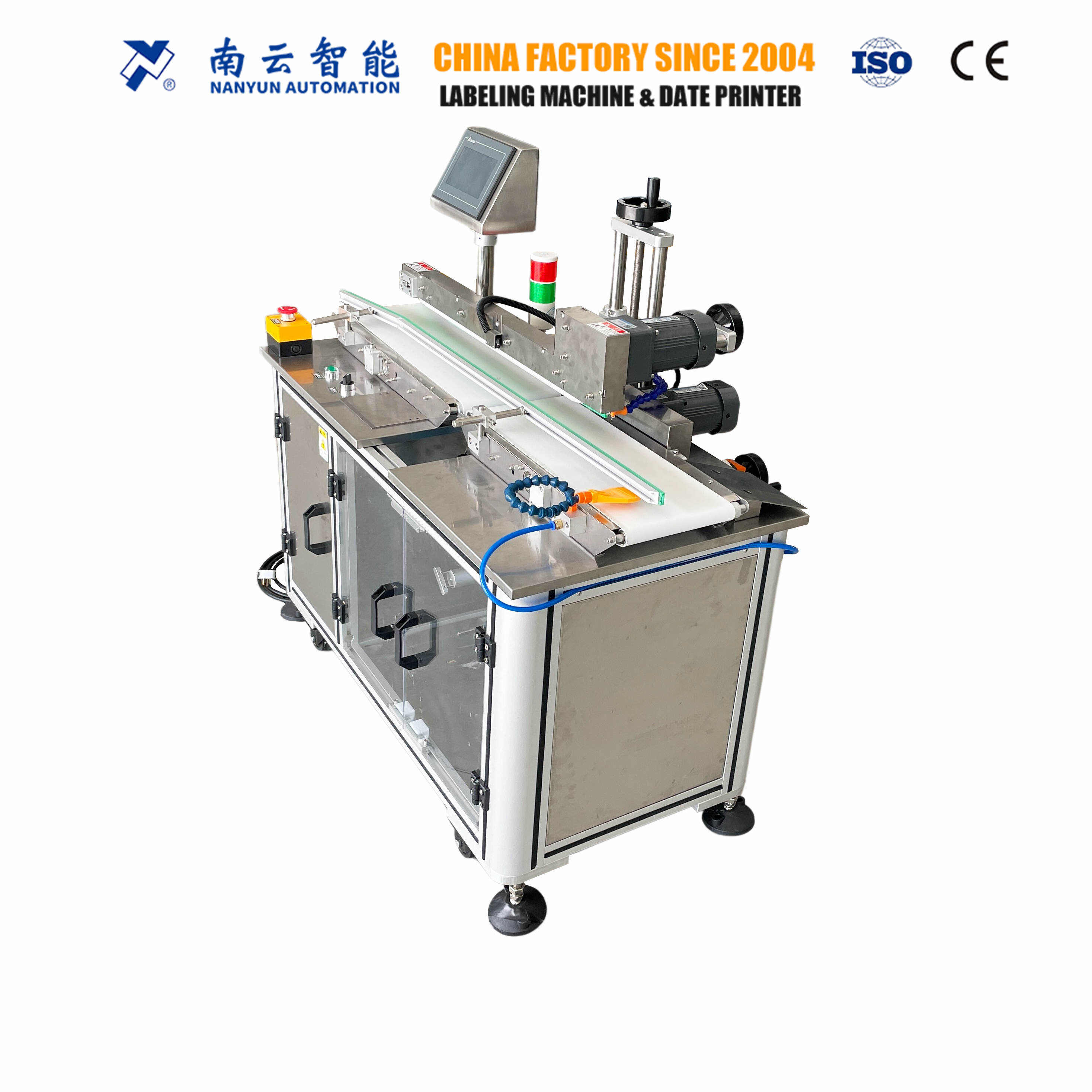

NY-819 Bottom Labeler Machine
NY-819 Bottom Labeler Machine
Download User Guide | Video On Youtube | Request A Quote | Shop now on Alibaba
» Description
The NY-819 bottom labeler is an industrial labeling machine to apply self-adhesive labels on the bottom side of flat products and indented containers such as trays, boxes, bottles, bags, jar, etc. With wide range of use for the nutraceutical, food, cosmetic, personal care, medicine, beverage, chemicals and consumer electronic industries, this machine can run independently or be integrated into an automated packaging line.
» Application
- Bottom labeling on its own or in combination with top labeling
- Special transport system/conveyor configuration available
- Infeed and Outfeed Conveyor Extensions
♦ Example/Samples: Food Boxes/Electrical Components
» Specifications:
|
Technical Data |
NY-819 |
|
Label Accuracy |
±1mm (excluding product and label error) |
|
Label Speed |
0-150 pcs/min (related to product and label size). |
|
Label Width |
10 mm to 110/150/180 mm |
|
Product Size (L x W x H) |
(40-400)x(40-200)x(50-300)mm (can customize) |
|
Inside reel Ø |
76mm |
|
Outside reel Ø |
≤ 300 mm |
|
Conveyor Width |
250mm |
|
Conveyor Length |
1.5 meters |
|
Working Height |
850 mm (+/-30 mm) |
|
Power Supply |
220V, 50/60 Hz, Single Phase, 0.75kw |
|
Machine Size (L x W x H) |
1500 x 650x 1200mm |
|
Weight |
Approx 330kgs |
|
Compressed Air |
0.5~0.7Mpa, 0.28CBM/min (optional) |
|
Note: If machine are customized, the above data may vary. |
|
» Features
✔ Stepper motors for fast and accurate labeling.
✔ PLC+HMI Touch screen control system with job memory.
✔ Photo eye sensors for label gap/container detection.
✔ Easy adjusting hand wheels for quick setup and easy changeover.
✔ Production preset function, production run counter, extremely efficient.
✔ Main body is made of SUS304 stainless steel and aluminum alloy.
✔ CE Approved, meet the strict ISO 9001 quality control procedures.
✔ Label head dispenses labels with widths of up to 110, 180 or 200 mm.
✔ A range of shapes and designs available for OEM, can flexibly apply labels on the top, bottom, sides, and corners of the product.
» Optional Accessories (If required by customer at extra cost)
- Applicator For Irregular Surfaces
- Print Units (hot stamp, thermal transfer, ink jet, laser)
- Clear Label Sensor for Sensing Transparent Film Labels
