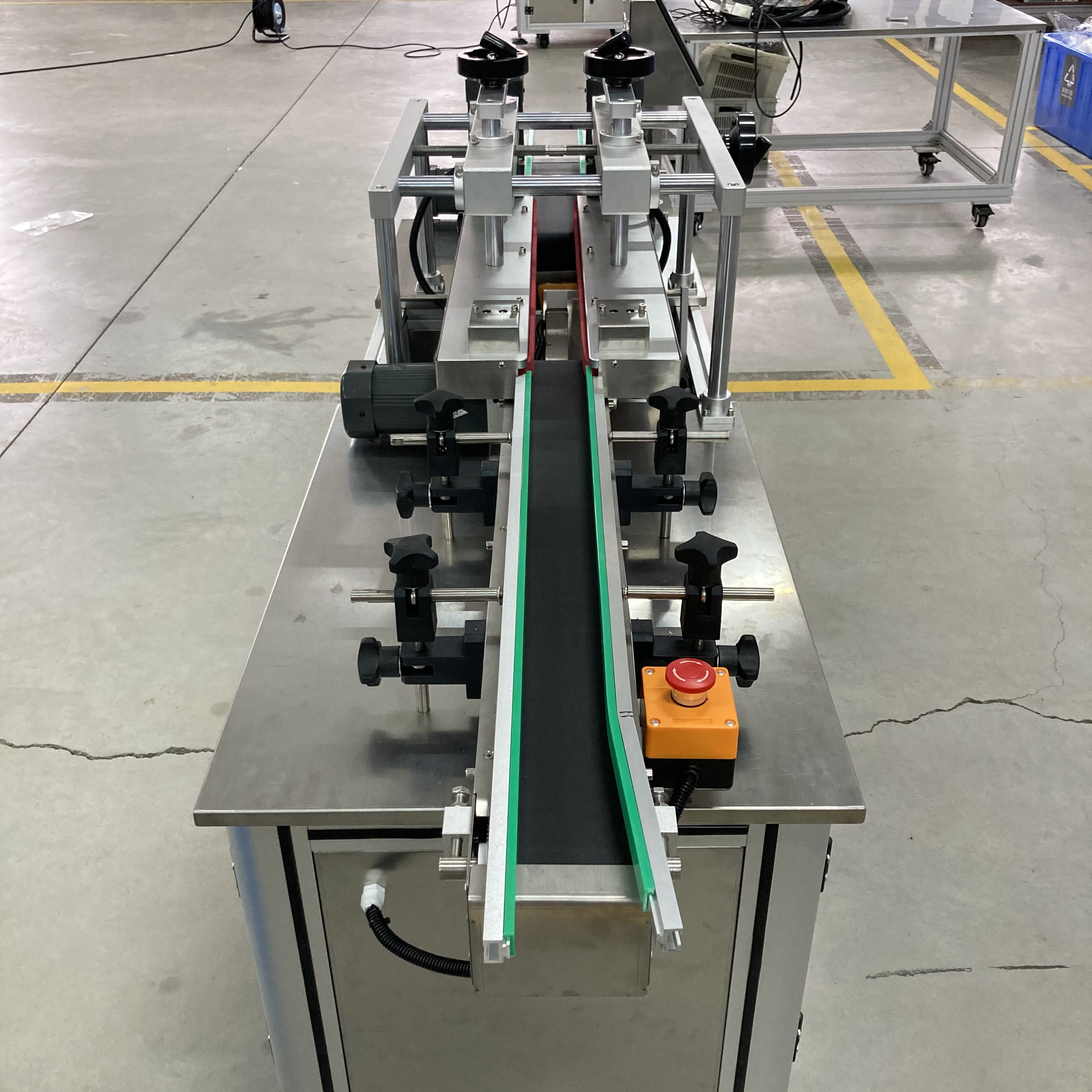

NY-829B Automatic Entrainment Type Top and Bottom Labeling Machine for Bottle

Quick Details
Product Code:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
PayPal,VISA,MasterCard,Western Union,T/T,Other
Place of Origin:
Support Express · Sea freight · Land freight · Air freight
Supply Ability:
200 unit per week
Quick Details
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier
Ⅰ. Application:
NY-829B Automatic entrainment type top and bottom labeling machine can work for all kinds of objects with flat surface, such as round bottles, jars, cans, tins etc. To finish top and bottom labeling, two labeling machine can work at the same time. Widely used in food, medicine, daily chemical, electronic, metal, plastics and other industries. It has optional date coding device, realize date coding on stickers.

Ⅱ. Features You Can Not Ignore:
1. It can label for any products with flat surface. More flexible arrangement for manufacturing schedule.
2. The labeling head convenient to adjust, the labeling speed is automatically synchronous with the conveyor belt speed to ensure precise labeling.
3. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the PLC human interface.
4. Use famous brand PLC, stepping or servo motor, driver, sensor, etc, good quality components' configuration.
Ⅲ. Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
2. It also can match with inkjet /laser / TTO printer etc.
Ⅳ. Technology Data:
production capacity
60-120 pcs/min
accuracy of labeling
range of application products
Diameter: φ35~φ120mm
length: 35mm-200mm
width: 35mm-120mm
height: 40mm-150mm
range of application label
length: 20-180mm
width: 20-100mm
diameter of paper roll
inner diameter Φ76mm
external diameter max.Φ300mm
power supply
AC220V 50/60Hz 920W
machine size (LxWxH)
Machine Configuration Details:

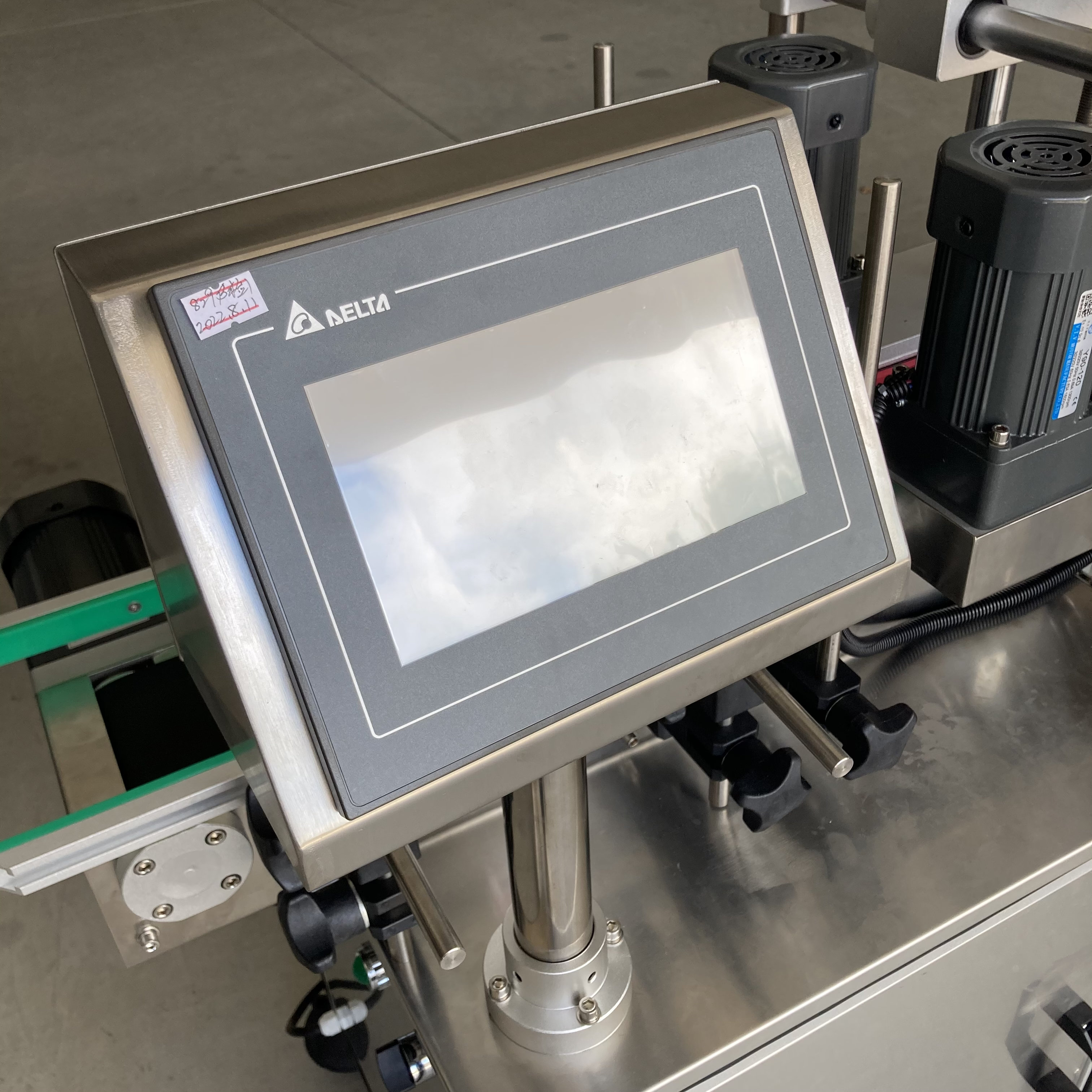

PLC Touch Screen Operation
Human-computer interaction interface with operation teaching function, parameter modification intuitionistic clear, various functions switching simple.

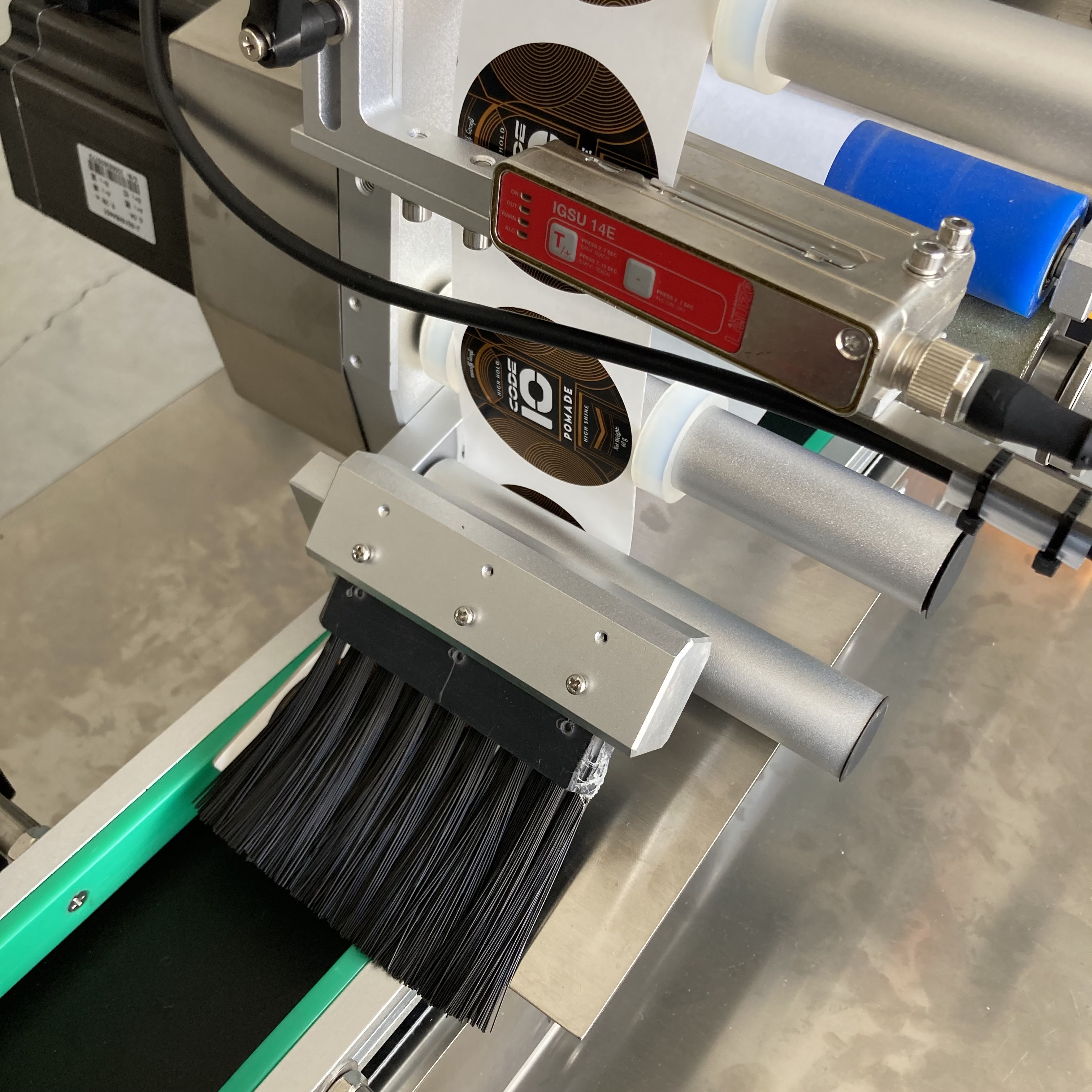

  • Famous Brand Sensor

  • Label detection electric eye, product detection electric eye and optical fiber amplified adopts famous brands such as Germany SICK, Japan PANASONIC, Germany LEUZE (For transparent sticker) etc.

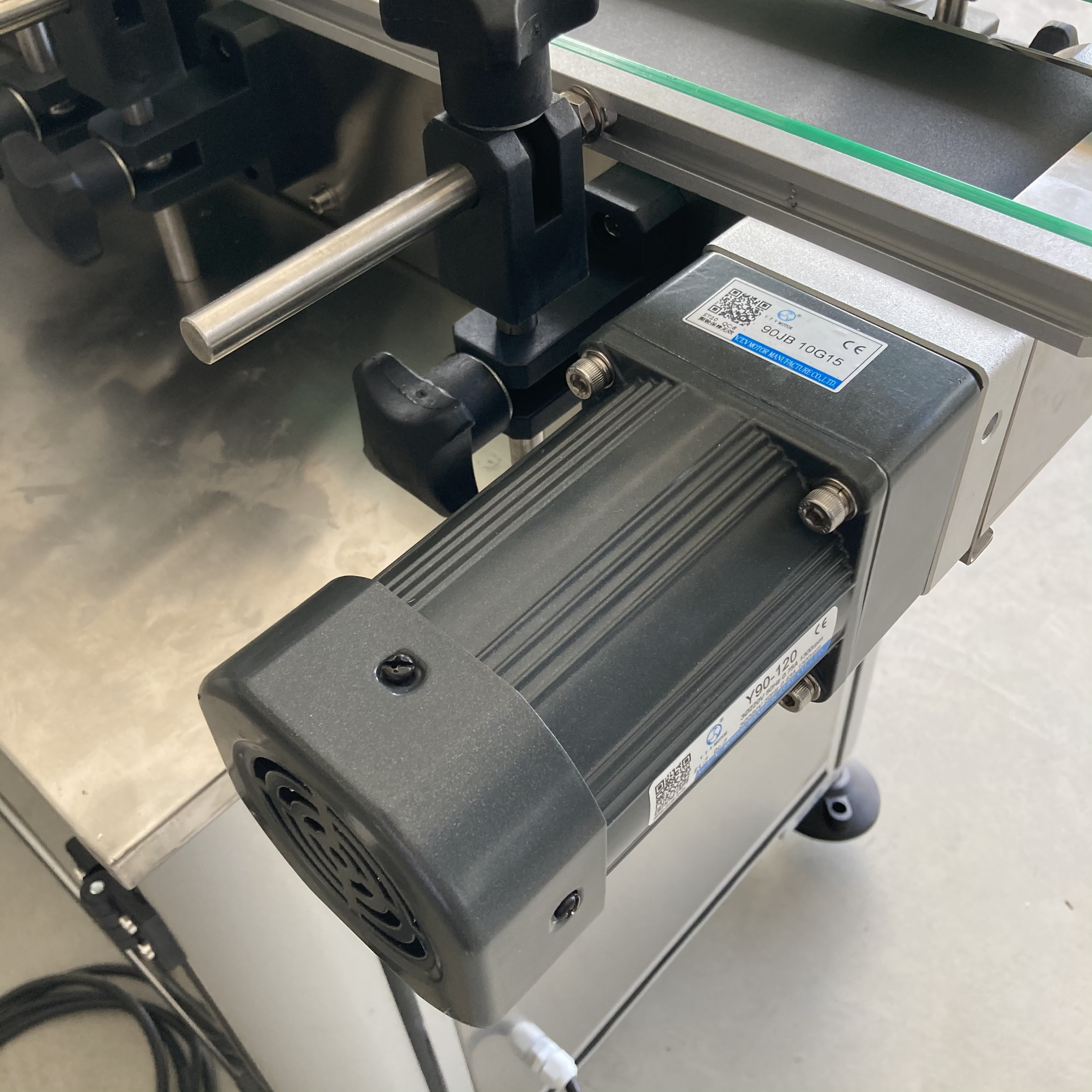

High Quality Motor and Driver
One labeling machine often includes many motors such as conveyor motor, labeling head motor, label covering motor, bottle separating motor, bottle top pressing system motor, bottle positioning rolling motor etc. No matter stepping motor or servo motor, we all adopt China top 10 famous motor brands.


  • Entrainment mechanism

  • The high-quality entrainment mechanism can fix the bottle body and the bottle will not move. Convey the product to the labeling position.

Urgency Switch & Sticker Running Out Alarm Function
If have problems during labeling, can press the urgency switch to turn off the labeling system quickly.When the sticker roll runs
out, the labeling machine will give alarm and stop working.
Question & Answer
