Full-automatic Cap Sorter and Capping Machine

Quick Details
Product Code:
NY-865
OEM:
Available
Sample:
Available
Port:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
Payment:
PayPal,VISA,MasterCard,Western Union,T/T,Other
Place of Origin:
China
Shipping:
Support Express · Sea freight · Land freight · Air freight
Supply Ability:
80 unit per week
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier
NY-865 Full-automatic Bottle Capping Machine
Ⅰ. Application:
The machine is widely used for full-automatic screwing cap in foods & beverage, spice, medicine, chemicals, industries and so on. NY-865 capper machine to sealing round cap of plane, square, round or multisides containers for glass pet plastic bottles, jars, cans, tins etc. It often matches with bottle unscrambler, filling machine, labeling machine, date code printer, aluminum foil sealing machine and other related equipment to realize high effient production output.

Ⅱ. Features You Can Not Ignore:
1. The machine is combined with automatic cap arranging, covering and screwing, features fast speed, high efficiency, reliable and stable running.
2. Photosensor and approximate switch and other elements are using international famous brand, to make sure that the cap unscrambler machine can control automatically, no caps the switch is on, full caps the switch is off.
3. The bottle shape what the machine can apply is round shape, square shape, oval shape and special-shaped etc.
4. Doesn’t require to replace parts for filling different shapes of bottles with easy adjustment, strong adaptability.
5. The electric parts and pneumatic parts are used world-renowned brands, the advantage is low failure rate, reliable performance and long service life.


Ⅲ. Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
2. We can supply you the optional bottle unscrambler turning table, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.
3. It also can match with weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, induction sealing machine, inkjet /laser / TTO printer etc.
Ⅳ. Technology Data:
Model
NY-865
Applicable Bottle Height
80~150mm;
Applicable Cap Diameter
Φ50~100mm
Applicable Bottle Diameter
40~100mm
Production Capacity
30~35 bottles/min.(Depend on products size)
Cap Uploading Method
By Manual
Conveyor Height
900+50mm(can customize as requested.)
Power Supply
AC 220V/50HZ; 1450W
Air Pressure
0.5~0.8Mpa
Dimension
3000mm*1100mm*2050mm(L*W*H)
Weight
about 500kg
Main Electrical Configuration:
Name
Model
Brand
Origin
Frequency Invert-er
VFD-M Series
Delta
Taiwan
Pneumatic Components

Airtac
Taiwan
Cylinder
AD Series
Airtac
Taiwan
Counting Photoelectric
KR-Q5ON-V42
Panasonic
Japan
Proximity Switch
XS612B4NBL2
SICK
Germany
Switch Power
ABL2REN24065
Schneider
France
Small Relay

Schneider
France
Motor Reducer
M Series
Xingguangchuandong
China
Switch Button

Schneider
France
3-phase asynchronous motor

Jiangsheng
China
Attention: Non-standard System
The configuration will base on the materials condition to adjust it into the same level’s configuration and we also can accord customers’ requirement to revise.
LCD Display
With fault function notes and troubleshooting tips, simple parameter adjustment, quick and easy to operate.


Strong Compatibility
Suitable for all kinds of glass and plastic bottles. Metal anti-theft cover, easy-open cover, aluminum cover and nozzle sealing, pressing thread, etc.

Control System
With detection and rejection function for no bottle, no cap, crooked cap, reverse cover, no aluminum foil etc. Fault self-inspection, multiple inspection alarm control.

Capping System
Adjustable capping torque control greatly reduces the wear of capping wheel and ensures the quality of capping and precision

High Stability
Advanced electronic control system, support equipment 7*24 hours operation, reasonable layout, easy maintenance

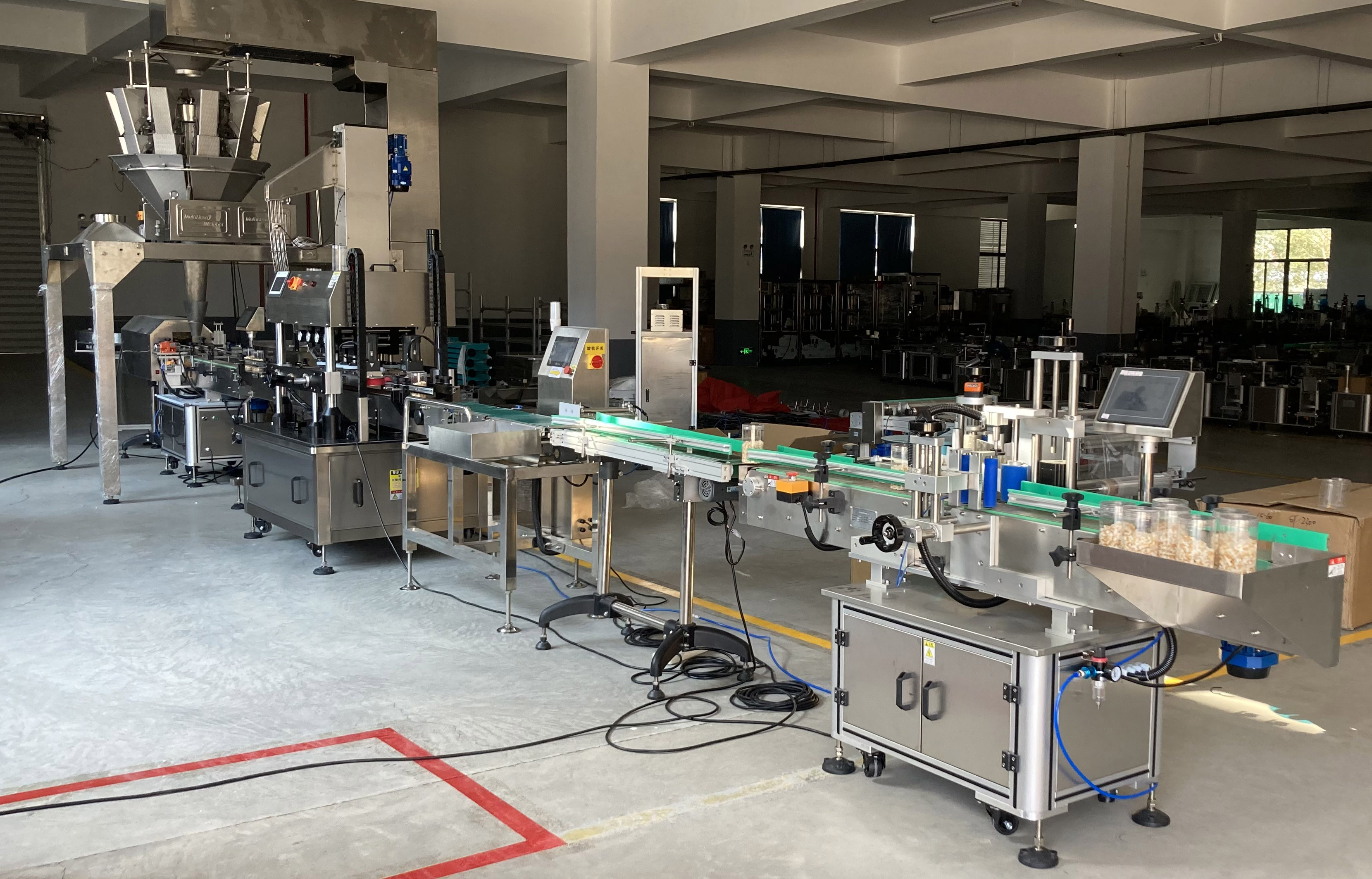

Filling-Capping-Labeling Production Line
It also can match with bottle unscrambler, weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, induction sealing machine, inkjet /laser / TTO printer, box packing machine etc.
