Hand Held Fiber Laser Marking Machine

Quick Details
Product Code：
NF3808
OEM：
Available
Sample:
Available
Port:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
Payment:
PayPal,Western Union,T/T,Other,MasterCard,VISA
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
200 unit per month
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

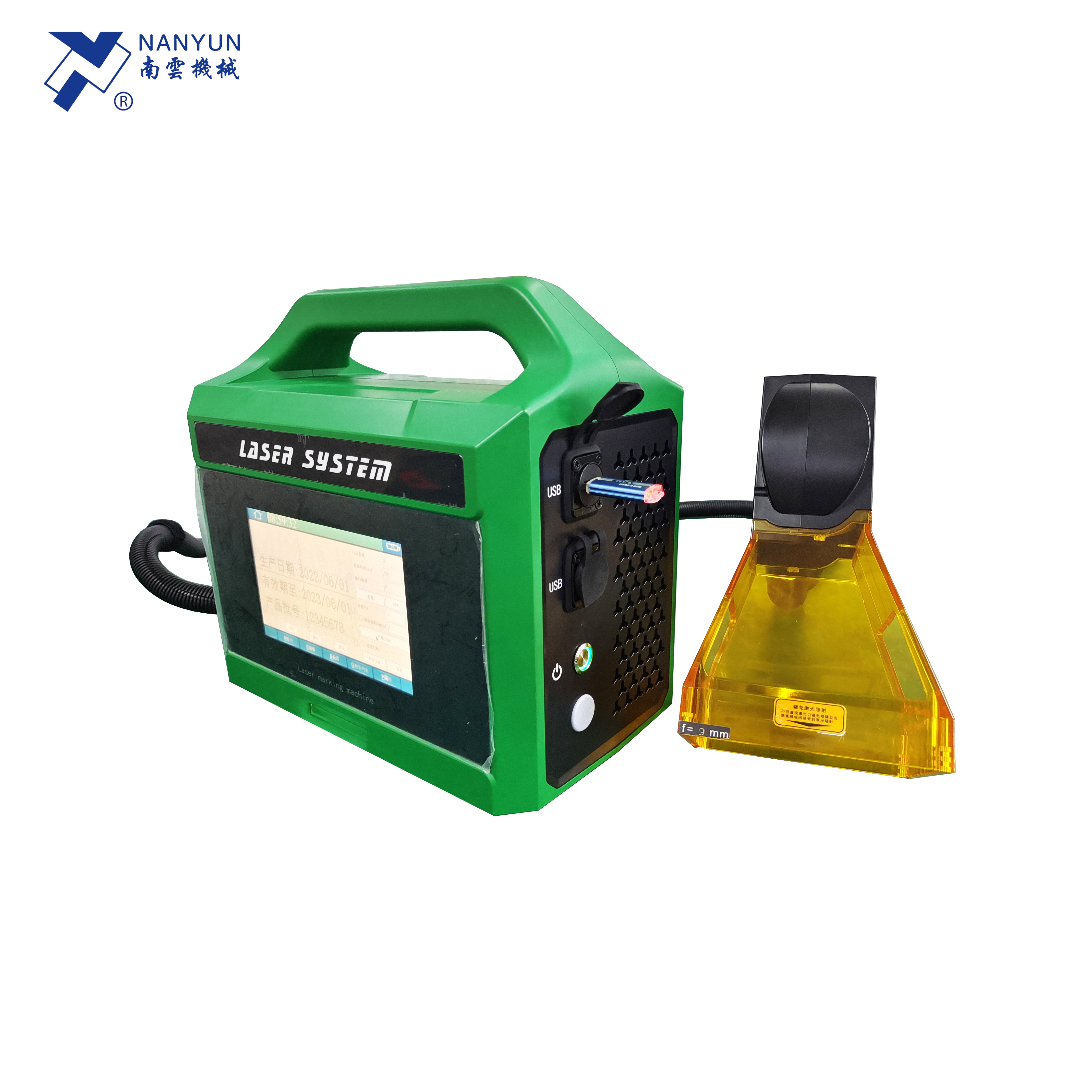

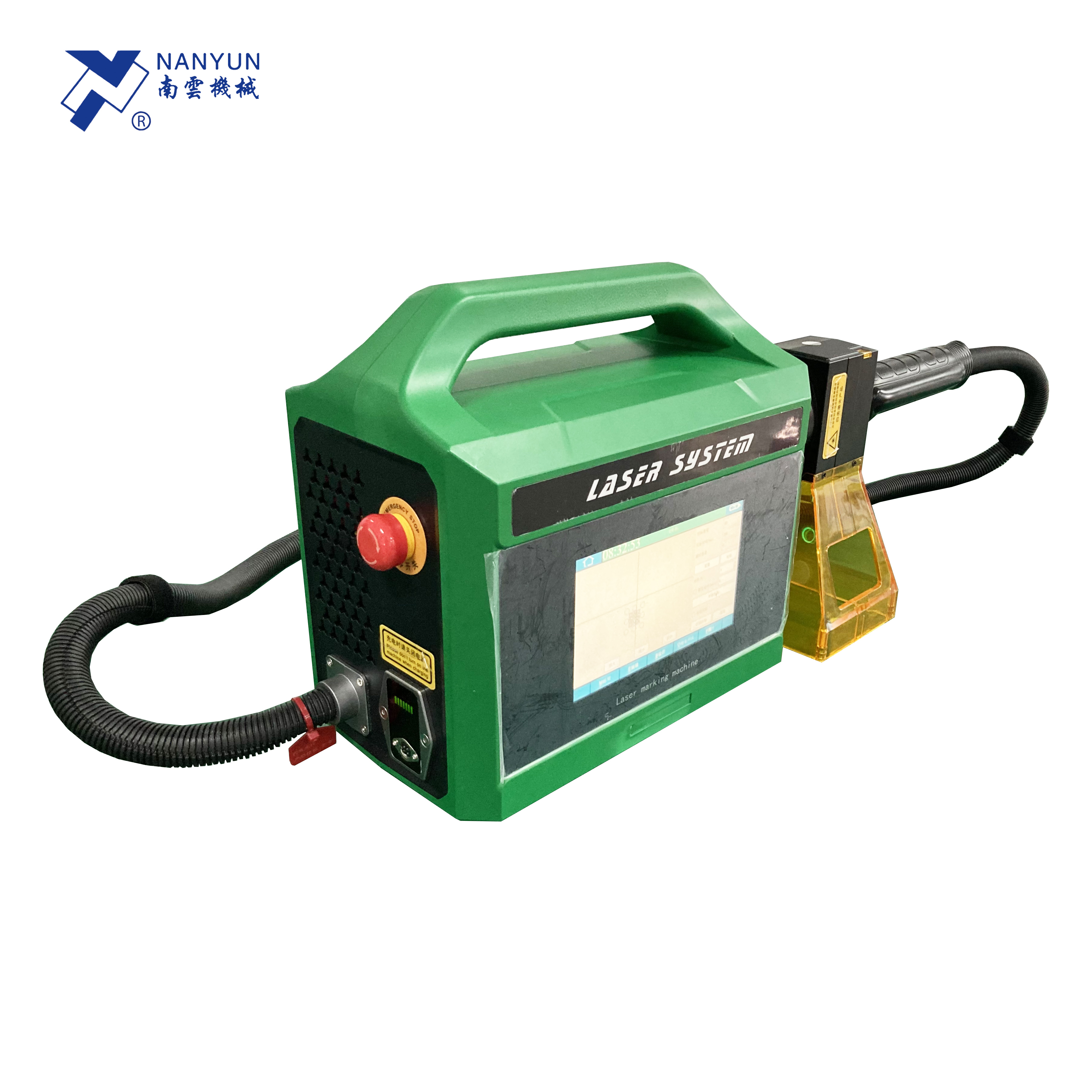

NF3808-SC Handheld Fiber Laser Marking Machine
Application:
NF3808-SC series laser marking machine is the latest application product of dynamic laser marking control system. The system is equipped with software and hardware functions to control motion accuracy parameters, synchronously track fast-moving workpieces and control the laser output, and perform marking without the workpieces being stopped while the production line moves rapidly. Markers can be either dot-matrix or vector, and can run continuously for 24 hours.

Features:
1. Stress-free operation for long periods of time: High quality precision configured parts. Power-on and ready to use, zero maintenance costs. Self-developed software system, stable work without errors. 2. Built for efficiency: Marking speeds up to 7000mm/s. Standard and customised communication protocols. Self- developed intelligent chip for powerful performance. 3. Easy to use: Intelligent touch screen interface. Support for various languages, one-touch marking.

4. Easy to integrate: Slim body with high density material. Quartz high-transmission coated field lens to expand the field of view. Adjustable focal length, Adaptableto a wide range of marking distances, More flexibility in production line integration.

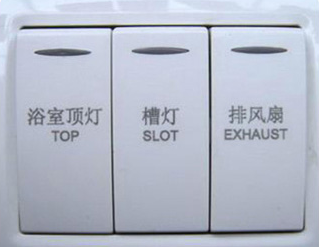

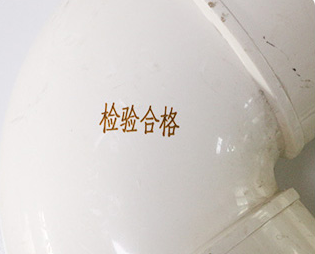

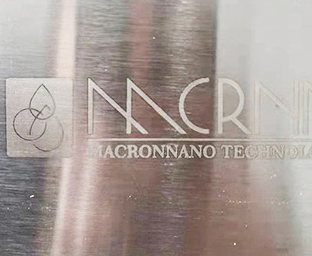

Plastic PVC pipe Stainless steel Wooden

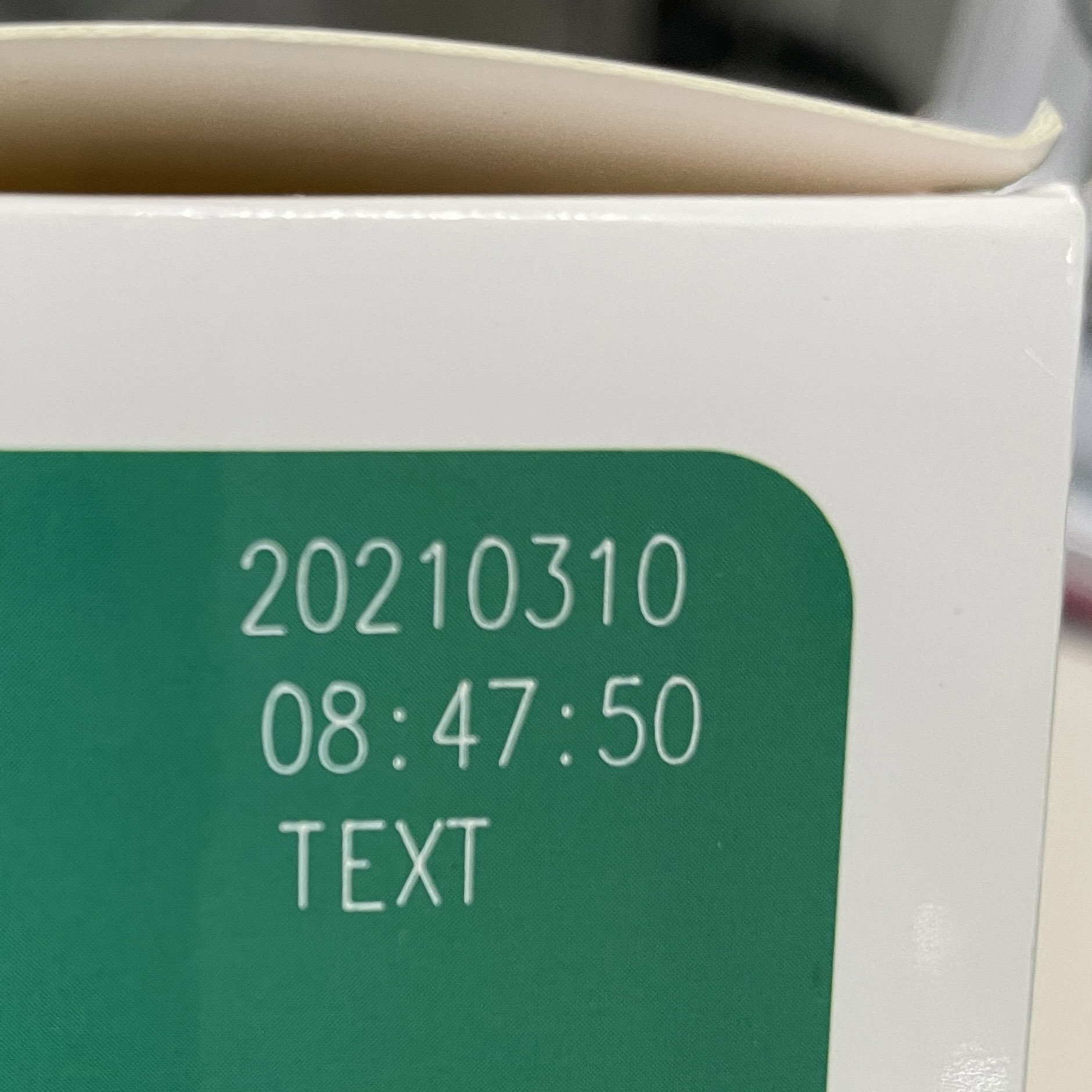

Aluminum Glass Carton Metal steel
Parameters:
Material Of The Machine
Engineering plastic
Laser Type
Fiber laser generator (MOPA structure)
Output Power
≥20W
≥30W
Laser Wavelength
1064nm
Printing Method
High precision double cone scanning method
Marking Speed
≤7000mm/s
Main Control
Highly integrated motherboard with embedded  7''  screen
Maximum Pulse Energy
0.8mJ
Frequency Adjustable Range
1-600 kHz
Operating System
Linux
Cooling System
Air-cooled at room temperature
Marking Type
dot matrix.   vector  (i.e.  dot matrix or vector)
Refleotor Size
Standard: 8.5mm
Marking Range
50mm×50mm（Standard） \ 100mm×100mm (Optional)
Positioning Method
Red light positioning
Number Of Lines Of Characters
Any line within the marking range
Print Speed
650 characters/s (Speed depends on product material and print content)
File Format
BMP/DXF/HPGL/JPEG/PLT
Bar Code/QR Code
CODE39、CODE128、CODE126、EAN13、PDF417、01CODE、QR、AZTECCODE、DM、GS1DM、 DOTCODE、HANXINCODE etc.
The Power Supply
220V
Battery Capacity
12mAh
The Use Time Was Measured At 22°C
≤5.5 hours
Fully Charged Time
4 hours
Machine Net Weight (Machine + Control Box)
9.8KG
Handheld Size
241.5mmX79mmX151mm
Controller Size
310mmX260mmX307mm
Contamination Level
2
Overvoltage Category
Ⅱ
Adaptable Temperature
0-40℃
Ambient Relative Temperature
30 -85 RH (no condensation)

Details Images:

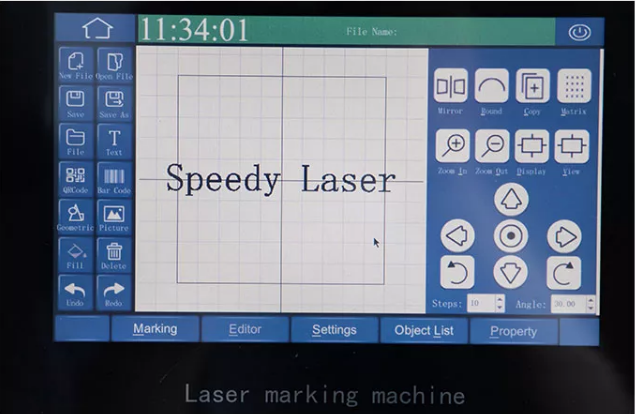

Visible easy operate software

Visible operation screen, very easy to operate.

  •

  • Cooling function

  •

  • It can remove the dust that blows up when the inside of the laser is dissipating heat.





Stable four-leg design

High hardness engineering grade plastic. The four-leg design enables the machine to be used upright, obliquely, and lying down.

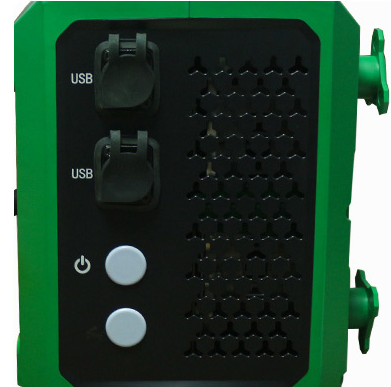

USB interface

It can import LOGO pictures, and then edit the picture size

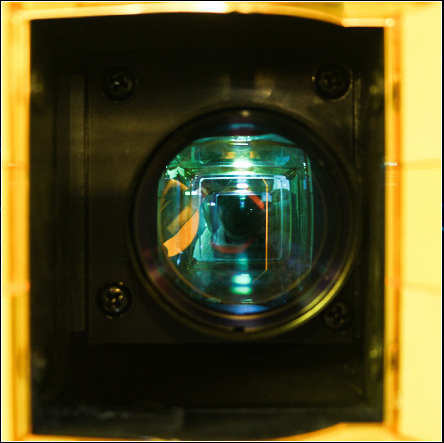

Dual-dimensional magnetic levitation scanning galvanometer

With high-quality galvanometer, field mirror, and laser marking head three-in-one. Improve beam quality for better marking.

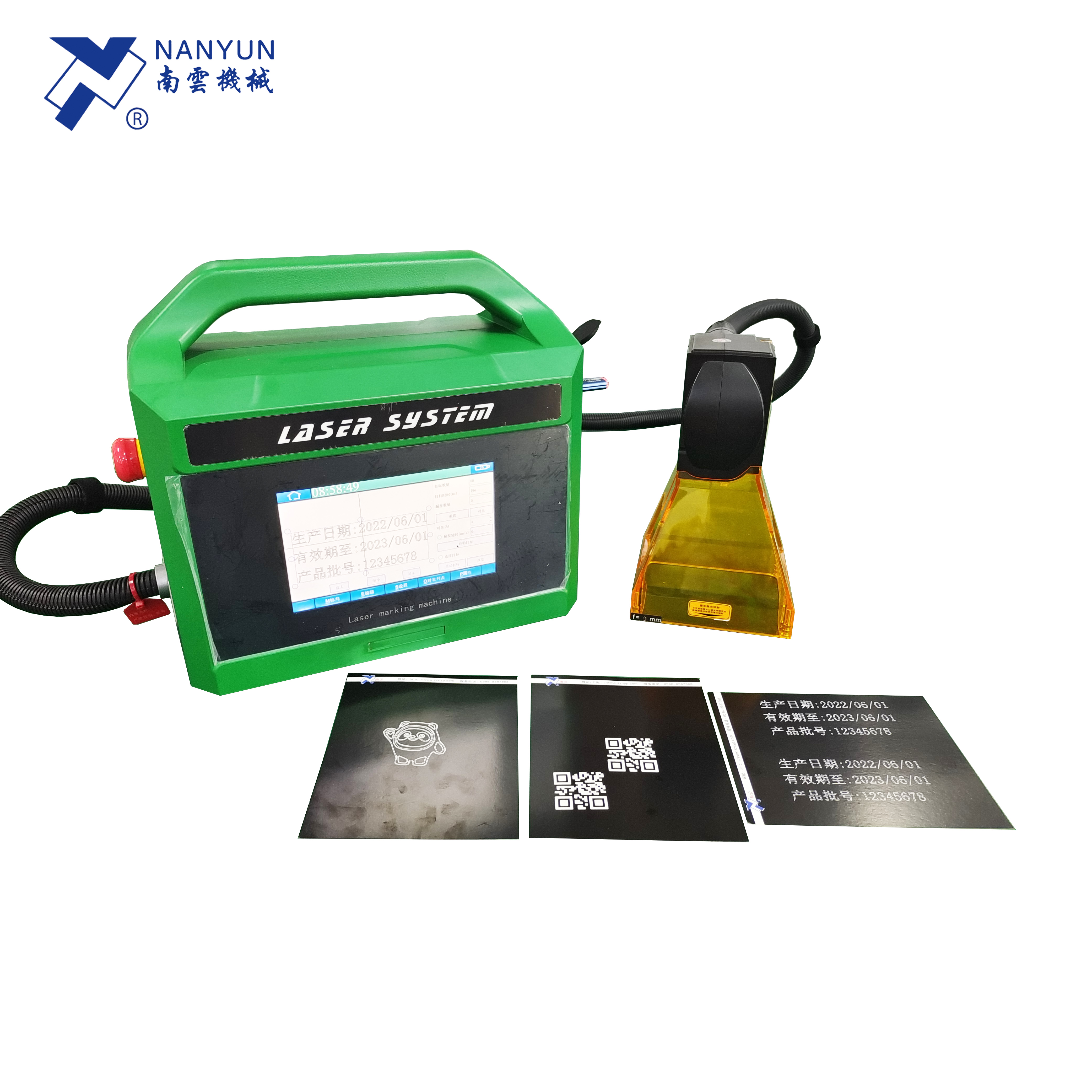

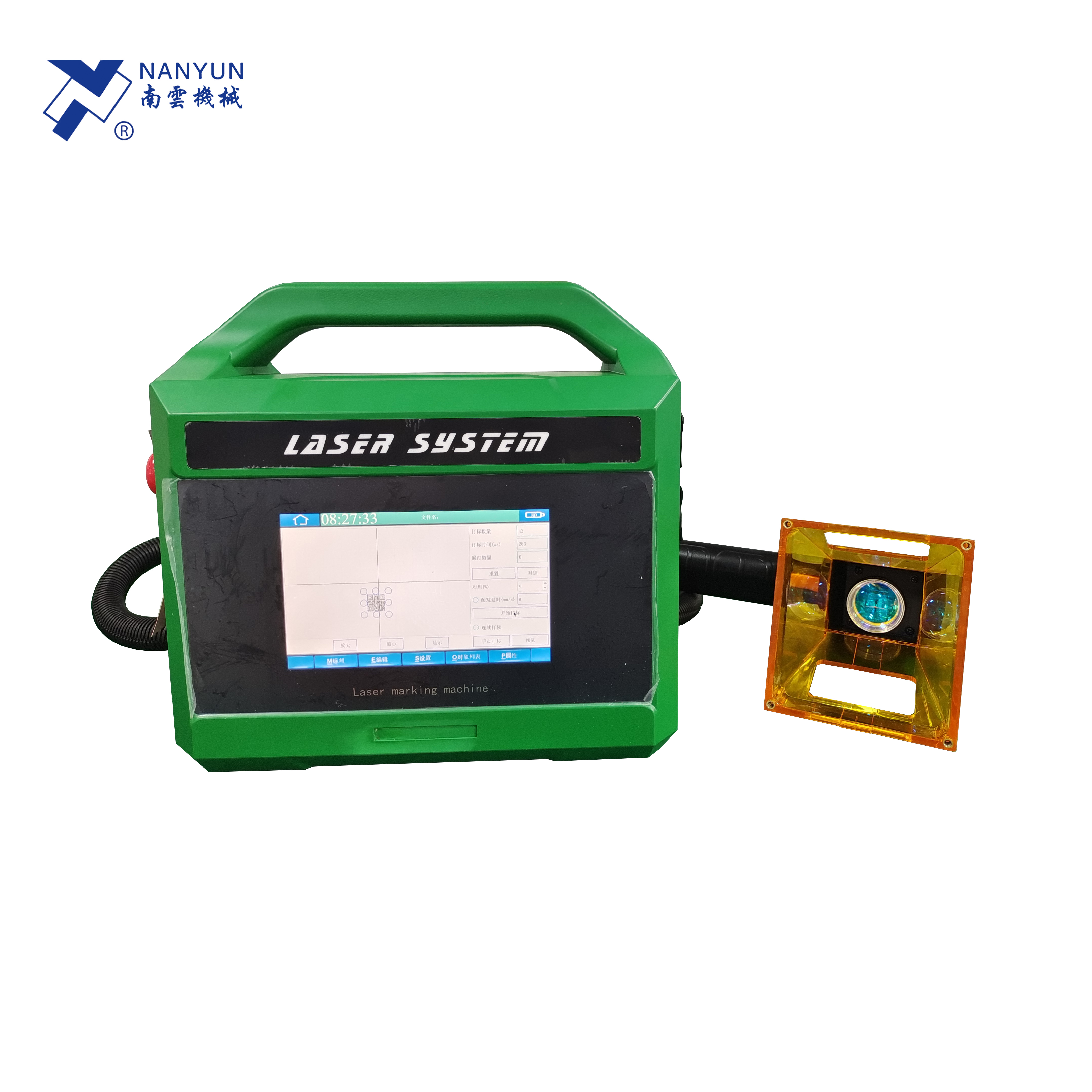

Product Display:

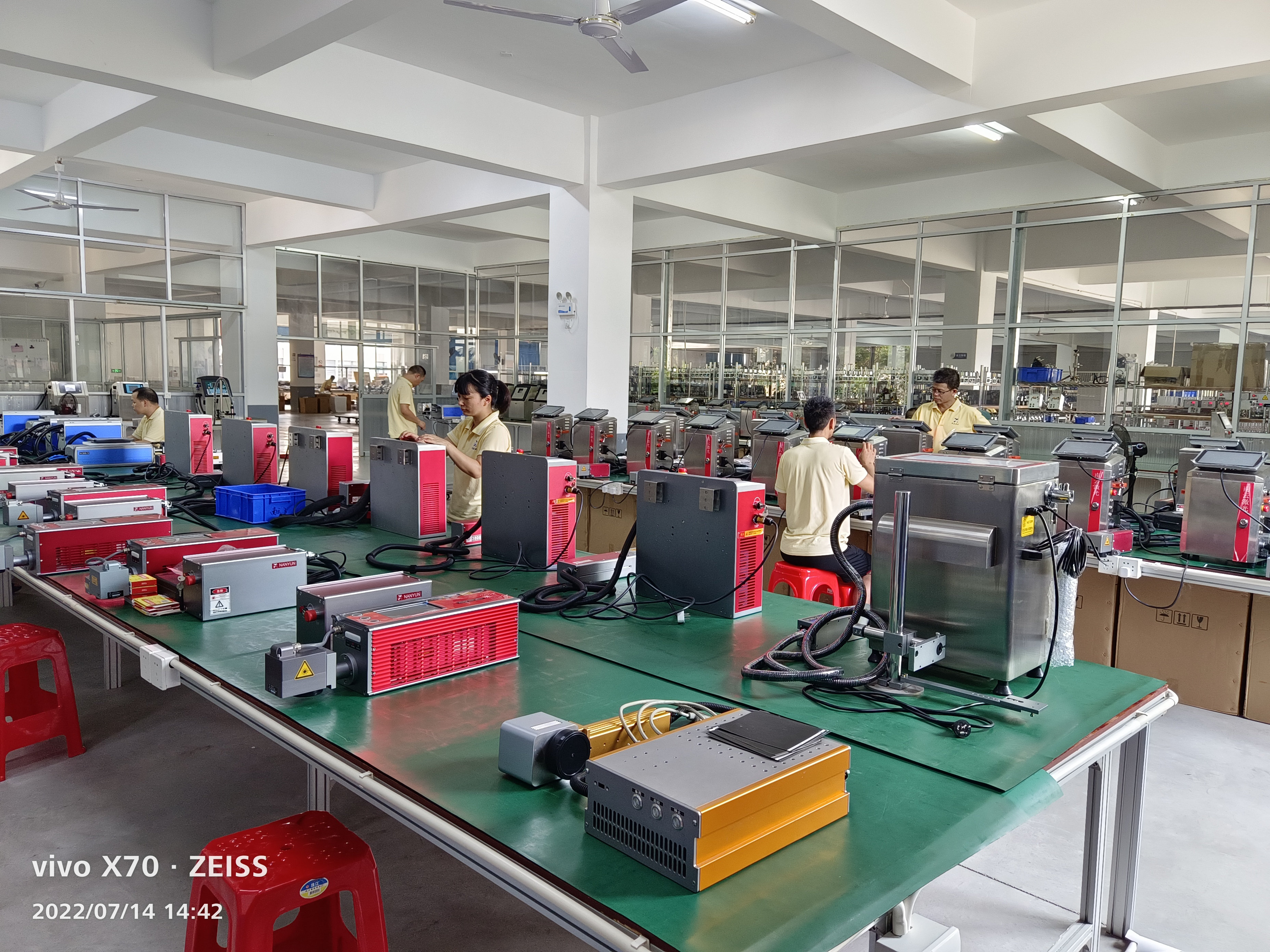

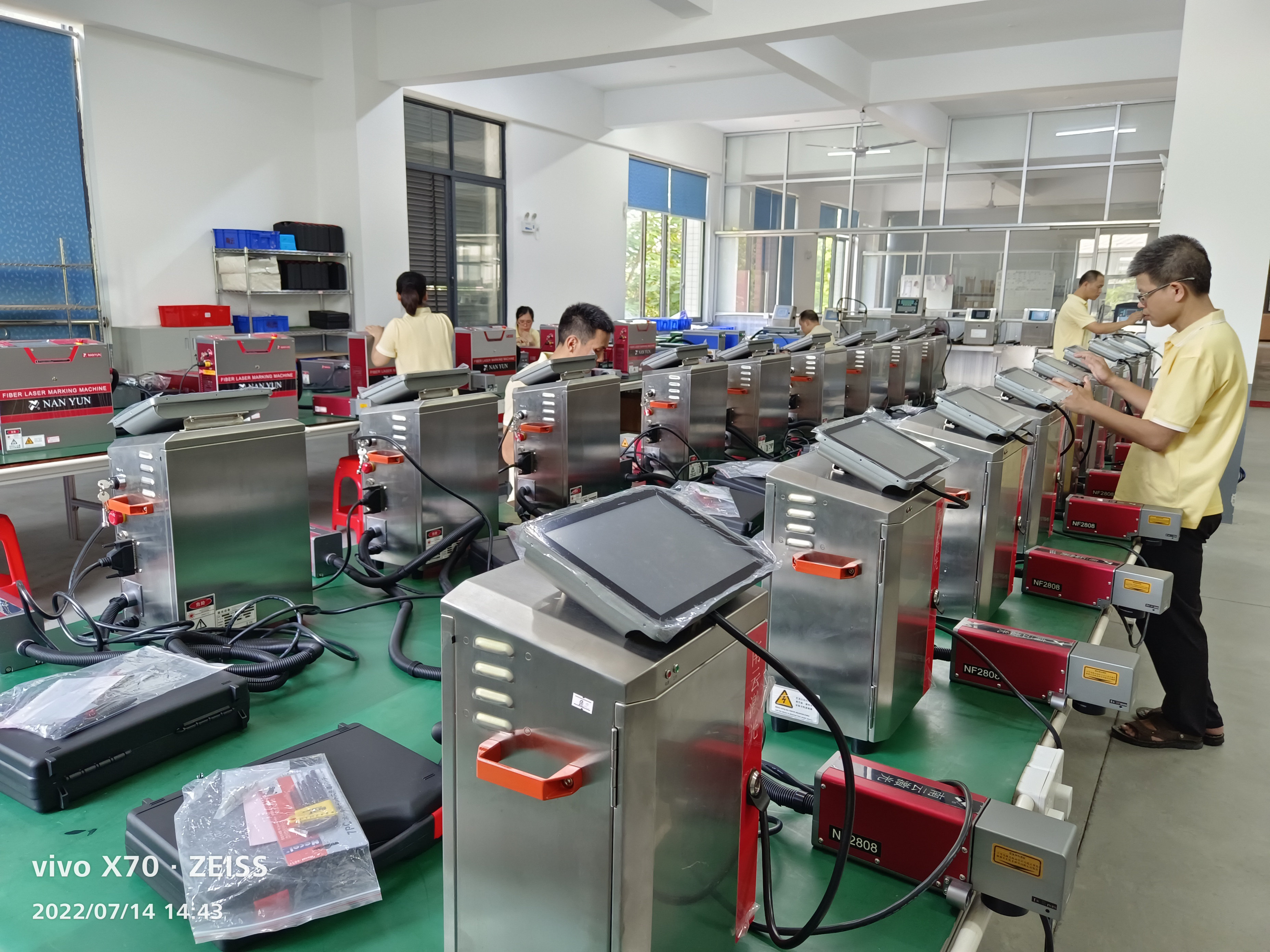

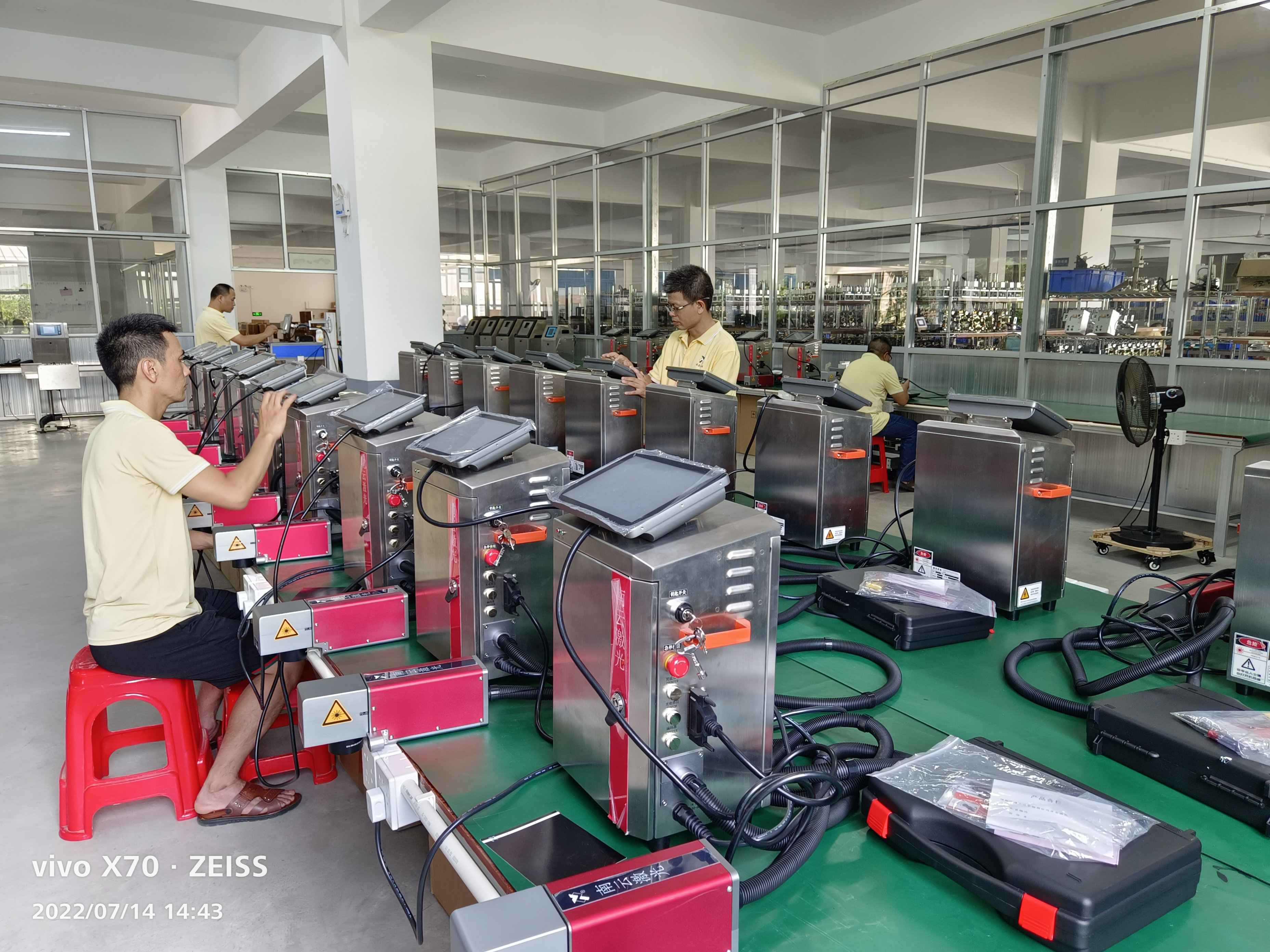

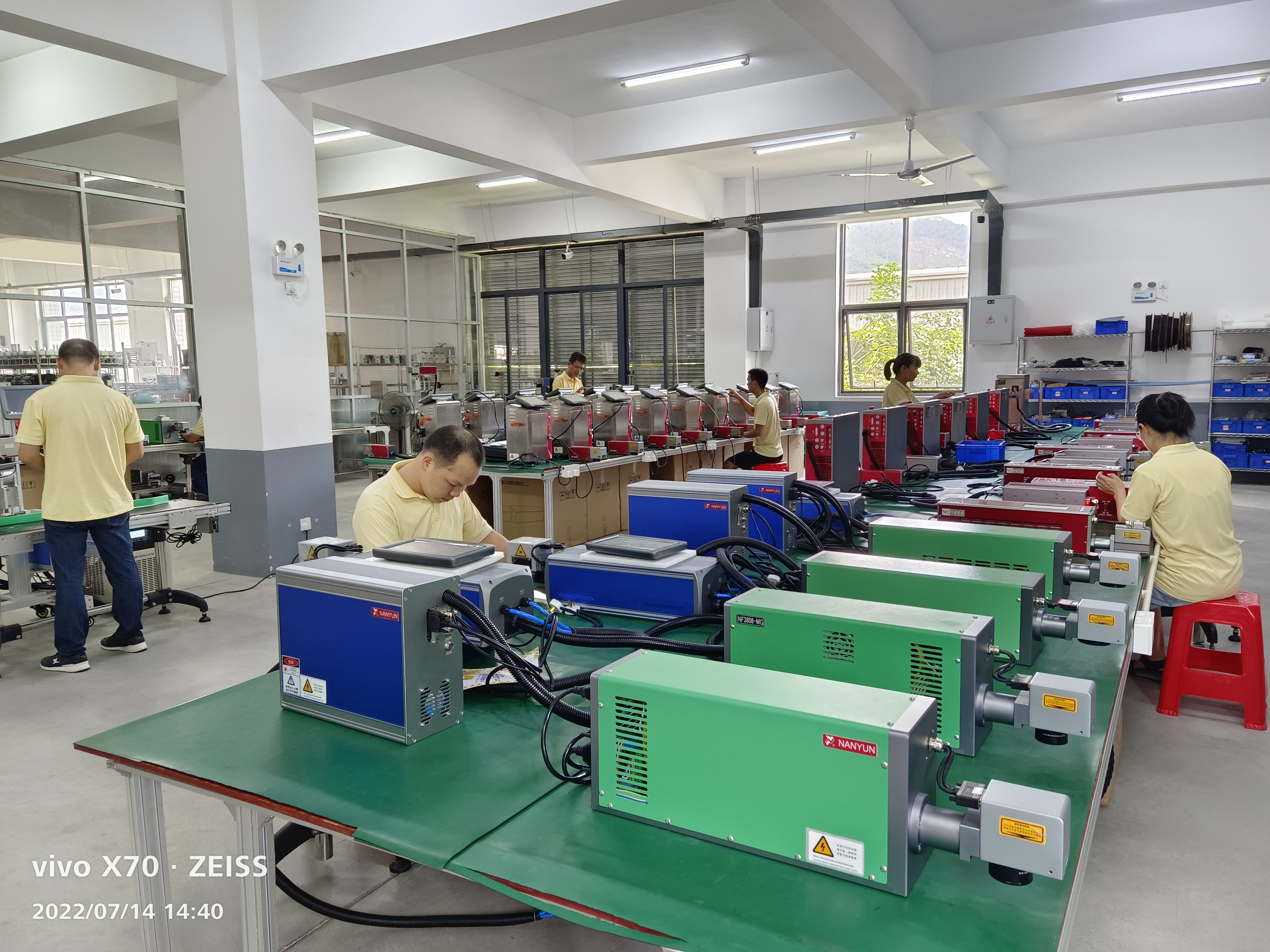

NanYun Factory:
