NY-2300 Aluminum Foil Induction Sealing Machine For Bottles

Quick Details
Product Code:
Shenzhen/Xiamen/Guangzhou/Shanghai/Any Ports
PayPal,VISA,MasterCard,Western Union,T/T,Other
Place of Origin:
Support Express · Sea freight · Land freight · Air freight
Supply Ability:
500 unit per week
Quick Details
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

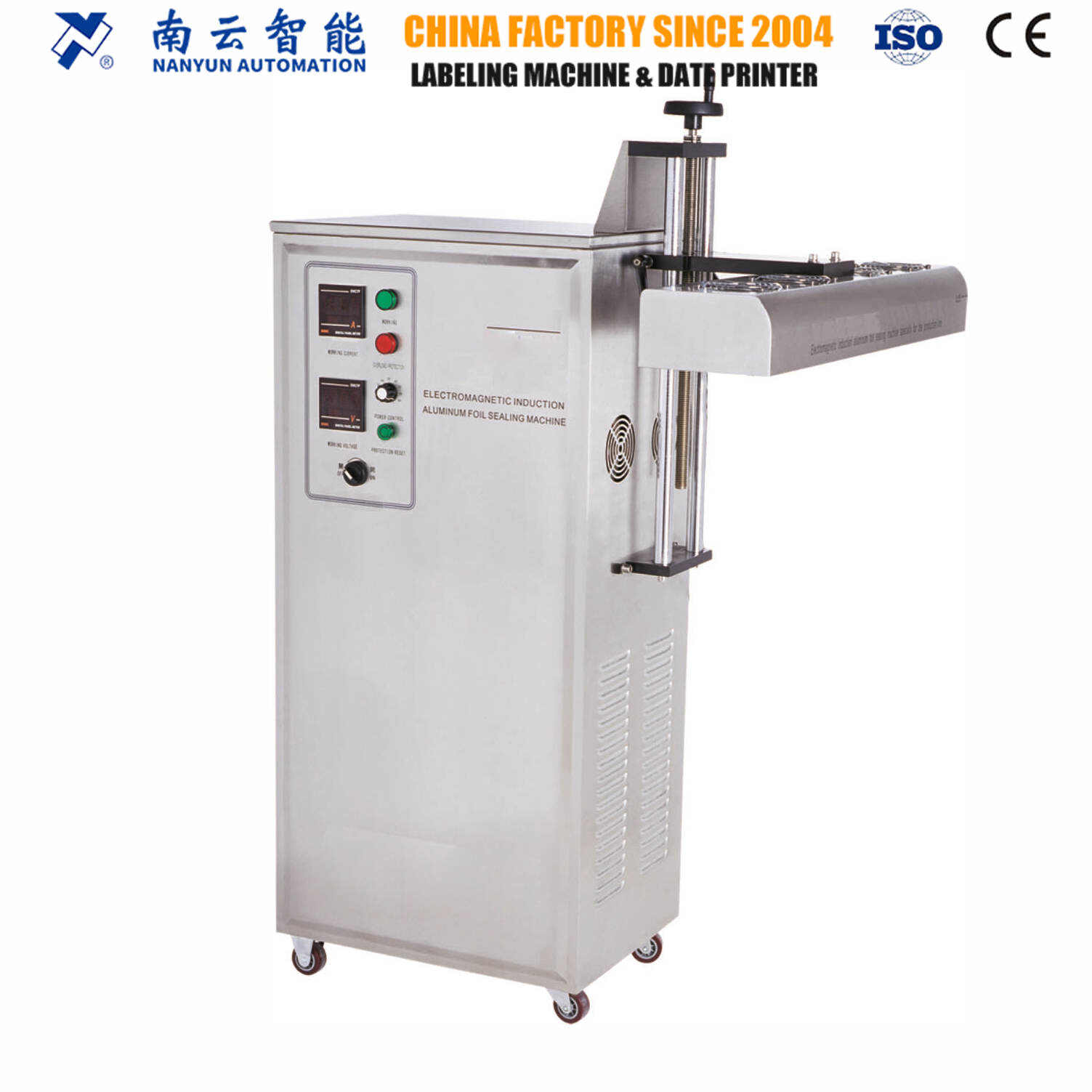

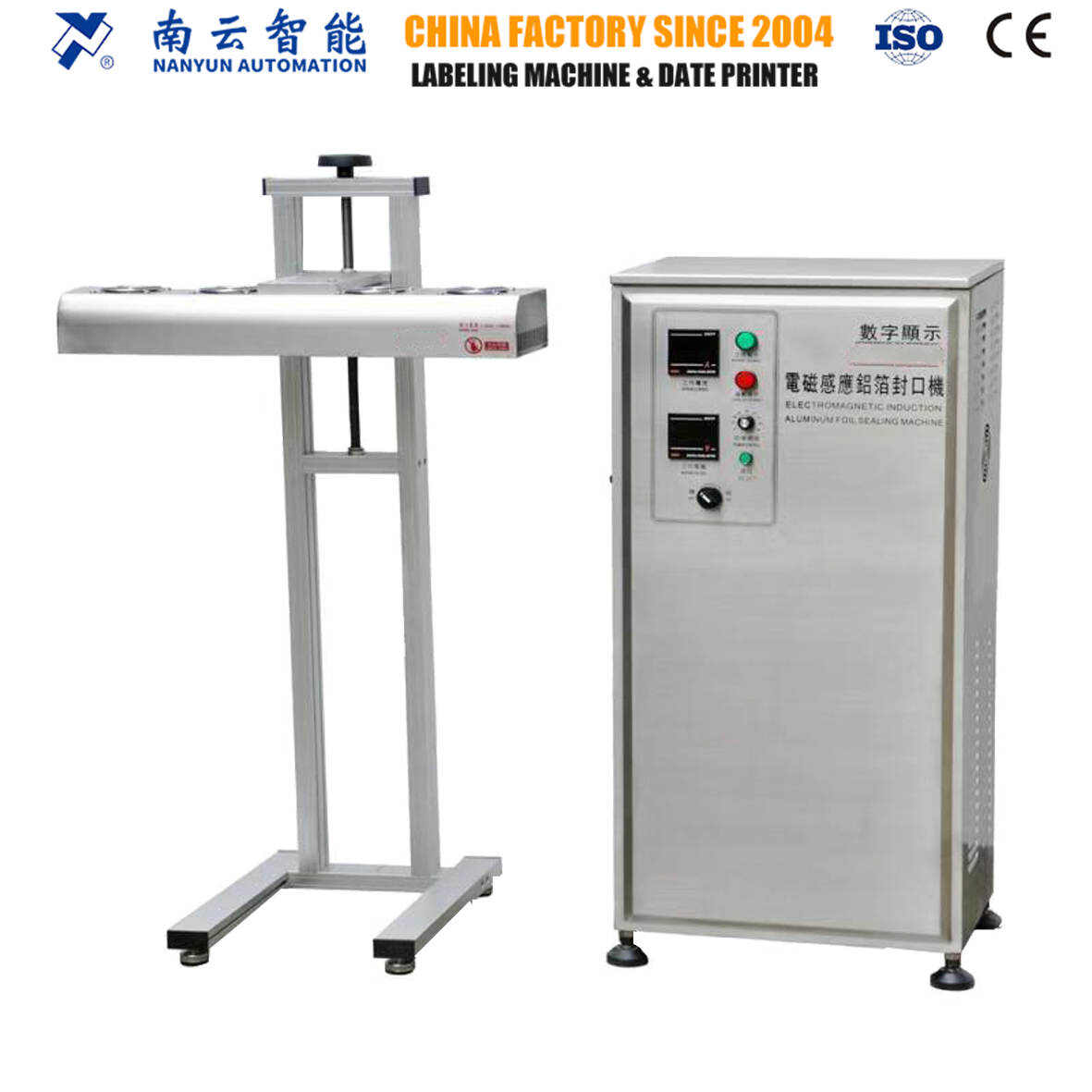

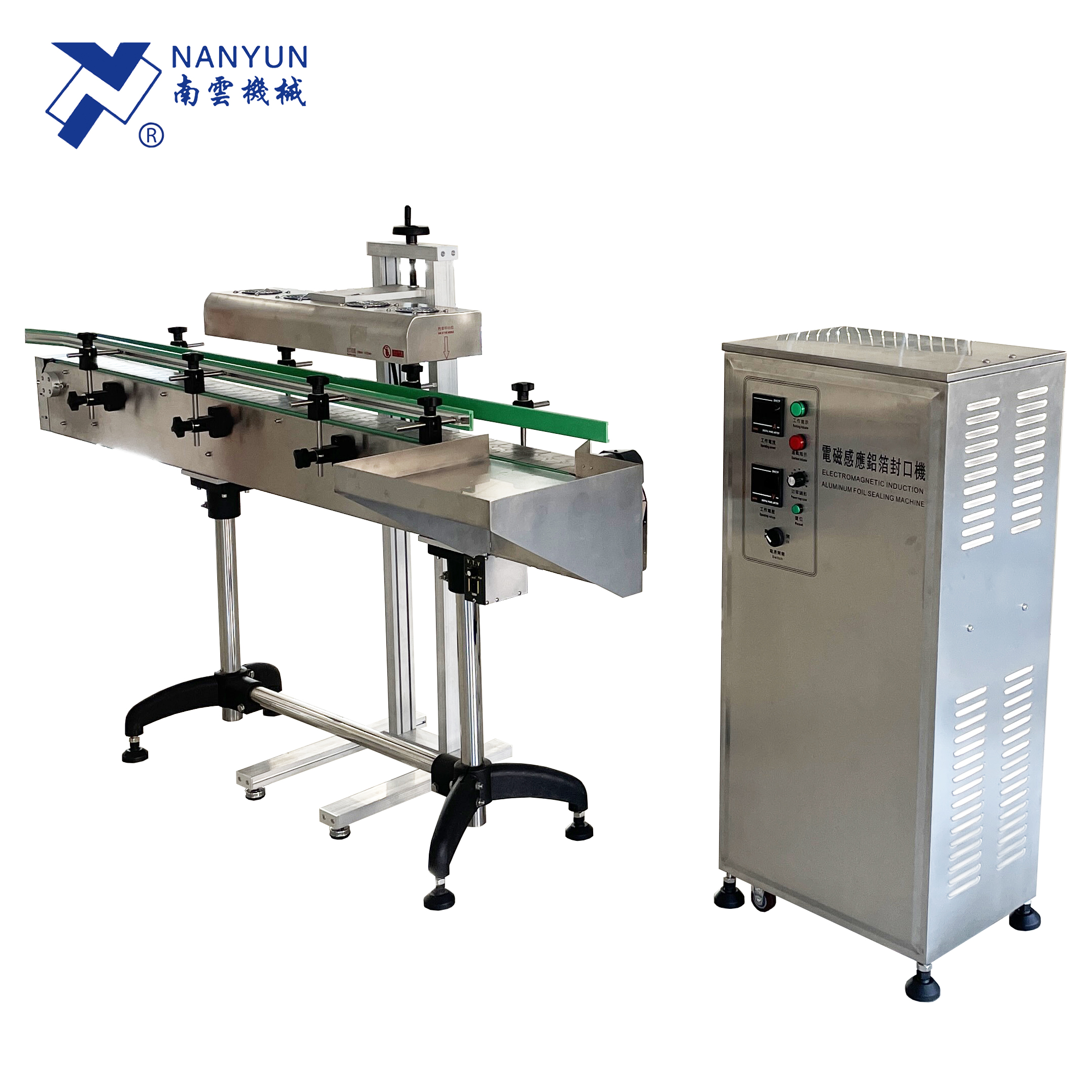

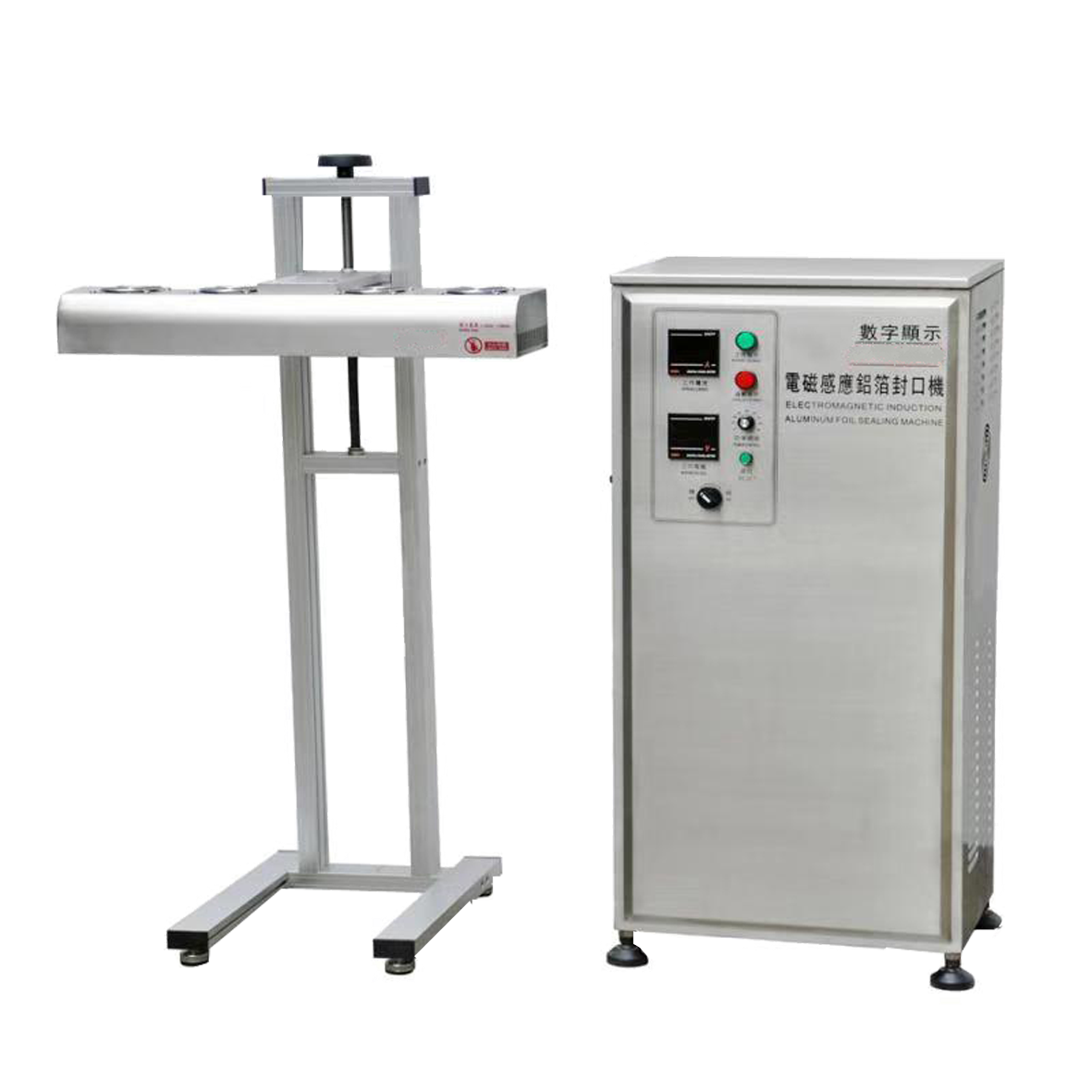

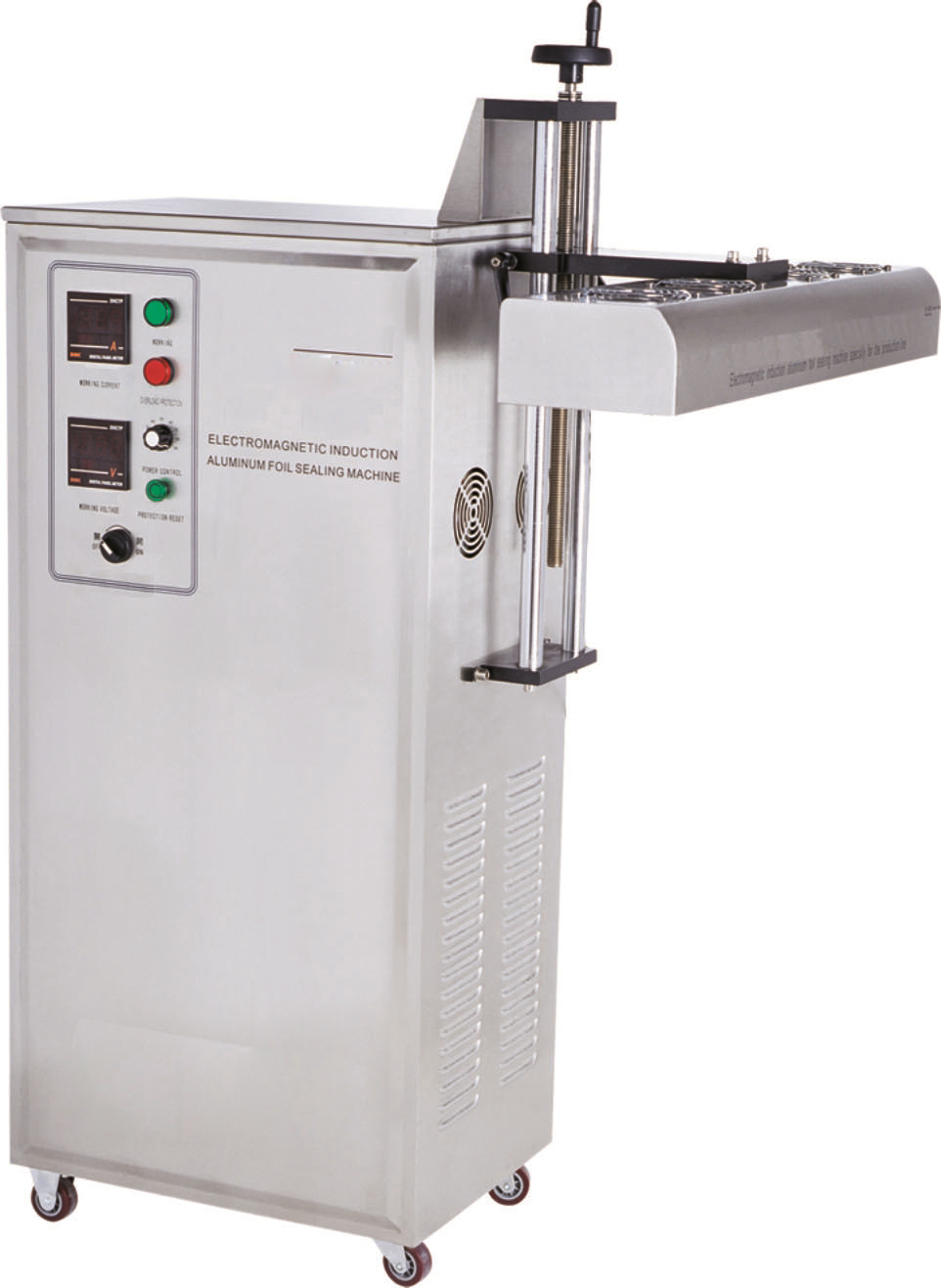

NY-2300 Induction Foil Sealing Machine

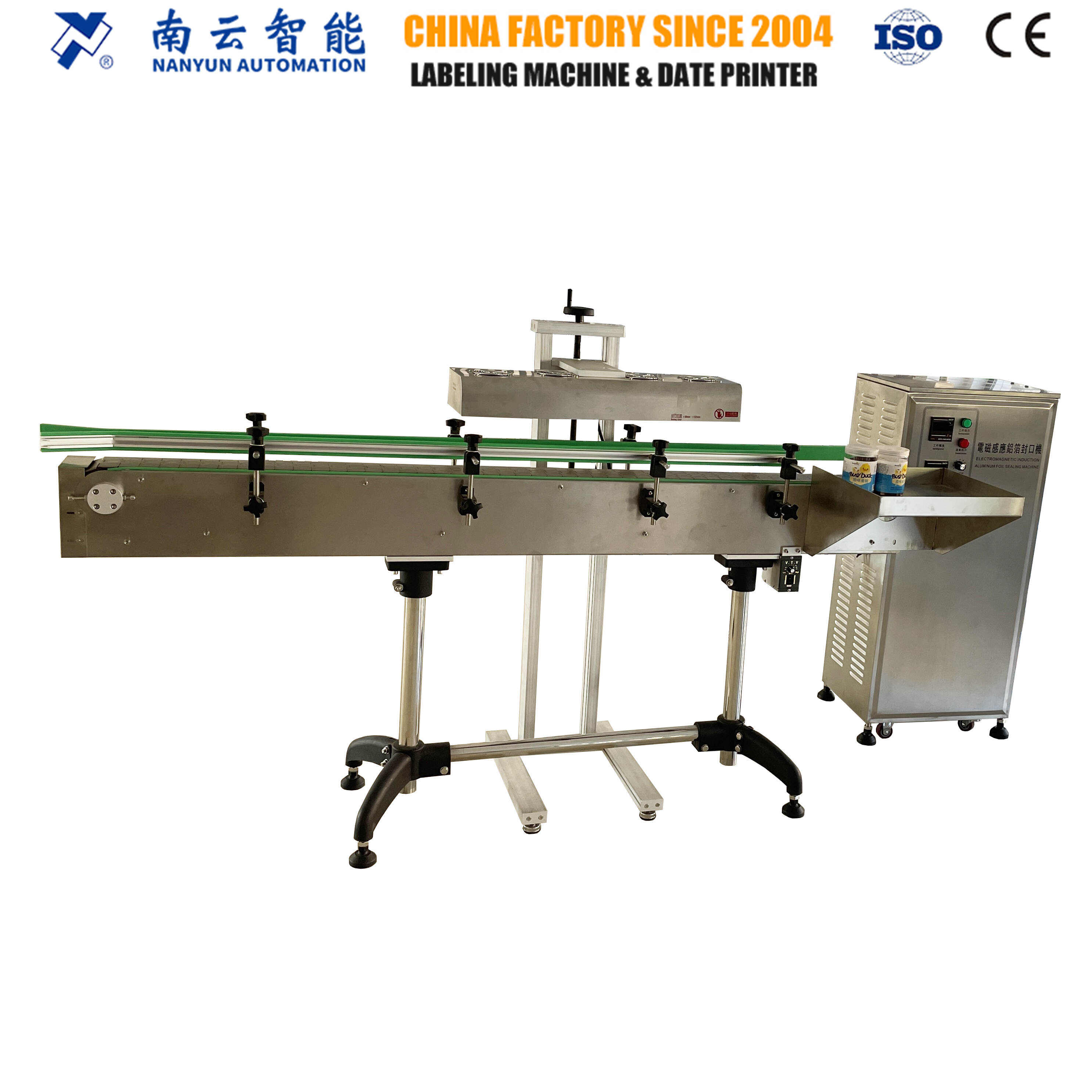

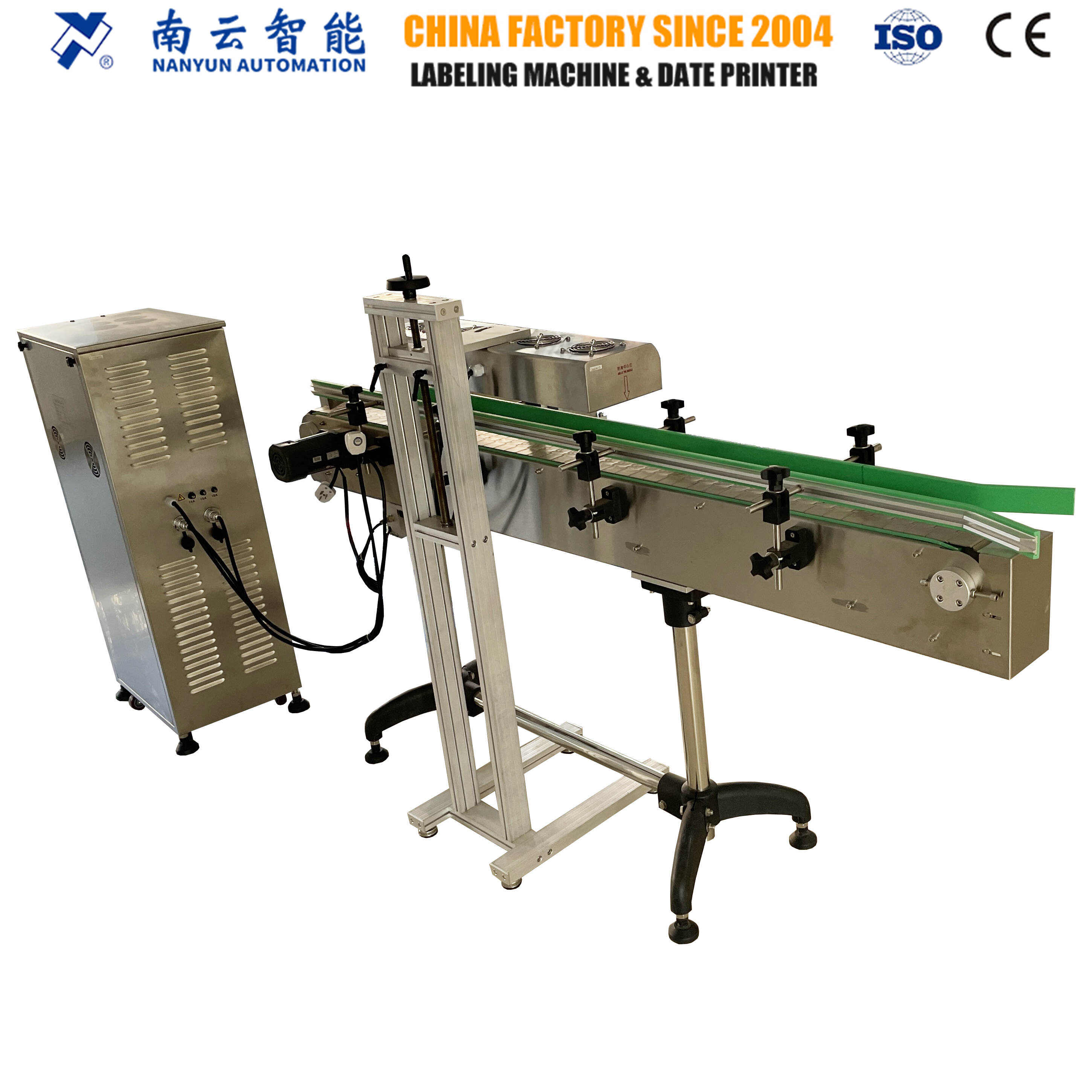

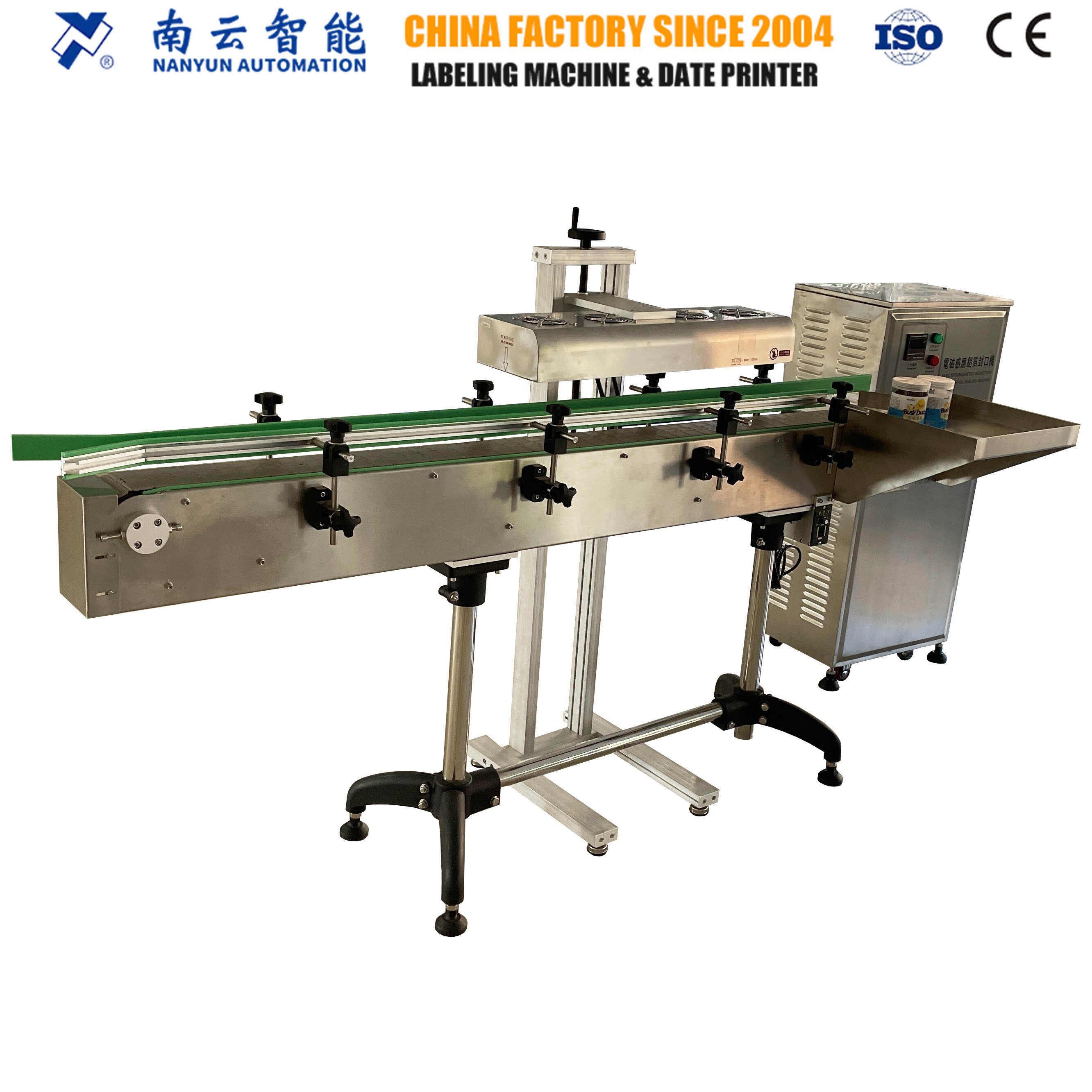

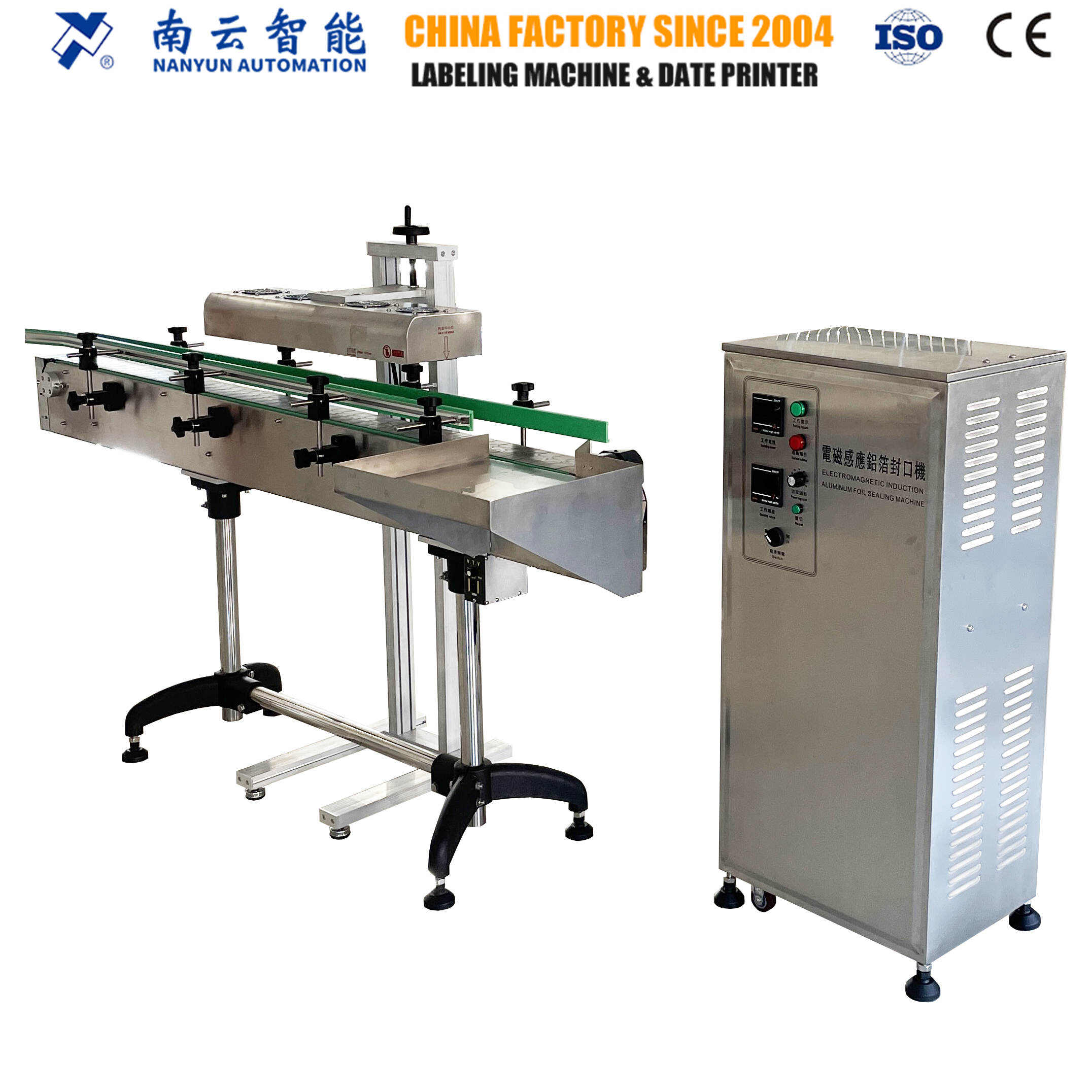

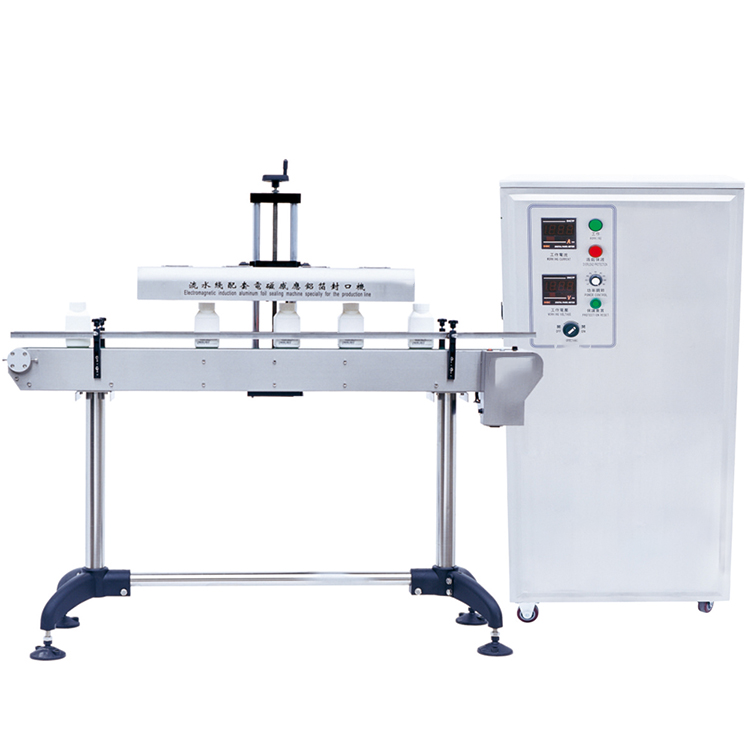

NY-2300 Induction Foil Sealing Machine with Conveyor


NY-2300 Continuous Induction Aluminum Foil Sealing Machine

Ⅰ. Application:

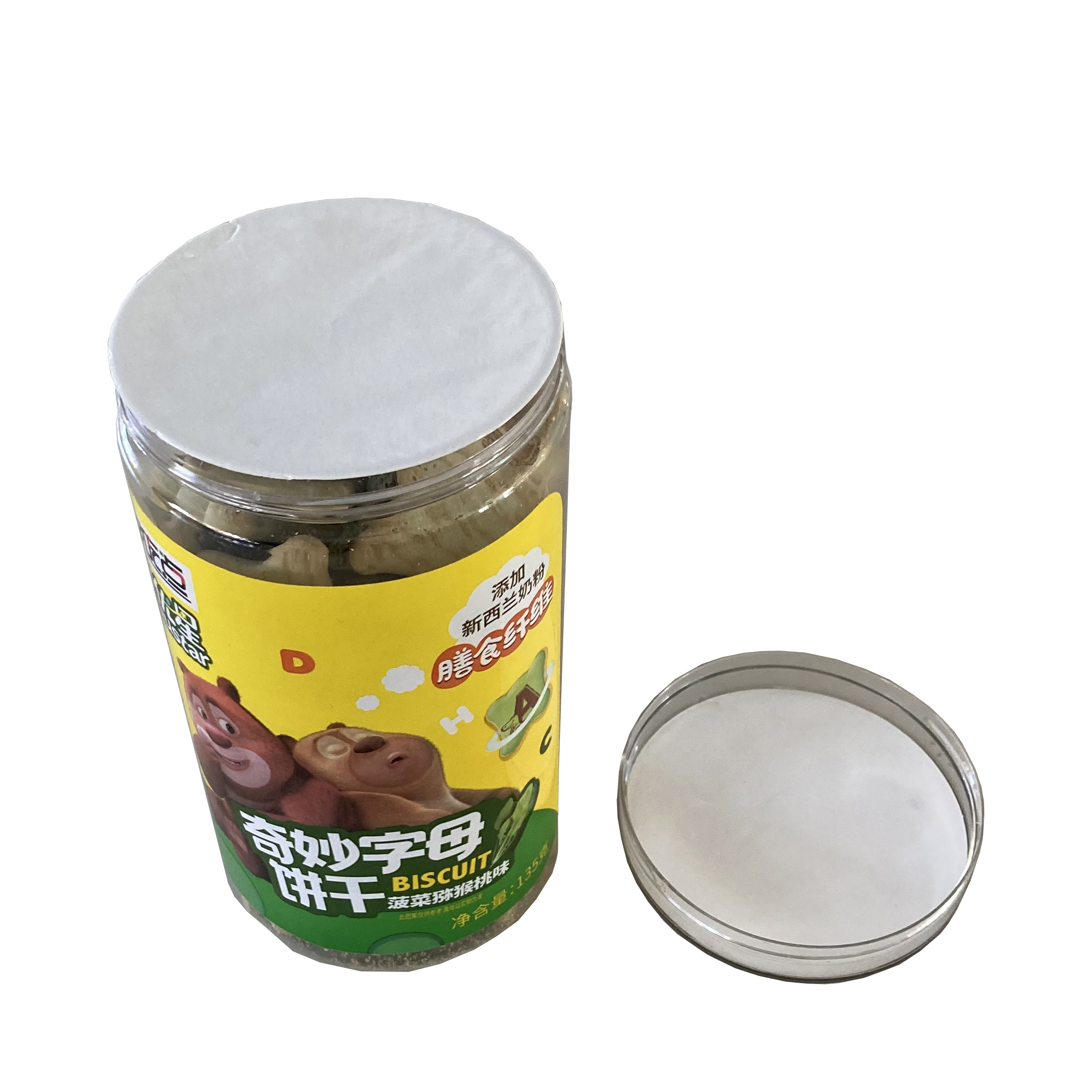

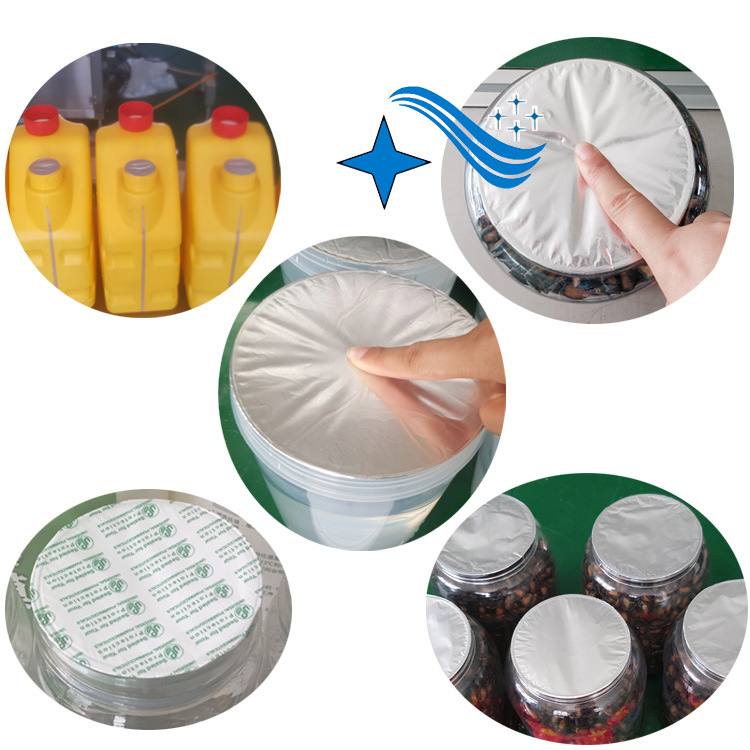

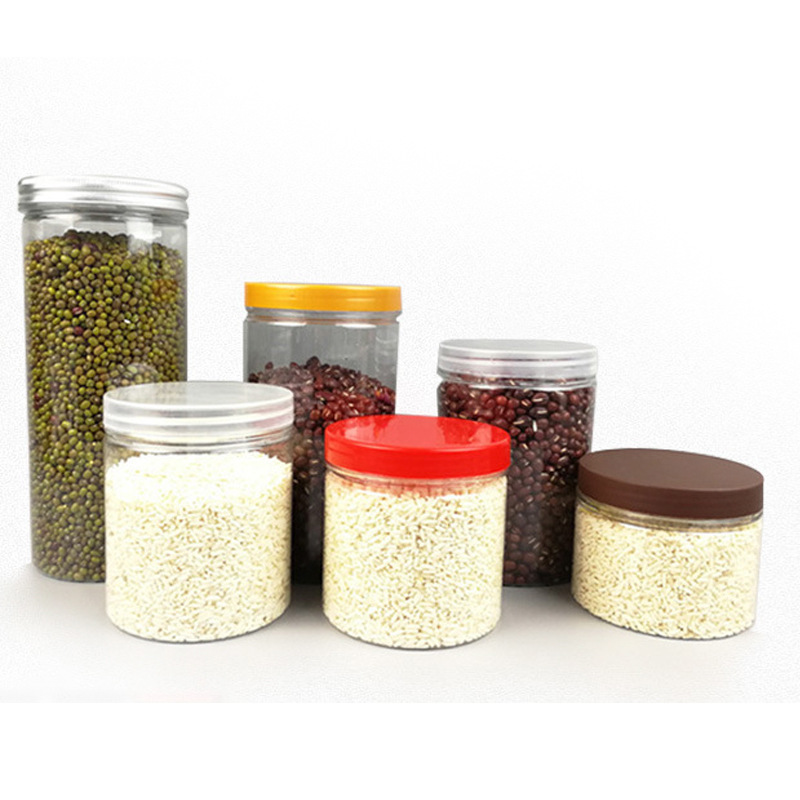

NY-2300 continuous induction aluminum foil sealing machine utilizes electromagnetic principle, producing instant high heat, which can melt and seal an aluminum foil to a bunghole. It is designed for sealing plastic or glass bottles with plastic caps like bottles, cup, jar, jam etc. The materials of bottles are available from plastic bottles such as PVC, HDPE, PE, PP, PET, PS, ABS and glass etc. It features excellent wet-proof, fungus-proof and imitation-proof and an extension of preservation cycle.
It is often be combined with other automatic production equipment such as filling machine, capping machine, labeling machine, date printer etc. Widely used in food, beverage, cosmetics, daily chemical and pharmaceutical industries.
Ⅱ. Features You Can Not Ignore:
1. Conveyor speed & sealing speed variable;
2. Easy to use, no special train on operator required;
3. High efficiency, low power consumption and long service life;
4. Height of sealing line adjustable to accept wide range of bottle heights; Electric current overload, voltage overload and output overload protection; Modular component design minimizes maintenance and increased reliability;
5. SUS304 stainless steel construction for using in harsh environment and easy for clean and maintenance;
6. Air cooling system eliminates all water cooling pipes, pumps, filters and flow switches;

Ⅲ. Other Corollary Equipment Introduction:
1. Different automation solutions can be supplied.
2. We can supply you the optional bottle unscrambling turning table and conveyors, which can be connected directly before the sealing, the operators can put the bottles on the rotary table, then the rotary table will feed the bottles to the sealing machine automatically.
3. It also can match with weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, induction sealing machine, inkjet /laser / TTO printer etc.
Remark: It can not be used for metal bottle body and glass bottle cap.
Ⅳ. Technology Data:
Seal Diameter (Optional)
φ15-60mm;  φ50-121mm
Power Supply
AC220V 50/60Hz   4500W
Sealing Speed
0~200 pcs/minute (Related to product size);
Suitable Bottle Height
30-260 mm (can be customized)
Sealing Type
Electromagnetic Induction Sealing
Cooling Method
Air cooling
Size of Main Frame(L×W×H)
Package Size(L×W×H)
Package Weight
Machine Configuration Details:

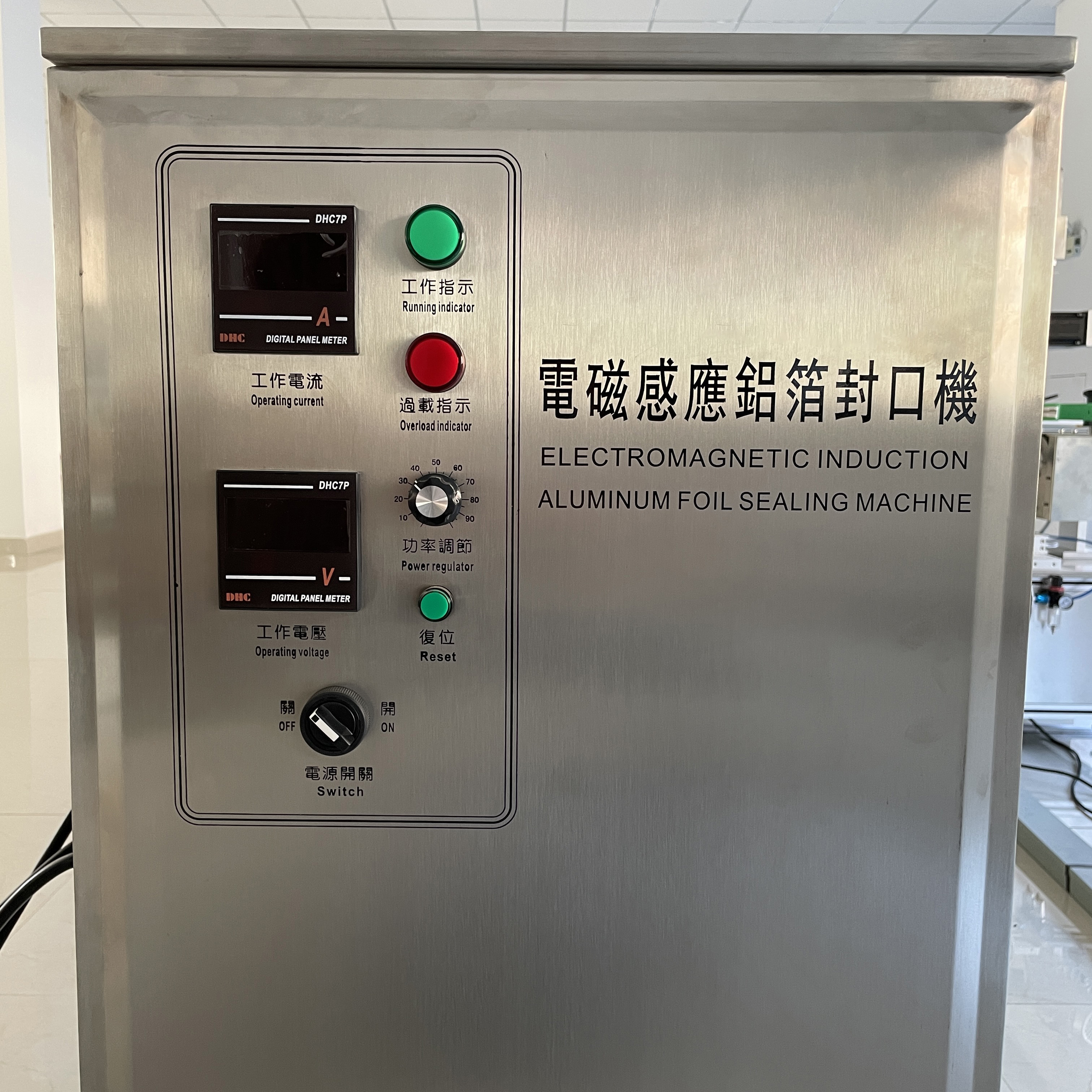

Simple Control Panel
Digital display of working voltage and current, direct and clear.
  • Easy Operation

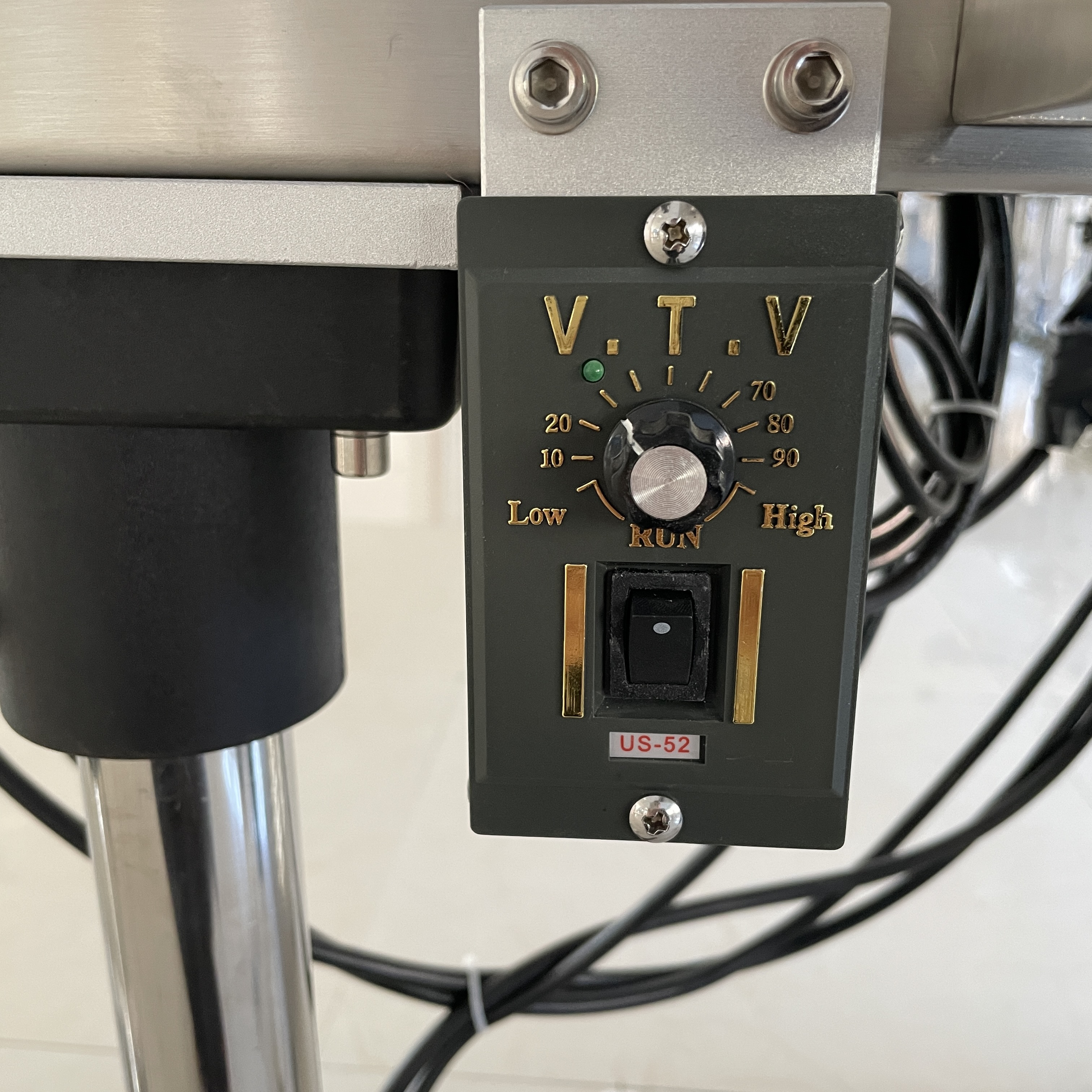

  • The power and conveying speed can be adjusted by knobs. Easy and convenient.

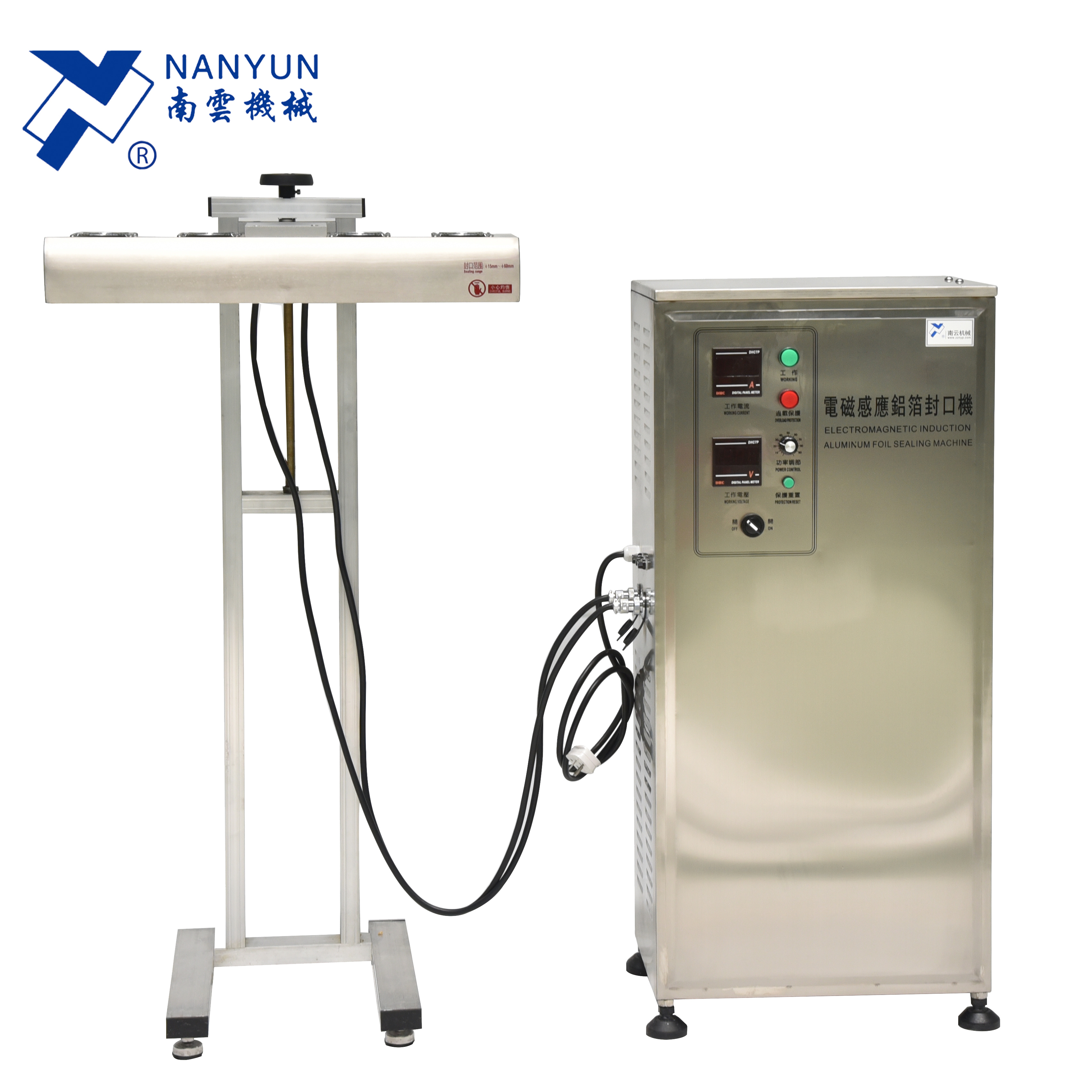

Rotary Handle
Adjust the height of sealing head through rotating the handle, make it suitable for bottles with different heights. Widen the scope of

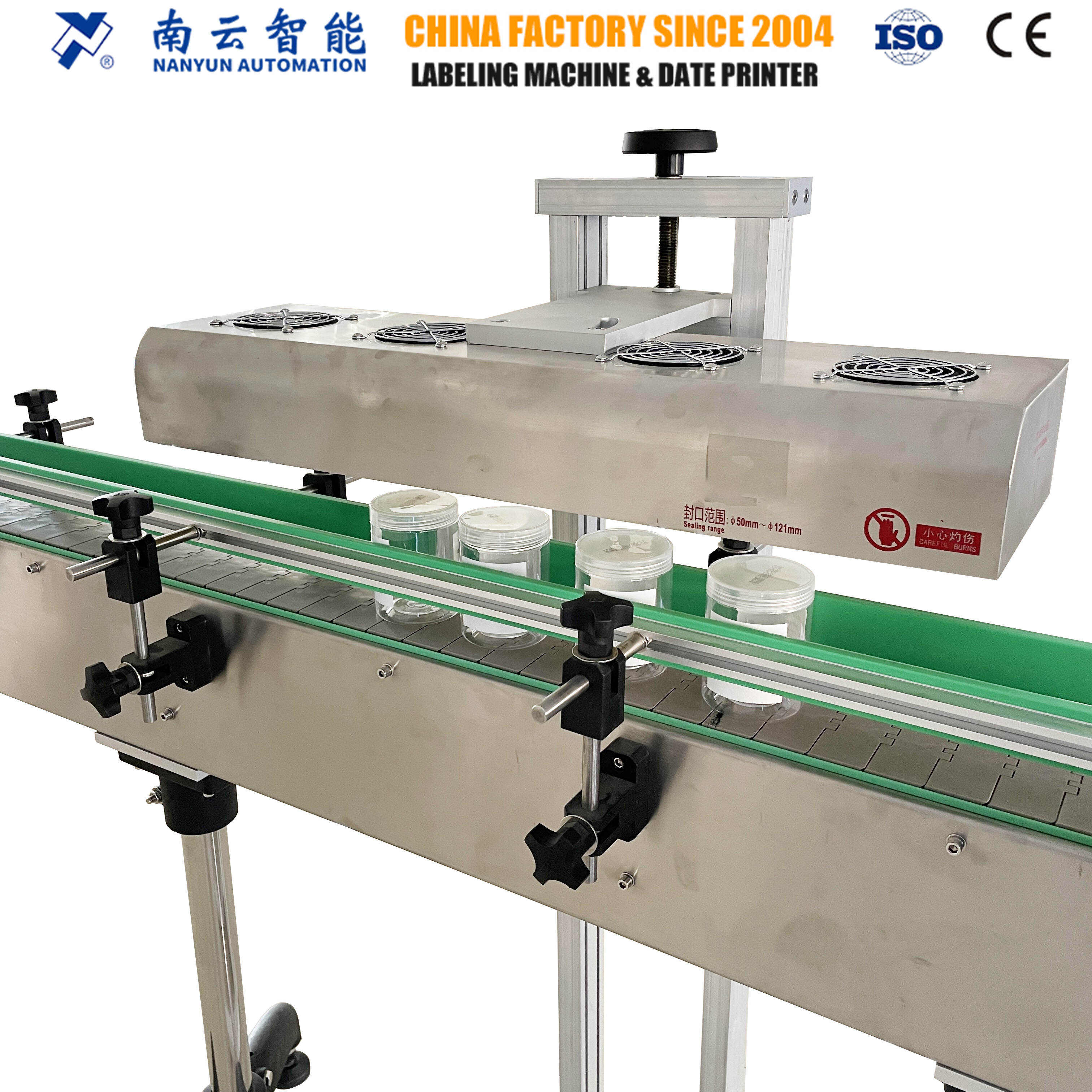

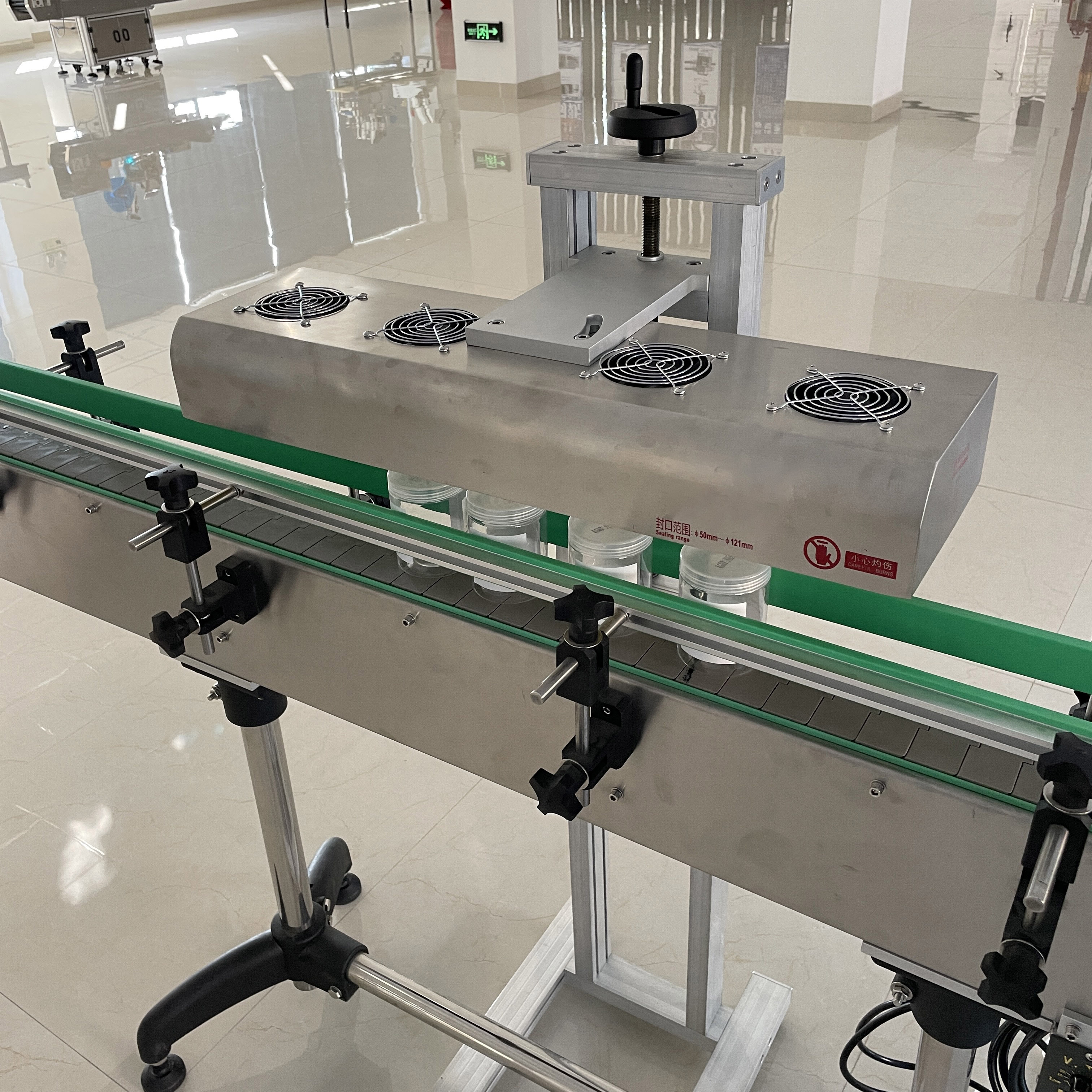

Induction Coil
With pure copper induction coil, it can heat quickly and equally, ensuring that the sealing position would be firm and beautiful. Improve production quality.

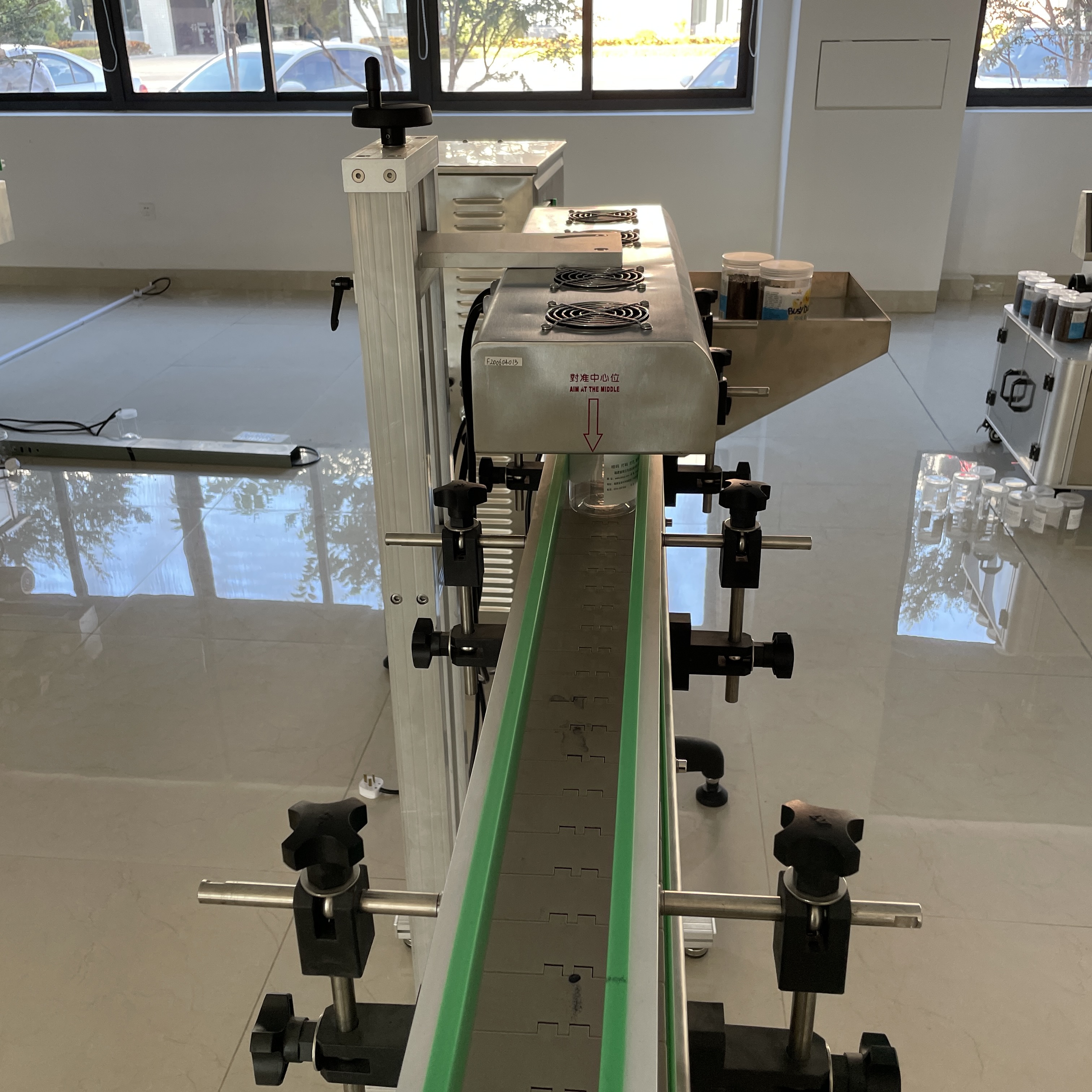

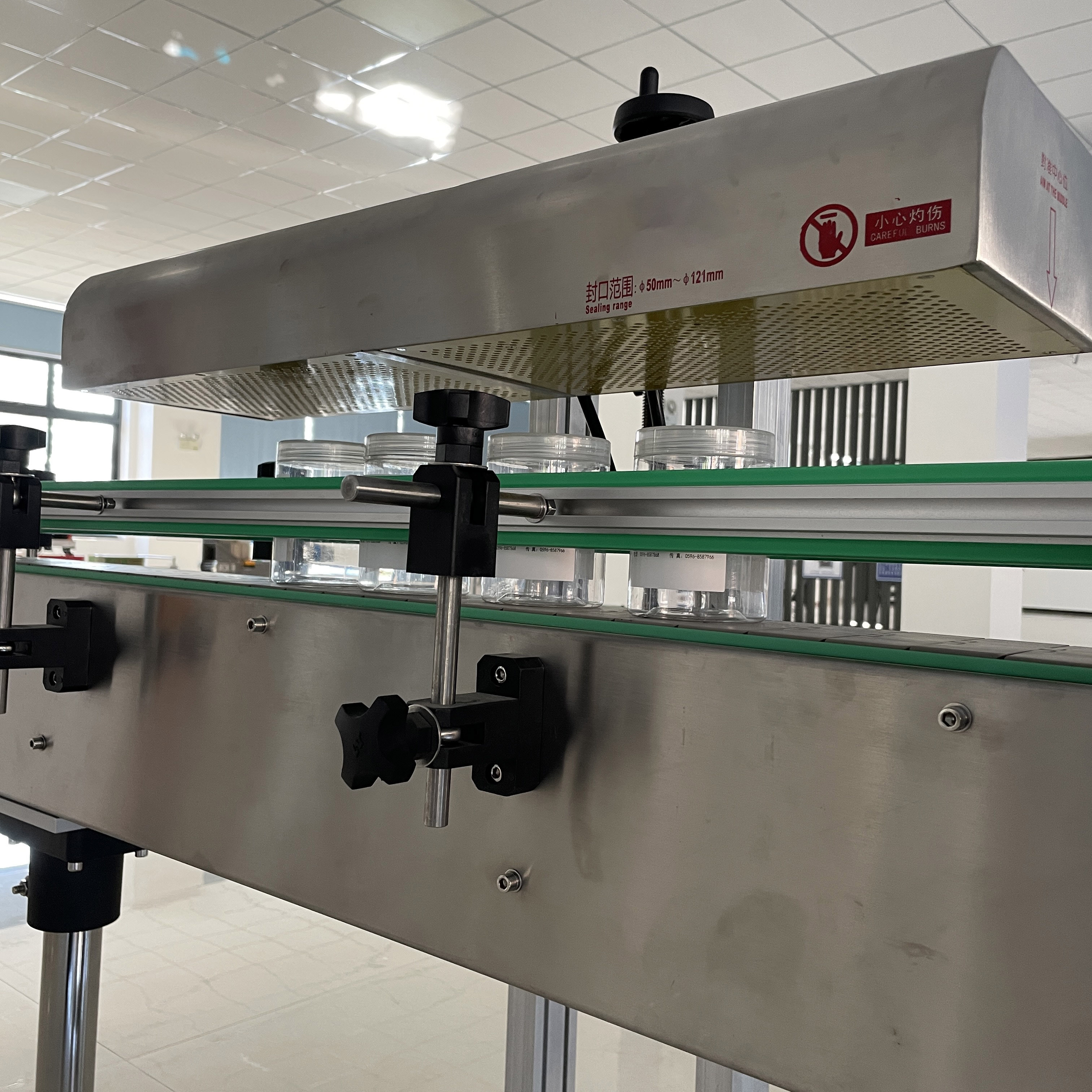

Guide Rails
It is used for guiding the bottles, make them transported stably and smoothly. The width between two rails can be adjusted based on different bottle size.

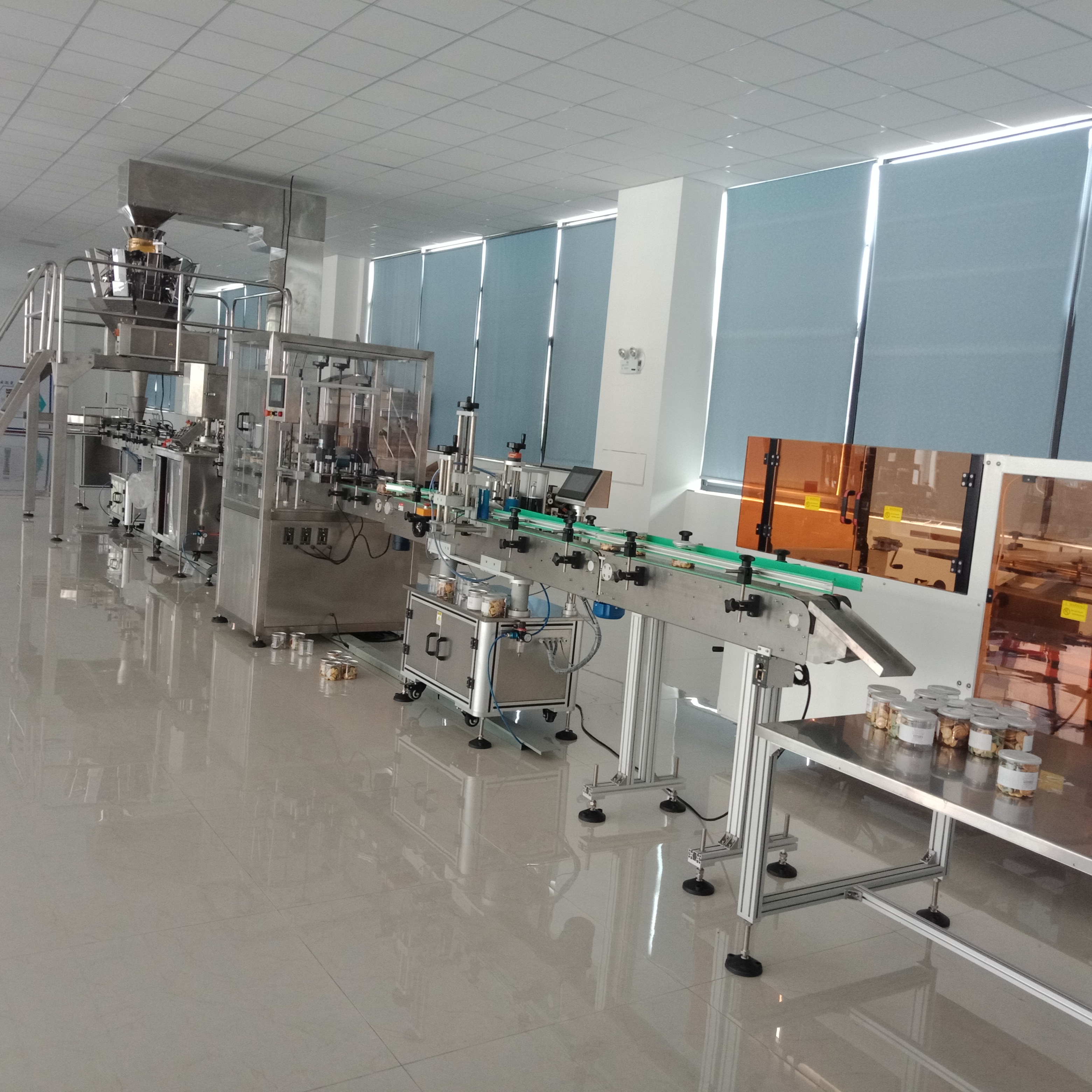

  • High Efficiency Production Line

  • High efficiency with good labeling effect, can save consumable and labor cost, so now self-adhesive labeling machine has been more and more popular in market;

  • Foil sealer often match with other machines such as bottle unscrambler, filling machine, packing machine, cap sorter, capping machine, labeling machine, cover impressing machine, weight checker,metal detector, inkjet printer etc to combine all kinds of production lines according to requirements.
